Kentix KIO3 Quick Start Manual

Extension module for system port (type a)

Download this manual

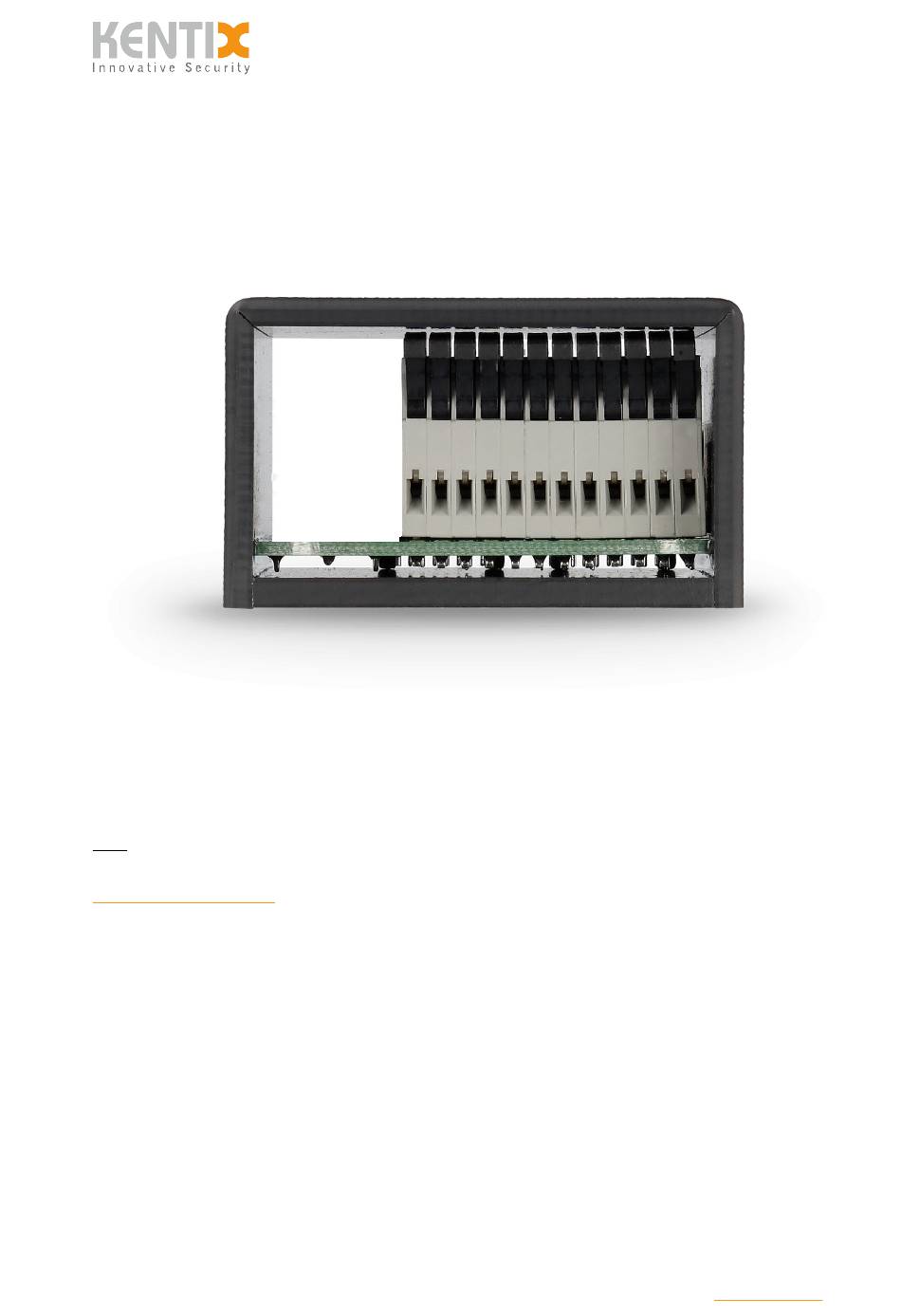

Extension module for Kentix system port (type A) – MANUAL | 1

ORDER-CODES:

KIO3

Quick Start Manual

Overview

The extension module (system port) is used for the direct extension of Kentix devices with

input/output functions, e.g. for alarm/fault messages or switching functions. The following

input/output channels are available:

– Connection of up to two external messages via potential-free contacts

– Activation or switching of up to 2 external devices via relay contacts (changeover contact)

The module is connected to the Kentix system socket (RJ45) of the respective device. The extension

module is supplied with power via the system socket of the remote station and does not require an

external power source. The cable length between the remote station and the module should not

exceed 10-20 meters. The relays are equipped with changeover contacts and can be loaded with up to

docs.kentix.com

for the

latest documentation.

Need help?

Do you have a question about the KIO3 and is the answer not in the manual?

Page 1 – Activation or switching of up to 2 external devices via relay contacts (changeover contact) The module is connected to the Kentix system socket (RJ45) of the respective device. The extension module is supplied with power via the system socket of the remote station and does not require an external power source.
Page 2 Kentix accepts no liability for damage to the equipment or components resulting from incorrect installation. No liability is accepted for incorrectly programmed units. Kentix shall not be liable in the event of malfunctions, damage to property or other damage. Use of the products, transport and storage Protect the device during transport, storage and operation from Protect moisture, dirt and damage.
Page 3 Extension module for Kentix system port (type A) – MANUAL | 3 Kentix system port (port 1, RJ45) for connection to the system port of the remote station, e.g. AlarmManager, MultiSensor (Ethernet) or AccessManager (wireless). The second socket (port 2, RJ45) serves as an output socket for forwarding the signals.
Page 4 Terminal: Relay output 1 NC (Normally Closed) Terminal: Relay output 1 NO (Normally Open) The extension module (system port) with the ORDER_CODE: KIO3 must not be used in conjunction with the system port (TYPE B). © Kentix GmbH. This file was automatically generated on 2025-01-22 14:26:10. Please visit docs.kentix.com...
