SiteManager without mobile radio (Appliance) – MANUAL | 1
Legacy product
This product is no longer available. The documentation is still available as an archive.
ORDER-CODES:
KSM-DR-1
Datasheet SiteManager

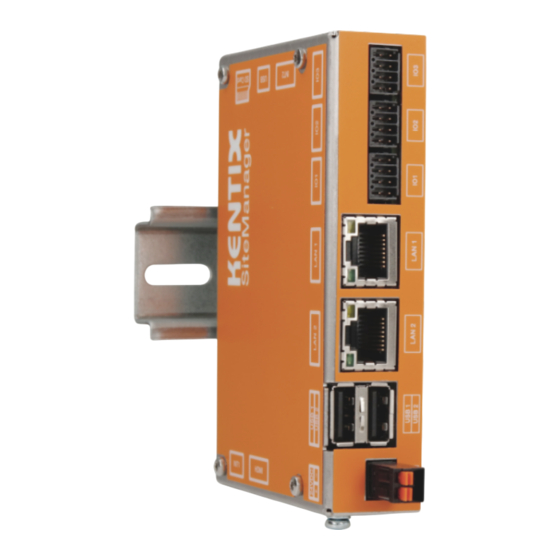

The Kentix SiteManager is the central KentixONE control unit for up to 250 devices. All devices used
for access control(SmartAccess), building security(SmartMonitoring) and IT security(SmartPDU) are
monitored by the SiteManager and their data evaluated.
It manages all master data such as users, access, alarm groups as well as devices and their sensors.
Safety instructions
Installation
Installation and commissioning may only be carried out by trained specialist personnel in accordance
© Kentix GmbH. This file was automatically generated on 2025-01-08 04:26:11. Please visit
docs.kentix.com
for the
latest documentation.
Advertisement
Related Manuals for Kentix SiteManager KSM-DR-1
Summary of Contents for Kentix SiteManager KSM-DR-1
- Page 1 ORDER-CODES: KSM-DR-1 Datasheet SiteManager The Kentix SiteManager is the central KentixONE control unit for up to 250 devices. All devices used for access control(SmartAccess), building security(SmartMonitoring) and IT security(SmartPDU) are monitored by the SiteManager and their data evaluated. It manages all master data such as users, access, alarm groups as well as devices and their sensors.
- Page 2 Kentix accepts no liability for damage to the equipment or components resulting from incorrect installation. No liability is accepted for incorrectly programmed units. Kentix shall not be liable in the event of malfunctions, damage to property or other damage. Use of the products, transport and storage Protect the device during transport, storage and operation from Protect moisture, dirt and damage.
- Page 3 SiteManager without mobile radio (Appliance) – MANUAL | 3 Front Power supply 24VDC/10Watt (plug-in power supply included) Network LAN1 (1GBit), Network LAN2 (100Mbit) IO ports (For future use) © Kentix GmbH. This file was automatically generated on 2025-01-08 04:26:11. Please visit docs.kentix.com for the latest documentation.
- Page 4 Side view with labeling of all connections and ports Side view with SD card slot DIP switch (not used) Micro SD card (recommendation SD card > 32GB) © Kentix GmbH. This file was automatically generated on 2025-01-08 04:26:11. Please visit docs.kentix.com for the latest documentation.
- Page 5 Start the device and find it in the network Establish the power supply to the device. Connect your PC and the Kentix device to the same network and adjust the PC’s network settings if necessary. The device receives an IP address via DHCP from your network. At the same time the fallback address 192.168.100.22x (see sticker on the product) is active in factory settings.
