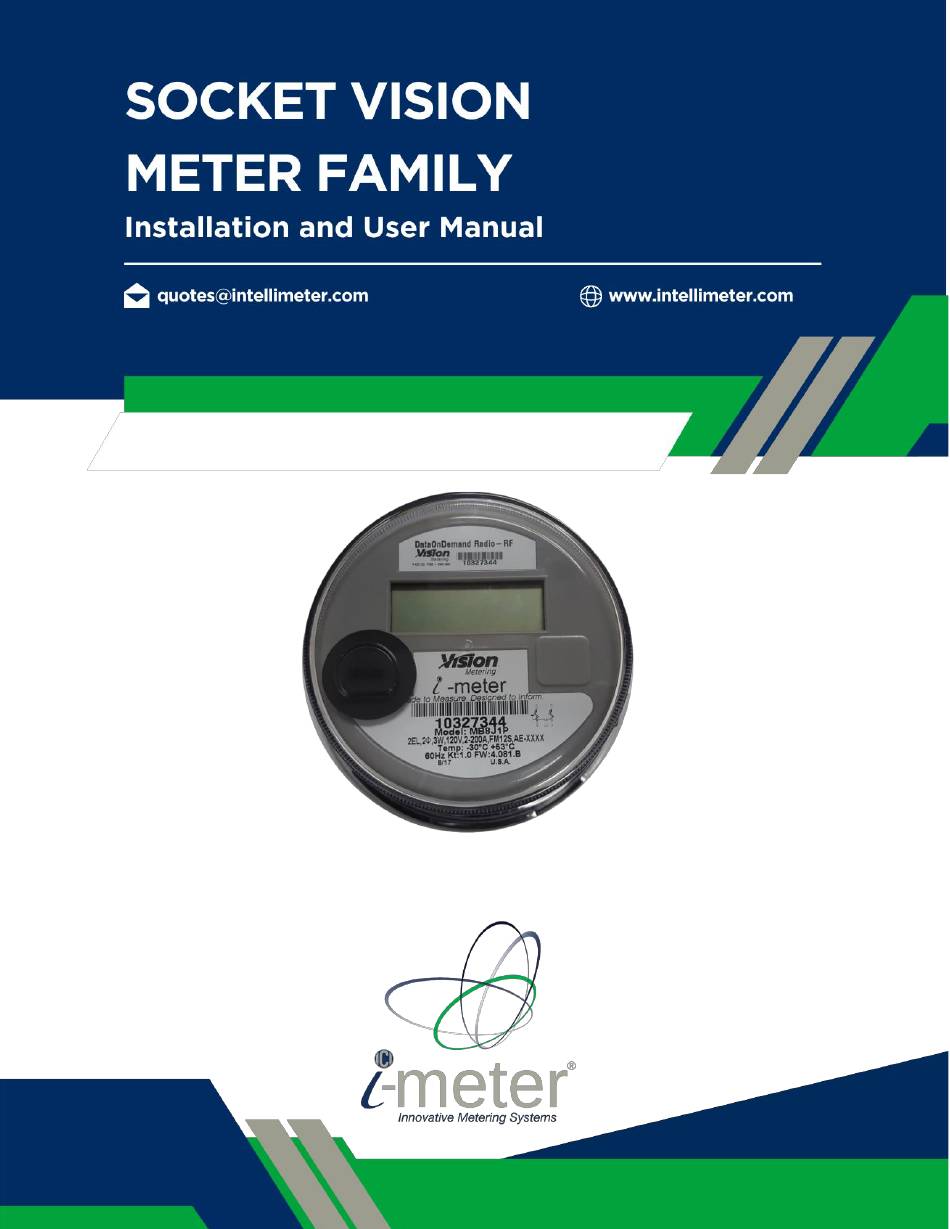

Summary of Contents for Intellimeter Vision ST
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .............................. 4 PRODUCT DESCRIPTION ..........................4 ST Single Phase Meter ..........................5 XT Poly Phase Meter ..........................5 Network Connectivity ..........................5 Temperature ............................5 Catalog Information ..........................6 INSTALLATION ............................... 6 Meter Installation ............................ 7 Service .............................. - Page 3 INSTALLATION DISCLAIMER INTELLIMETER does not accept any responsibility and will not be liable for any loss or damage or expense of any kind whatsoever and howsoever caused by improper installation of its products, be it indirect, special, incidental or consequential damages (including but not limited to damages for loss of business, loss of profits, interruption or the like).
-
Page 4: Introduction
1. INTRODUCTION The Vision Meter Family consists of a variety of single phase and poly phase meters with network connectivity options. Meters can be ordered to include either Data on Demand ™, Airpoint ™, or both hardware options. All Vision meters are programmed through the Vision 20/20 software which is included in all Vision meters. -
Page 5: St Single Phase Meter
2.1 ST Single Phase Meter The standard (ST) model meter has been designed with cost in mind. The ST single phase meter can be configured for a number of options: Available in 120, 208, 240, 480, and 600 Volts. • •... -
Page 6: Catalog Information
Both the Vision ST and XT models come in a variety of ANSI standard forms. The physical dimensions of the ST and XT models are different, as are the features on the polycarbonate cover. The XT polycarbonate cover includes a turnkey feature that enables connection with the internal button interface without removing the polycarbonate protective housing. -
Page 7: Meter Installation
3.1 Meter Installation The installation of the Vision meters should be handled by licensed professionals. The meter is plugged into the meter socket jaws, engaging the terminals and connecting the meter to the grid. Refer to Section 6 for supplementary diagrams of the common ANSI electric meter forms. -
Page 8: Service
Vision meters are durable devices, yet they should be stored with care. Extreme temperature and humidity levels should be avoided during storage. 3.4 Troubleshooting Troubleshooting of Vision Meters is accomplished by reading the error codes given by the meter. Contact Intellimeter (www.intellimeter.com) Copyright 2020 ©Vision Meter Family Manual ST... - Page 9 Table of error codes Name Code Display Blocking Cause ERR_UNPROGRAMMED Meter is not programmed or in a factory default state ERR_CONFIG Meter detected a configuration error ERR_SELFCHK Meter detected a self-check error: Meter tried to recover reading data from backup memory after power was up and did not found any good records ERR_RAMFAILURE Meter detected a RAM Memory failure...
-
Page 10: Diagrams
4. DIAGRAMS The physical dimensions of both types of meters are shown below. It may be desired to acquire more information about the different types of form standards, it is recommended to reference a reliable source for this information. Refer to meteringforlinemen.com/diagrams for sample information about ANSI form standards. -
Page 11: Xt Poly Phase Meter
4.2 XT Poly Phase Meter The XT series meters have a different layout which includes an external switch to select the settings for the meter. The XT series are readily available only in a polycarbonate housing. Copyright 2020 ©Vision Meter Family Manual ST... - Page 12 Thank you for giving us the opportunity to serve you. We appreciate your business and the confidence you have placed in us. Please visit us @ https://intellimeter.com or call us @ 905-839-9199 if you need any further assistance Copyright 2020 ©Vision Meter Family Manual ST...
