AWILCO AW1210EU-R User Manual

Pure sine wave power inverter 1000w
Hide thumbs

Advertisement

Table of Contents

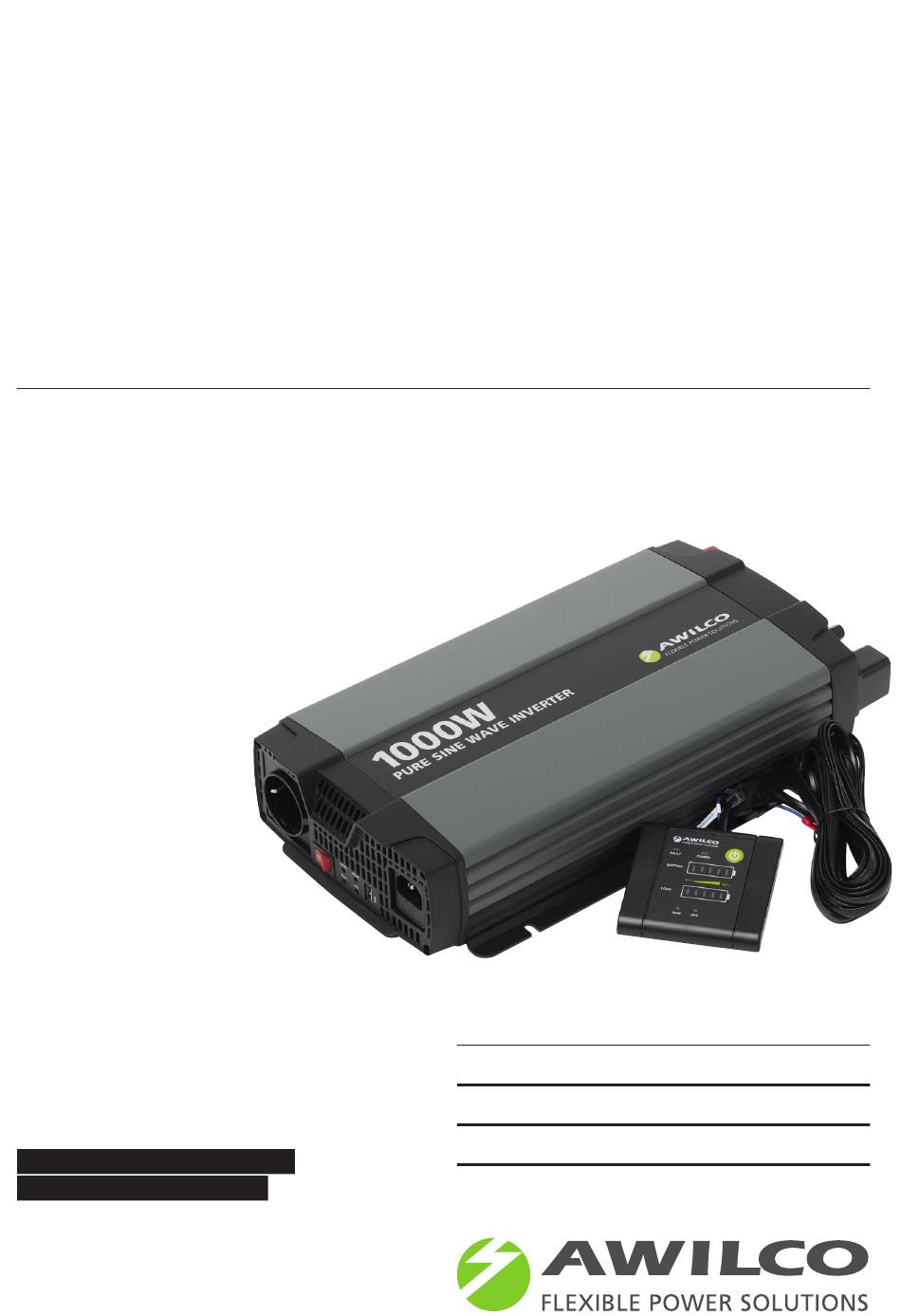

AWILCO
PURE SINE WAVE POWER INVERTER
1000W
AW1210EU-R
AW1210UK-R
USER MANUAL
Please be sure to read and save the entire
manual before using the product.
Misuse may result in damage to the unit
and/or cause harm or serious injury.
PLEASE KEEP THE MANUAL
FOR FUTURE REFERENCE
SERVICE CONTACT INFORMATION
Email:
mail@awilco.dk
Phone:
+45 56 56 54 00
Web:
awilco.dk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW1210EU-R and is the answer not in the manual?

Questions and answers

Related Manuals for AWILCO AW1210EU-R

Summary of Contents for AWILCO AW1210EU-R

  • Page 1 AWILCO PURE SINE WAVE POWER INVERTER 1000W AW1210EU-R AW1210UK-R USER MANUAL SERVICE CONTACT INFORMATION Please be sure to read and save the entire manual before using the product. Email: mail@awilco.dk Misuse may result in damage to the unit Phone: +45 56 56 54 00 and/or cause harm or serious injury.

  • Page 2: Warnings And Cautions

    Thank you for purchasing this high-frequency pure sine wave inverter. This unit converts DC power from 12V battery to 240Vac with advanced features and functions: 1. Input and output complete electrical isolation design. 2. Adopt SPWM technology, pure sine wave output. 3.

  • Page 3: Product Overview

    PRODUCT OVERVIEW DC Input Side: LOAD A: Negative Input Terminal E: Remote Port I: Solar DC Input Cables B: Positive Input Terminal F: Solar Input Ports J: Remote (Option) C: Cooling Fan G: Battery Cables (Option) D: Chassis Ground H: Protective Caps AC Output Side: K: AC Socket L: UPS Socket...

  • Page 4: Installation Steps

    INSTALLATION STEPS Ground POWER SOLAR FAULT AC transfer switch cable (not supplied) Step.1: Position screws into mounting holes to fix the inverter properly. Step.2: Use battery DC input cables to connect inverter with battery. Double check battery negative and positive terminals before connection and ensure its tightness. For safety reason, it is necessary to connect GND cable (not supplied) from inverter to vehicle chassis ground.

  • Page 5: Inverter Functions

    INVERTER FUNCTIONS Function Details ● When 10.5V to 15.5V input voltage is available: 240V Pure Sine wave Turn on the ON/OFF switch, rated 240V pure sine wave will Output output in 5 seconds. ● The inverter has built-in PWM charge controller and compatible with 15~45V, Max 20A solar panel.

  • Page 6: Power Led

    POWER & FAULT LED INDICATION LED Indicators for Operation Inverter Condition POWER LED (Green) FAULT LED (Red) Switched ON Flashes once/1s Flashes once/1s In use Light on Light off Overload Light on Flashes once/1s Switched OFF Light off Light off LED Indicators for Faults (Protection Mechanism) POWER LED...

  • Page 7: Specification

    SPECIFICATION Basic Specifications Model 30.01.1000 (PURE SINE WAVE) Power 1000W Continuous, Peak Power: 2000W DC Input 10.5-15.5Vdc AC Output 240Vac, 50Hz USB Output USB-A 5V/2A Back Drain Current Normal <1.1 A Total Harmonic Distortion <3% Efficiency >89% Working Temp -20°C ~ 45°C IP Rating IP22 Battery Type...

This manual is also suitable for:

Aw1210uk-r
