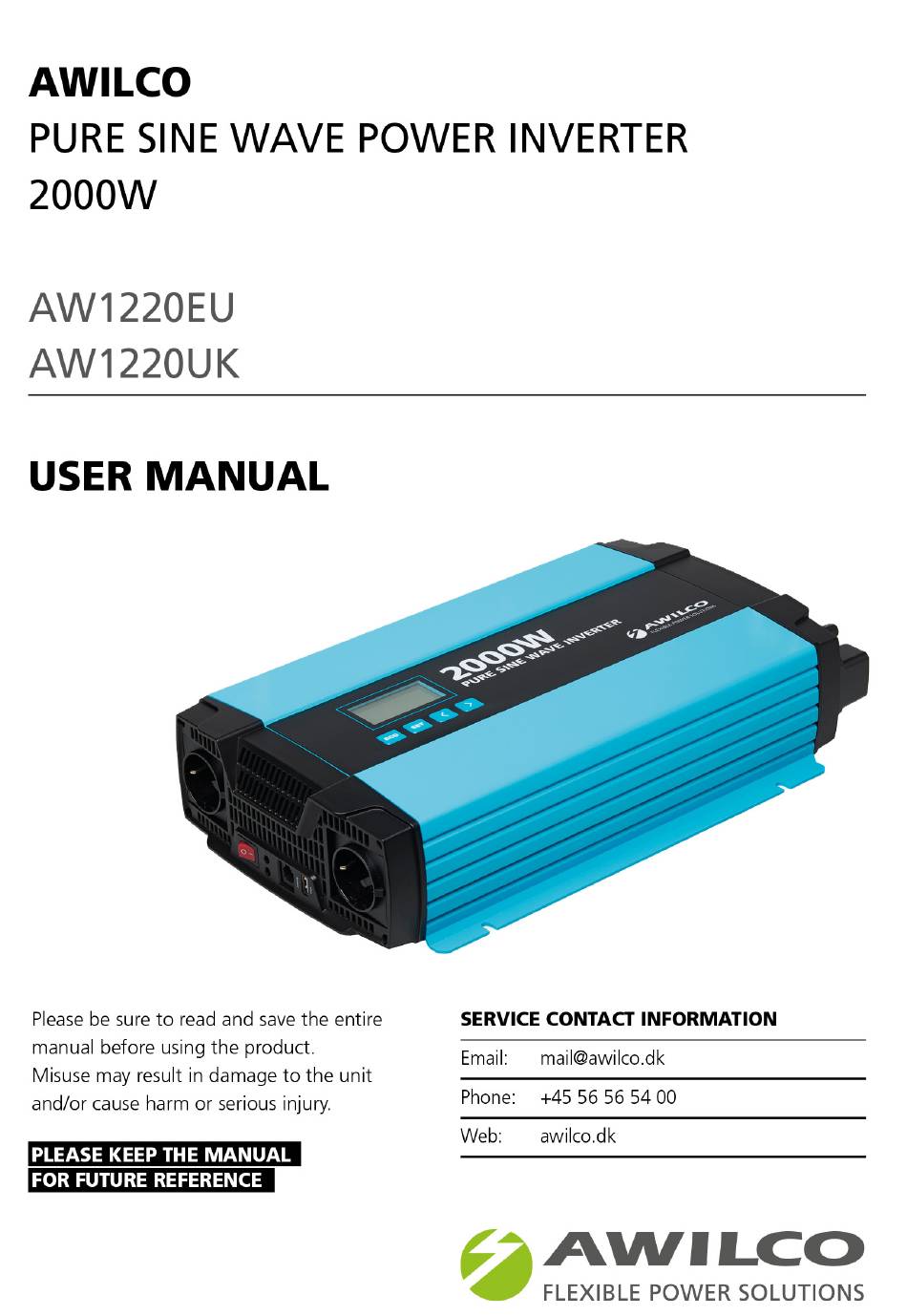

AWILCO AW1220EU User Manual

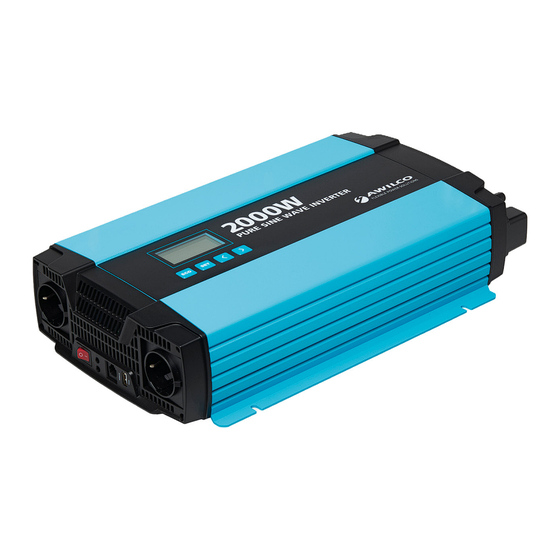

Pure sine wave power inverter 2000w
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW1220EU and is the answer not in the manual?

Questions and answers

Related Manuals for AWILCO AW1220EU

Summary of Contents for AWILCO AW1220EU

  • Page 2: Warnings And Cautions

    Thank you for purchasing this high-frequency pure sine wave inverter. This unit converts DC power from 12V battery to 220-240Vac with advanced features and functions: 1. Input and output complete electrical isolation design. 2. Adopt SPWM technology, pure sine wave output. 3.

  • Page 3: Product Overview

    PRODUCT OVERVIEW DC Input Side: LOAD A: Negative Input Terminal E: Cooling Fan 1 I:Protective Caps B: Positive Input Terminal F: Cooling Fan 2 J:Solar DC Input Cables C: Chassis Ground G: AC Transfer Switch Input K:Remote (Option) D: Solar Input Ports H: Battery Cables (Option) AC Output Side: LCD Screen &...

  • Page 4: Installation Steps

    INSTALLATION STEPS Ground Step.1: Position screws into mounting holes to fix the inverter properly. Step.2: Use battery DC input cables to connect inverter with battery. Double check battery negative and positive terminals before connection and ensure its tightness. For safety reason, it is necessary to connect GND cable (not supplied) from inverter to vehicle chassis ground.
  • Page 5 SCREEN INDICATION AND SETTING A.ECO/Solar/UPS Functions B.Setting Options C.Battery Electricity Status D.Parameters Display E.Fault Icons F.4 Buttons Control Bottom Details Press ECO button to activate or quit ECO mode. When in ECO mode, the icon “ECO” is indicated on the LCD screen. Press and hold SET button until the LCD screen indicates , then the inverter is now in the setting mode with 3 options.
  • Page 6 Setting Options The inverter has 3 options for Setting Alarm (The first setting on default)： ON/OFF Values for under-voltage protection： 10.5~11.5V, 0.5V/DIV Output voltage：220~240Vac, 5Vac/DIV Press the “ ” or “ ” button to adjust the value. After adjusting, press and hold the SET button until the “ ”...

  • Page 7: Troubleshooting

    Function Details ● ECO Mode is turned on or off by the ECO button on the inverter. In ECO mode, the icon “ECO” is indicated on the screen and inverter will check the load by the way of pulse output. ●...

  • Page 8: Specification

    SPECIFICATION Basic Specifications Model 30.01.2000 (PURE SINE WAVE) Power 2000W Continuous, Peak Power: 4000W DC Input 10.5-15.5Vdc AC Output 220-240Vac, 50Hz USB Output USB-A 5V/2A Back Drain Current Normal <1.3 A, ECO <0.2 A Total Harmonic Distortion <3% Efficiency >89% Working Temp -20 ~ 45°C IP Rating...

This manual is also suitable for:

Aw1220uk
