PORTABLE
MEDIA PLAYER
MPixx 1200 SP
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPixx 1200 SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grundig MPixx 1200 SP

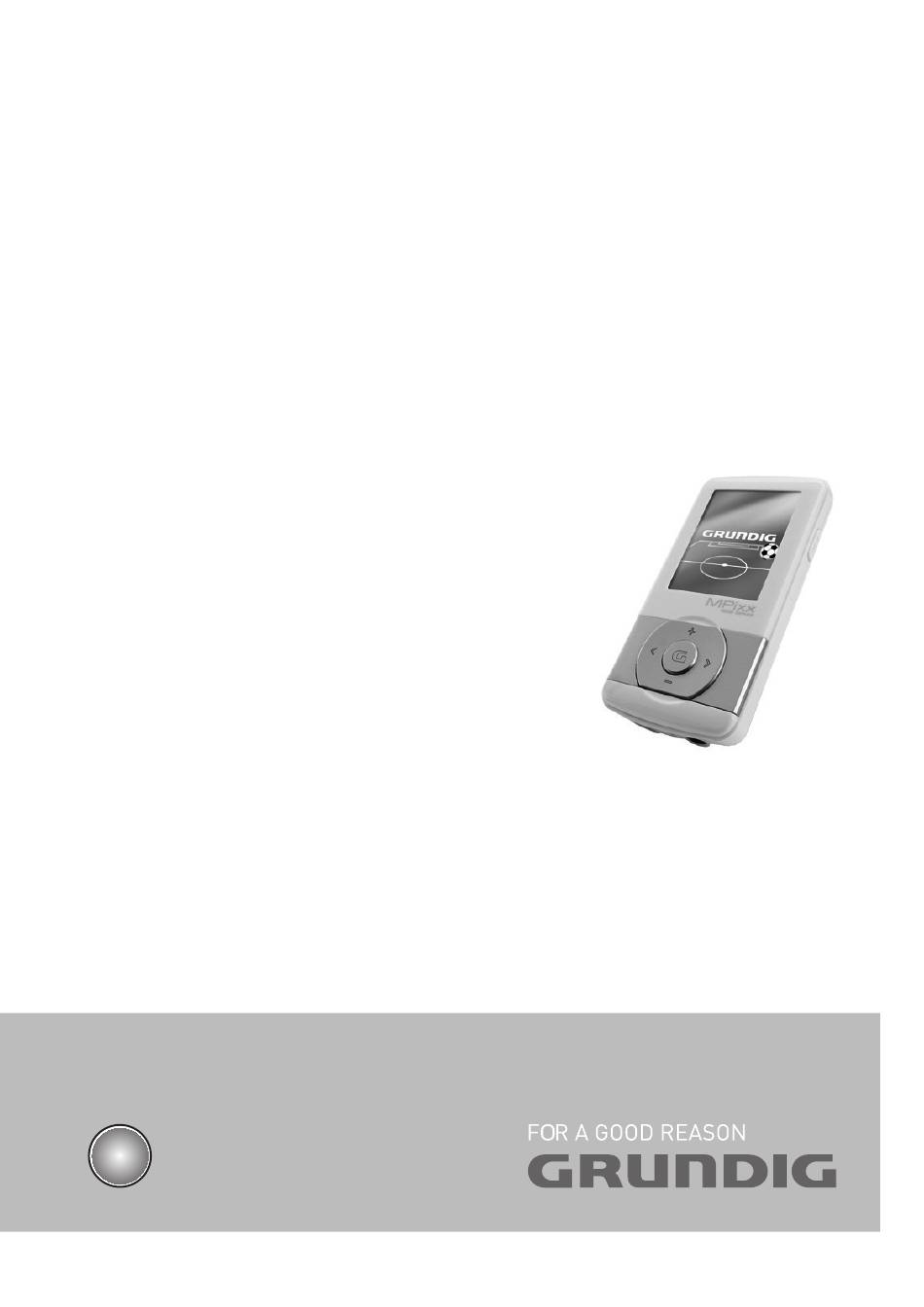

  • Page 1 PORTABLE MEDIA PLAYER MPixx 1200 SP...
  • Page 2: Table Of Contents

    CONTENTS ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3 MPixx 1200 SP 16 Text playback Supplied accessories 17 RECORDING Special features 17 Recording settings Safety 17 Voice recording 4 OVERVIEW 18 Recording from FM radio 18 Opening the internal memory Controls 19 PREFERENCES 5 OVERVIEW 19 Selecting the »Setting« menu...
  • Page 3: Mpixx 1200 Sp

    MPixx 1200 SP ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Supplied accessories Stereo earphones USB cable Brief instructions Note: The accessory components supplied can change. ■ Special features MP3/WMA/AD PCM player, player for picture and video files, voice and text files, recording device, FM radio and USB removable disc in one.
  • Page 4: Overview

    OVERVIEW ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Controls Integrated microphone for voice recor- In playback mode: selects the next track; dings. press and hold down: starts the forward search. Resets the player. RESET In the menus: to navigate to the right. Switches the player on and off. In playback mode: increases the volume.
  • Page 5: Displays In Music Playback Mode

    OVERVIEW ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Displays in music playback mode Playback mode (Normal, Repeat One, Repeat All, Random All, Folder Normal, Folder Repeat or Folder Random). Volume display. Track name, ID3 tag information, song lyrics. Level display. Bit rate. Sampling frequency. Elapsed playing time of the track. Button lock on.
  • Page 6: Main Menu Pages

    OVERVIEW ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Main menu pages Photo Music Radio Record Movie Delete Settings Text Music – music playback. Radio – FM radio reception. Record – playback of recorded files. Photo – picture playback. Movie – video playback. Delete – navigate within internal memory, delete files.
  • Page 7: Connection/Preparation

    CONNECTION/PREPARATION ------------------------------------------------------------------------------------------------------ Power supply Connecting to a computer The player operates with the integrated lithium-polymer battery Switch on the computer. 1 x 3.7 V, 310 mA. Switch off the player. Connect the USB socket on the player to the USB socket on Charging the battery the computer using the USB cable.
  • Page 8: Connecting Earphones

    CONNECTION/PREPARATION ------------------------------------------------------------------------------------------------------ Connecting earphones Plug the earphones into the » « socket on the player. Note: The earphones must always be plugged in for radio ■ mode, as the cable acts as the FM antenna. Caution: Prolonged listening at loud volumes with the earphones ■...
  • Page 9: General Functions

    GENERAL FUNCTIONS ------------------------------------------------------------------------------------------------------------------------------------------------ Menu navigation Switching on and off Press » « briefly to switch on the player. Open the main menu by pressing and holding » « down. – After a short while, the logo appears in the LC display. Select the desired operating mode, such as »Music«, with –...
  • Page 10: Music Playback

    MUSIC PLAYBACK --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Basic music playback functions Functions in the music menu Starting music playback Opening the music menu Open the main menu in the current playback mode by pres- To open the music menu in »Music« mode, briefly press sing and holding »...
  • Page 11: Setting The Playback Speed

    MUSIC PLAYBACK --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Setting the custom equalizer Setting the playback speed – You can increase or decrease the normal playback speed for Press »+« or » « to select the »Custom EQ« option and open music tracks. with » «. Select the »Play Rate«...
  • Page 12: Radio Mode

    RADIO MODE ------------------------------------------------------------------------------------------------------------------------------------------ Basic radio mode functions Tuning to radio stations... The earphones must always be plugged in for radio mode, as ... manually the cable acts as the FM antenna. The player must be in manual tuning mode. Selecting the radio input source To set the frequency you want, press »...
  • Page 13 RADIO MODE ------------------------------------------------------------------------------------------------------------------------------------------ Opening presets Preset mode must be activated. The display shows the current preset number. To select the desired preset, press » « or » « as often as necessary. Deleting individual presets Preset mode must be activated. Open the FM menu by briefly pressing »FUNC«.
  • Page 14: Audio Playback

    AUDIO PLAYBACK ----------------------------------------------------------------------------------------------------------------------- Playback of audio recordings Functions in the audio recording menu Starting playback Opening the recording menu Open the main menu in the current playback mode by pres- sing and holding » «. To open the menu when playing back a recording, briefly press »FUNC«.
  • Page 15: Picture Playback

    PICTURE PLAYBACK ------------------------------------------------------------------------------------------------------------------ Picture playback Functions in the picture menu Starting picture playback Opening the picture menu Open the main menu in the current playback mode by pres- To open the picture menu in »Photo« mode, briefly press sing and holding » «.
  • Page 16: Video Playback

    VIDEO PLAYBACK ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Basic video playback functions Playback functions Press » « to pause playback. The player supports video files in MTV format. Press » « to resume normal playback. Starting video playback Press » « to end playback. Open the main menu in the current playback mode by pres- Selecting video files sing and holding »...
  • Page 17: Recording

    RECORDING ----------------------------------------------------------------------------------------------------------------------------------------------- Recording settings Voice recording Selecting settings Starting voice recording Open the main menu in the current playback mode by pres- Open the main menu in the current playback mode by pres- sing and holding » «. sing and holding » «.
  • Page 18: Recording From Fm Radio

    RECORDING ----------------------------------------------------------------------------------------------------------------------------------------------- Recording from FM radio Notes: If »Device Full« appears in the display while it is recor- ■ ding, the flash memory is full. The recording then stops Starting FM recording and the file is saved automatically. No more recordings Select the desired radio station in »Radio«...
  • Page 19: Preferences

    PREFERENCES ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Selecting the »Setting« menu – If you confirm »Yes«, the player remains switched on du- ring playback. In all other modes, it switches itself off after Open the main menu in the current playback mode by pres- the set time if no key is pressed. sing and holding »...
  • Page 20: System Tools And Settings

    PREFERENCES ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- System tools and settings Formatting the player Before formatting, make a backup of all the data on the PC, as Selecting the »Sys Tools« menu otherwise the data may be lost. – In the »Sys Tool« menu, press »+« or » «...
  • Page 21: Switching Between Internal And External Memory

    PREFERENCES ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Switching between internal and Deleting the contents of the internal memory external memory – In the »Sys Tool« menu, press »+« or » « to select the »De- – In the »Settings« menu, press »+« or » « to select the »Sto- lete all«...
  • Page 22: Operating With A Computer

    DAT, RMVB, MPG, MPEG, MP4,ASF, VMV, MKV) into MTV format using the “MTV Video Converter” transcoder software Connecting to a computer on the internal memory of the player or on www.grundig.com. Copy the “Video Converter” program to your computer’s Switch on the computer.
  • Page 23: Disconnecting From The Computer

    OPERATING WITH A COMPUTER ----------------------------------------------------------------------------------------- Disconnecting from the computer If there is no data transfer in progress, you can disconnect the player from the computer. Before you disconnect the player’s cable connection to the computer, you must remove the player from the Windows desktop by following the Windows instructions for “Removing hardware”.
  • Page 24: Information

    INFORMATION ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Technical data Power supply Rechargeable battery: 1 x 3.7 V lithium polymer 310 mA This product fulfils the European directives Output 2004/108/EC. 2 x 5 mW/32 Ohm (earphones) The type plate is located on the back of the de- Noise voltage ratio vice.
  • Page 25 72011 904 6000 11/48...
