- Page 1 416 HD video assist for Arri 416 User Manual with Mk3 software 17.04.2022 INDIECAM GmbH Seidengasse 26/4-5 1070 Vienna – Austria www.indiecam.com...
-
Page 2: Table Of Contents
SDI2 Mode ................... 18 LUT ....................18 Image Flip ..................19 REC-Indicator ................22 Read Settings ................22 ........................23 Timecode Trigger ..............23 Timecode Footage Counter (SDI) ..........23 1.10 Exposure Shutter-Compensation ........23 1.11 Info ....................24 indieASSIST 416 user manual... -
Page 3: Important Safety Instructions
Please always follow the instructions to help ensure against injury to yourself and damage to the system or other objects. Do not operate the system in high humidity areas or expose it to water or moisture. indieASSIST 416 user manual... -
Page 4: Disclaimer
Operate the system using only the type of power source indicated in the manual. Before using the indieASSIST 416 be sure to read and understand all relevant instructions. If there are any questions please contact Indiecam for technical support at office@indiecam.com. -
Page 5: Introduction

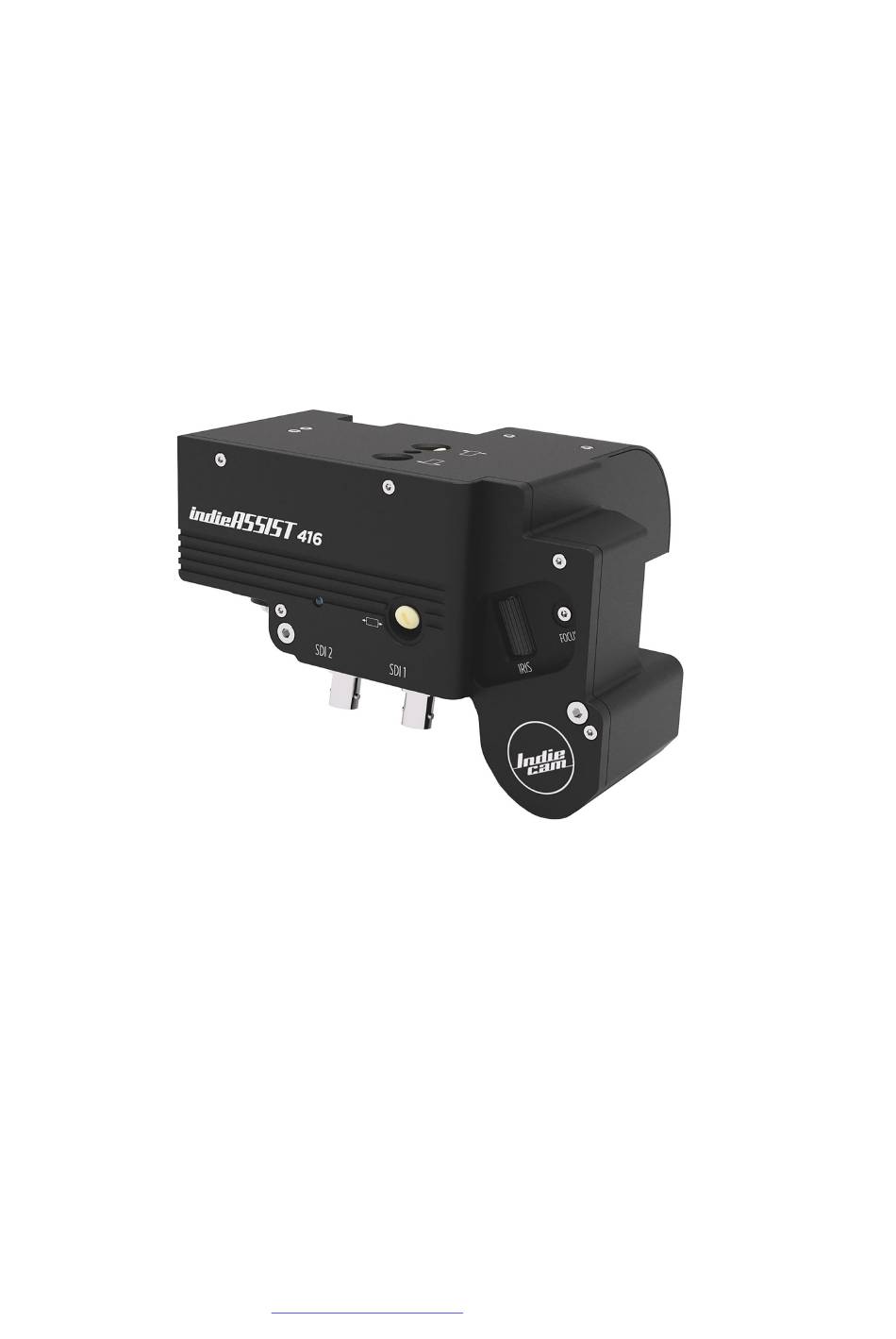

Introduction This manual gives an overview of the indieASSIST 416 . indieASSIST 416 is a new standard HD video assist for Arri 416 Super16mm film cameras. It provides exceptional image quality for all crew on set, allowing to judge images far better than before. -
Page 6: Technical Data
Image Processing Features White balance presettings Automatic and manual exposure control Flicker free Video Output YUV 4:2:2, 10 bit o 1080p23.98 o 1080p24 o 1080p25 o 1080p29.97 o 1080p30 System Functions Auto start with last settings indieASSIST 416 user manual... - Page 7 Auto exposure There is no overlay function of internal camera information, such as: FPS, shutter angle, remain footage. This is only possible with the additional Overlay box that will be ready for delivery in November 2021. indieASSIST 416 user manual...
-
Page 8: Connectors
Connectors indieASSIST 416 has 4 connectors at the bottom side. SDI BNC outputs The output is HDSDI with 4:2:2 colour sampling. The HD link speed is selectable between 23.98, 24, 25, 29.97 and 30 fps. The mode is progressive. The two HDBNC connectors can output different LUTs. - Page 9 416 has these features at the right hand side. Focus The focus of the indieASSIST 416 can be mechanically adjusted by turning the focus screw, using a hex key. Iris Only a small portion of the light, which passes through the film camera’s lens, reaches the CMOS chip of the video assist as the...
- Page 10 416 has the menu display at the rear side. On/Off switch The indieASSIST 416 can be switched on and off independently from the film camera, as long as the film camera has power. Turning off the Arri 416 will also shut down the video assist.
-
Page 11: Optical System
Therefore, screw work as a Y adjustment as well as an adjustment for rotation. indieASSIST 416 user manual... -
Page 12: Operation
Operation Setting up the HD video assist To install the indieASSIST 416 onto the Arri 416, first remove the handle, any accessories like the LWS-5 and the original IVS or any cover plate, after loosening the three captive screws with a 3mm hex key. One on the top of the IVS and two on the side. - Page 13 For operation, only the power must be on and one SDI output connected. The indieASSIST 416 will automatically start with its last configuration. If the status light at the back blinks green it’s currently loading. If it’s blinking blue it’s ready and all settings are loaded.
-
Page 14: Menu Navigation
Return to previous menu by pressing the BACK button. HOME Menu In the home-menu you can select the following settings: Auto Exposure White balance SDI2 Mode Image Flip Saturation Brightness Contrast Denoise Detail Framelines Settings Info indieASSIST 416 user manual... -
Page 15: Auto-Exposure
Select ISO with the SELECT knob and confirm by pressing the SELECT knob. You can choose from the following options: 1000 1250 1600 2000 2500 3200 4000 5000 6400 8000 10000 12800 Be aware that the ISO can only be changed when Auto- Exposure is disabled. indieASSIST 416 user manual... -
Page 16: Fps
Select FPS with the SELECT knob and confirm by pressing the SELECT knob. You can choose from the following options: 23.98p 29.97p Adjust the fps of the indieASSIST 416 to the fps of the Arri 416. 1.3.1 Auto-FPS when you select „Auto“ in the FPS menu, the indieASSIST 416 will slave to the FPS setting of the indieASSIST 416. - Page 17 Select RGB Gain manually Auto WB: Turn the Auto white balance off or change the speed to slow, medium or fast One shot 2200K 2700K 3200K 3700K 4000 4300K 5000K 5600K 6200K 6500K R/G/B Auto white gain balance indieASSIST 416 user manual...
-
Page 18: Sdi2 Mode
SELECT knob. You can choose between 2 different LUTs. LUT 1 is REC709 and LUT 2 is a low contrast LUT with higher latitude that displays the entire dynamic range of the sensor. Different LUTs can be selected for the two SDI outputs. indieASSIST 416 user manual... -
Page 19: Image Flip
Select Saturation with the SELECT knob and confirm by pressing the SELECT knob. The white mark on the horizontal bar is what you want to select. Saturation can be set in steps of 0.008 from 0.000 to 1.992. indieASSIST 416 user manual... - Page 20 Denoise can be set from 0 to 65. Detail Select Detail with the SELECT knob and confirm by pressing the SELECT knob. The white mark on the horizontal bar is what you want to select. Detail can be set from 0 to 65. indieASSIST 416 user manual...
- Page 21 In the Vertical Lines sub menu you have the following options: Left Adj. (adjust from 0 to 1920 pixel) Right Adj. (adjust from 0 to 1920 pixel) The CenterMark can be disabled (Off) and enabled (On). indieASSIST 416 user manual...
-
Page 22: Rec-Indicator
Loads the settings that were last saved with “Save Settgs”. Load preset o You can load up to 5 different presets. Read Settings This function reads out the current settings of the indieASSIST 416 and diplays them on the screen. This function indieASSIST 416 user manual... -
Page 23: Timecode Trigger
Timecode Trigger In the settings menu you can activate „timecode trigger“. Now, SDI timecode from the indieASSIST 416 will only run when the Arri416 starts to run. This way, you can automatically start and stop the recording of a compatible recorder, which has the option of triggering recording by timecode. -
Page 24: Info
1.11 Info The Info-Menu displays • Firmware version • Serial number • HW-ID (needed for unlocking FW-upgrades) indieASSIST 416 user manual...
