sol-ark SK140-0026-004 Integration Manual

Battery low voltage 48v – residential
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

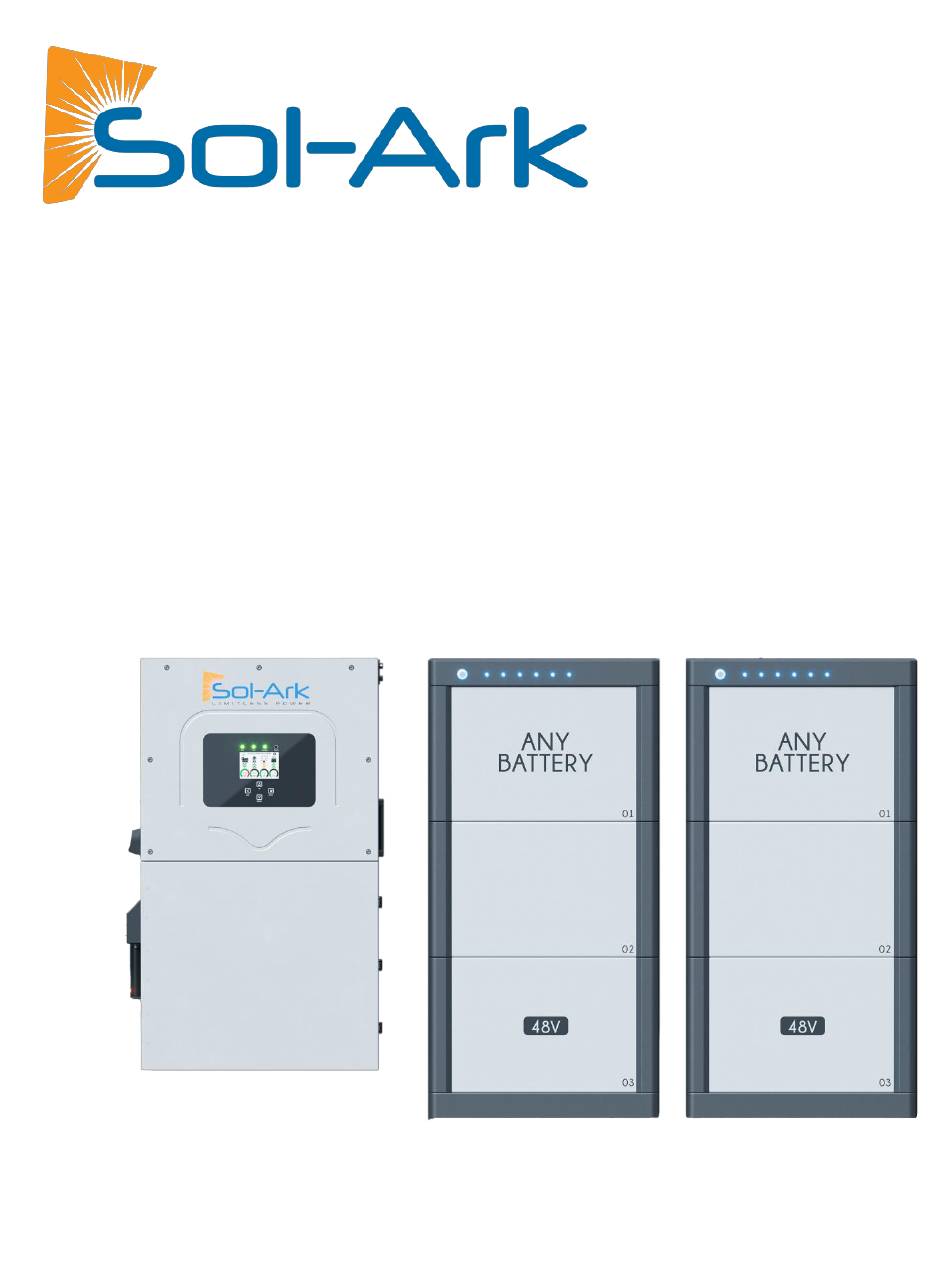

BATTERY INTEGRATION GUIDE
LOW VOLTAGE 48V – RESIDENTIAL
SK140-0026-004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK140-0026-004 and is the answer not in the manual?

Questions and answers

Related Manuals for sol-ark SK140-0026-004

Summary of Contents for sol-ark SK140-0026-004

  • Page 1 BATTERY INTEGRATION GUIDE LOW VOLTAGE 48V – RESIDENTIAL SK140-0026-004...
  • Page 2 Disclaimer This Battery Integration Guide offers general information on configuring various lithium batteries to operate seamlessly with Sol-Ark hybrid inverter products. Please note that in-depth configurations, step by step instructions, troubleshooting, and verification of operational parameters are outside the scope of this document. Be sure to follow the comprehensive technical documentation from the battery manufacturer for detailed specifications and recommended settings for optimal performance and safety.

  • Page 3: Table Of Contents

    Volthium Energy – 51.2-100-R-H ..........................32 Proven Storage Partner ................. 34 POWERSYNC – LFP3250-LV480100SP ......................35 This document covers battery integration with Sol-Ark’s low-voltage hybrid inverters. For Modbus RS-485 communication reliability, update to the latest firmware version, with C 1.4.3.F or greater.
  • Page 4 Copyright © 2025 Sol-Ark, LLC...

  • Page 5: Sol-Ark's Battery Partners

    Sol-Ark’s Battery Partners Sol-Ark has a history of working with many battery companies within the residential market segment. This guide lists the battery companies with whom Sol-Ark has a partnership, though Sol-Ark inverters are battery agnostic and can work with any 48V battery.
  • Page 6 They are well-known suppliers, broadly accessible to installers, and they provide reputable products and domestic customer support. • Though Sol-Ark has experience collaborating with this partner, we have not completed a formal process or service level agreement that would ensure ongoing compatibility or product compliance to safety and regulatory standards.

  • Page 7: General Hardware Configuration

    General Hardware Configuration The outdoor-rated systems and Sol-Ark 15K inverters have a “Modbus RS-485” port, which is not for battery communications. Sol-Ark 15K-2P-N The Sol-Ark 15K-2P-N inverter communicates with the battery through a single RJ45 port labeled “Battery CANBus”. This port combines the Modbus and CANBus pin configurations shown below.
  • Page 8 CANBus TX B- TX A+ (either orange or brown) (either orange or brown) TX A+ TX B- GND (either 3 or 6) GND (either 3 or 6) TX A+ TX B- TX B- TX A+ Copyright © 2025 Sol-Ark, LLC...
  • Page 9 Modbus and CANBus pin configurations shown below. Both “Modbus RS485” and “Battery CANBus” ports can do Modbus communication. The diagram shows the communication board inside the wiring area of Sol-Ark 12K / 8K / 5K inverters. Note that only the “Battery CANBus” port is used for battery communications.
  • Page 10 Sol-Ark 12K Legacy (Indoor) The Sol-Ark 12K Indoor can communicate through two RJ-45 ports labeled “CAN” and “RS-485”. Battery communication is established through CANBus or Modbus communication protocols using the “CAN” and “RS-458” ports respectively The diagram shows the communication board inside the 12K Indoor inverter wiring area.
  • Page 11 Sol-Ark 8K Legacy (Indoor) The Sol-Ark 8K Indoor can communicate through two RJ-45 ports labeled “RJ45_485” and “RJ45_CAN”. Battery communication is established through CANBus or Modbus communication protocols through the “RJ45_485” and “RJ45_CAN” ports respectively The following figure shows the communication board inside the wiring area of the 8K Indoor inverter.
  • Page 12 Command sent by the BMS telling the inverter to charge the battery from any available power source regardless of inverter settings. This is not shown in the image, but it’s located below the “Alarms” field. Copyright © 2025 Sol-Ark, LLC...
  • Page 13 Modbus/RS-485 Battery Screen 2.11. As of Mar 16, 2023, Sol-Ark recommends that if establishing communication via Modbus RS485, be sure to have the inverter firmware upgraded to the latest available version, with Comm v143F or higher, and the latest primary and follower MCU versions.

  • Page 14: Connecting Batteries

    Most custom cables are NOT reversible; therefore, keep track of which end of the custom cable connects to the battery and the Sol-Ark. If you’re crimping new connectors to create a cable, be careful to not over-tighten the crimping tool, as this can recess the connectors and lead to a poor or intermittent connection.

  • Page 15: Certified Storage Partners

    Certified Storage Partners This section includes the battery manufacturers that Sol-Ark has certified to work with our inverters. BMS Lith Custom cable Manufacturer Compatible Battery Model Batt required? AmpliPHI Briggs and Stratton Deka by MK Battery Deka-Duration-DD5300 • AES LiFePO4:44-24-2800, | 44-48-3000, 42-48-6650 •...

  • Page 16: Briggs & Stratton Ampliphi 3.8

    Briggs & Stratton AmpliPHI 3.8 Follow these instructions for setting up Briggs&Stratton batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Briggs&Stratton for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 17 Program the inverter with this battery's appropriate charge/discharge settings. Enable “BMS Lithium Batt” and set its value to “00.” (Optional) Turn on “BMS_Err_Stop” if you if you want the system to fault on battery communications loss. Sol-Ark Battery Integration Guide | SK140-0026-004...

  • Page 18: Deka Duration - Dd5300 (Low Voltage Configuration)

    Deka Duration – DD5300 (Low Voltage configuration) Follow these instructions for setting up Deka batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Deka for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 19 Inverter programming and connections Connect the cable to the “CAN-A” port on the Deka-DD5300 and the “Battery CANBus” port (outdoor- rated models) or the “CAN” port (indoor-rated models) on the Sol-Ark. Program the inverter with this battery's appropriate charge/discharge settings.

  • Page 20: Discover Energy Systems Aes Rackmount 48-48-5120-H

    Discover- LYNK documentation You need the Discover Lynk device to adapt the battery’s AEBus to CANBus for use with the Sol-Ark. The Lynk requires the proper adapter for the Sol-Ark’s pin configuration (Part number 950-0016-SLRK). Communications with this battery requires a custom cable (outdoor-rated models only).
  • Page 21 No custom cable is needed. Battery IDs and connections Configure the proper pin assignments of the LYNK II header board for Sol-Ark per the manufacturer's manual. Daisy-chain all modules (if in parallel) together using CAT5e or higher cables between LYNK ports.

  • Page 22: Dyness - B4850

    Dyness – B4850 Follow these instructions for setting up Dyness batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Dyness for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 23 Program the inverter with this battery's appropriate charge/discharge settings. Enable “BMS Lithium Batt” and set its value to “00.” (Optional) Turn on “BMS_Err_Stop” if you if you want the system to fault on battery communications loss. Sol-Ark Battery Integration Guide | SK140-0026-004...

  • Page 24: Endurenergy - Esp-5100

    1. Connect a standard CAT5/6 cable to the “Inverter” port on the ESP-5100 Master battery, and the “Battery CANBus” port (or the “CAN” port for indoor-only models) on the Sol-Ark. 2. Program the inverter with the appropriate charge/discharge settings according to the specific battery manual and cable arrangement.
  • Page 25 Sol-Ark Battery Integration Guide | SK140-0026-004...

  • Page 26: Homegrid - Stack'd

    Homegrid – Stack’d Follow these instructions for setting up Homegrid batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Homegrid for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 27 (Optional) Turn on “BMS_Err_Stop” if you want the system to fault on battery communications loss. If communication still needs to be established, contact HomeGrid to ensure that the unit is on the latest firmware and configured for communication with Sol-Ark inverters. Sol-Ark Battery Integration Guide | SK140-0026-004...

  • Page 28: Pylontech - Us3000C

    Pylontech – US3000C Follow these instructions for setting up Pylontech batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Pylontech for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 29 1. Connect the cable to the “A/CAN” port on the Pylontech master battery and the “Battery CANBus” port (outdoor-rated models) or the “CAN” port (indoor-rated models) on the Sol-Ark. 2. Program the inverter with the appropriate charge/discharge settings according to the specific battery manual.

  • Page 30: Pytes - V5 V-Box-Oc

    Pytes documentation Communications Installation and Setup Instructions A standard ethernet cable can be used for communication because the Sol-Ark inverter pin assignment is the same as Pytes V Series battery. Set the DIP switch according to the battery manual. The configuration of the master battery can be seen in the figure below.

  • Page 31: Renon - Xtreme Lv Series

    Renon – Xtreme LV Series Follow these instructions for setting up RENON batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by RENON POWER for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 32 (Optional) Turn on “BMS_Err_Stop” if you if you want the system to fault in case of battery communications lost. If communication still needs to be established, contact Renon to verify the unit has the latest firmware and is configured for communication with Sol-Ark inverters. BATTERY PORT INVERTER PORT...

  • Page 33: Storz Power - Lfp48100-5Kwh

    STORZ POWER – LFP48100-5KWH Follow these instructions for setting up Storz Power batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Storz Power for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 34 (RS485 mode): “01” (Optional) Turn on “BMS_Err_Stop” if you want the system to fault on the loss of battery communications (This may happen more frequently since the Storz Power batteries do not feature ground connections. Copyright © 2025 Sol-Ark, LLC...
  • Page 35 BATTERY PORT INVERTER PORT Sol-Ark Battery Integration Guide | SK140-0026-004...

  • Page 36: Volthium Energy - 51.2-100-R-H

    Inverter programming and connections 1. Connect a standard CAT5/6 cable between the “CAN” port on the Master battery and the “Battery CANBus” port (outdoor-rated models) or the “CAN” port (indoor-rated models) on the Sol-Ark. 2. Turn on the power buttons of the batteries.
  • Page 37 5. Program the inverter with the appropriate charge/discharge settings according to the specific battery manual and cable arrangement. 6. Enable “BMS Lithium Batt” and set its value to “00”. 7. Optional) Turn on “BMS_Err_Stop” if you want the system to fault on loss of battery communications. Sol-Ark Battery Integration Guide | SK140-0026-004...

  • Page 38: Proven Storage Partner

    Proven Storage Partner This battery manufacturer has been proven to work with Sol-Ark inverters but has not yet been certified. BMS Lith Custom cable Manufacturer Compatible Battery Model Batt required? Powersync LFP3250-LV512100 Copyright © 2025 Sol-Ark, LLC...

  • Page 39: Powersync - Lfp3250-Lv480100Sp

    POWERSYNC – LFP3250-LV480100SP Follow these instructions for setting up PowerSync batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by PowerSync for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 40 Copyright © 2025 Sol-Ark, LLC...
