Summary of Contents for sol-ark Pytes HV48100

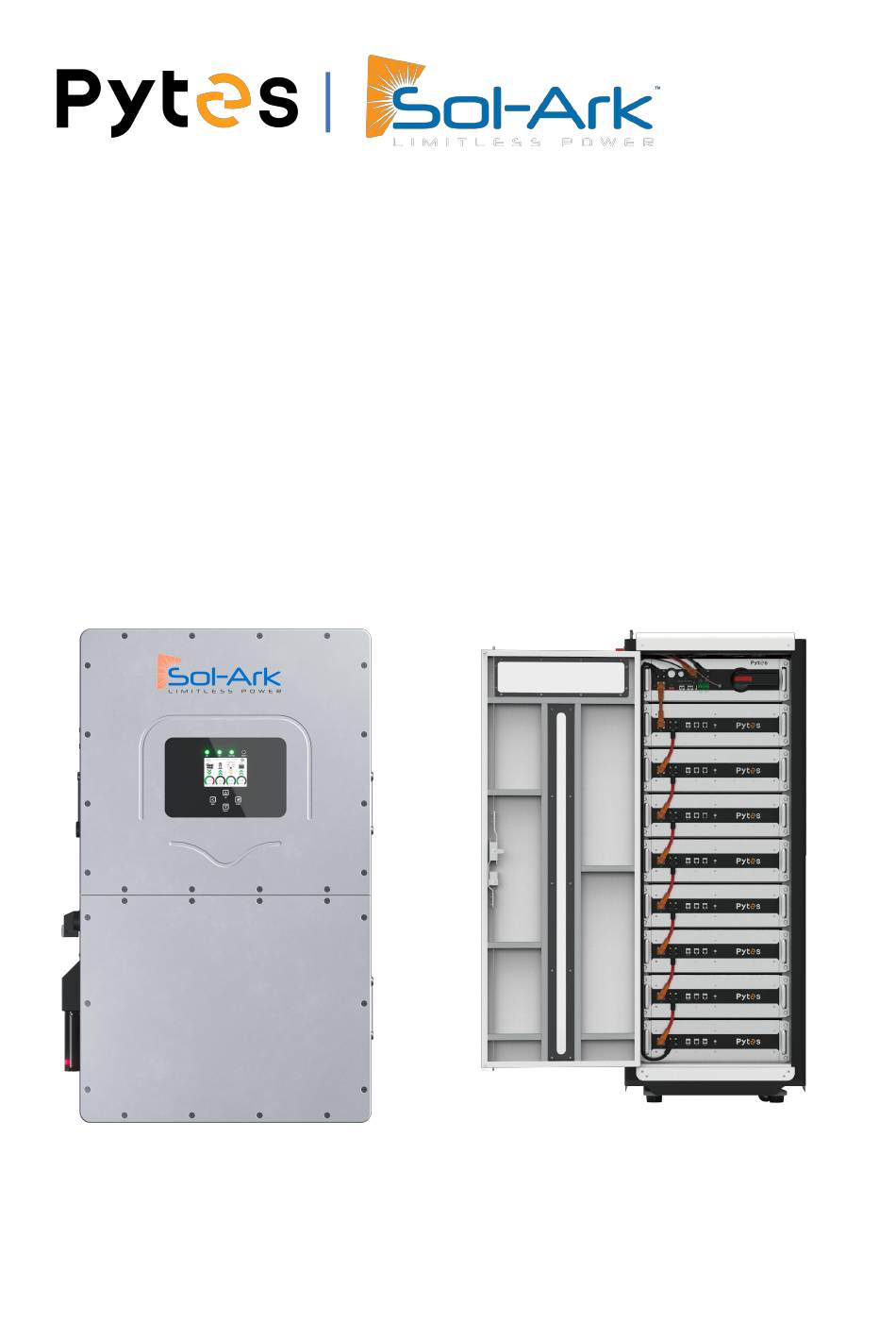

- Page 1 Installation and configuration manual with Sol-Ark Pytes Lithium Battery HV48100 with Sol-Ark Inverter...
- Page 2 WARNING: HV48100 is a high voltage DC system and must be operated by authorized person only. Warning Before connecting 1 ) Please check products and components according to enclosed packing list after unpacking. Please contact PYTES if there is any damage or missing of products and / or components.
- Page 3 Note :This part only includes the battery and inverter connection. Please refer to other documents for the battery installation.
-
Page 4: Table Of Contents
CONTENTS BOM LIST ....................6 1. Communication Cable Connection ............8 2. Power Cable Connection..............9 Step.1 ....................9 Step.2 ....................10 3. Set The DIP Switch ................11 4. Start up the system ................12 Step.1 ....................12 Step.2 ....................13 Step.3 .................... - Page 5 It is recommended to wear the following safety gears when dealing with the system.
-
Page 6: Bom List
(see battery manufacturer documentation). Earthing cable CAN communication or RS485 Com. Cable communication Depends on the number of Battery HV48100 series Battery module Inverter Sol-Ark Definition of RJ45 Port Pin for BMS is as follow. CAN port definition... - Page 7 HOW TO INSATLL Communication cable Power cable connection connection Start up the system Set the DIP switch change the battery Check the battery soc setting of the inverter System monitoring CAUTION: If you want to get more inverter-related settings, please refer to the inverter user manual first.
-
Page 8: Communication Cable Connection
1. Communication Cable Connection Connect the end of the cable to the inverter communication port as shown in pic 1.1.1. Make sure use BMS1 port. - Page 9 Pic 1.1.1 Connect the other end of the cable to the BCU CAN port as shown in pic 1.1.2. (Ensure the correct sequence of communication cable) Pic 1.1.2...
-
Page 10: Power Cable Connection
2. Power Cable Connection Step.1 Insert the red cable into the positive DC connector, and insert black cable into negative DC connector as shown in Pic 1.2.1. Pic 1.2.1... -
Page 11: Step.2
Step.2 At the other end of the cable, connect to the battery as shown Pic 1.2.2.（Ensure that the battery power switch is off） To Inverter To BMU Pic 1.2.2 3. Set The DIP Switch Before setting the DIP switch, make sure the isolation switch is in the off state. -
Page 12: Start Up The System
Then set the DIP switch of BCU as shown in Pic 1.3.2. Sol-Ark up,down,down,down,up,down Pic 1.3.2 4.Start up the system Before Turning on the inverters and batteries, make sure the wires are connected correctly. Step.1 Turn on the isolation switch. -
Page 13: Step.2
Pic 1.4.1 Step.2 Turn on the power switch . Pic 1.4.2... -
Page 14: Step.3
Step.3 Short press the red SW button, the RUN light on main control will flicker. Step.4 Press the inverter button to start the inverter. Note: When shut down the system, first press the inverter button to turn... -
Page 15: Change The Battery Setting Of The Inverter
off the inverter, and then turn off the battery (first press 3S the red button, then turn off the power switch), and finally turn off the isolation switch. 5.Change the battery setting of the inverter ※CAUTION: If you want more details about the batteries settings， please check the operating manual of inverters. -
Page 16: Step2
Pic 5.1.3 Step2. Charge and discharge parameters can be set . 6.Check the battery soc Step.1 Touch the Li-Batt Info of the inverter panel. -
Page 17: Step.2
Pic 6.1.1 Step.2 Check the Li-BMS in battery information . Pic 6.1.2 7.System monitoring ※CAUTION:If you want more details about system monitoring，please check the operating manual of inverters. - Page 18 Download the app from the app store. iPhone: (Will only show up as PV Pro) Android Register a new account and create a new plant. -END-...
