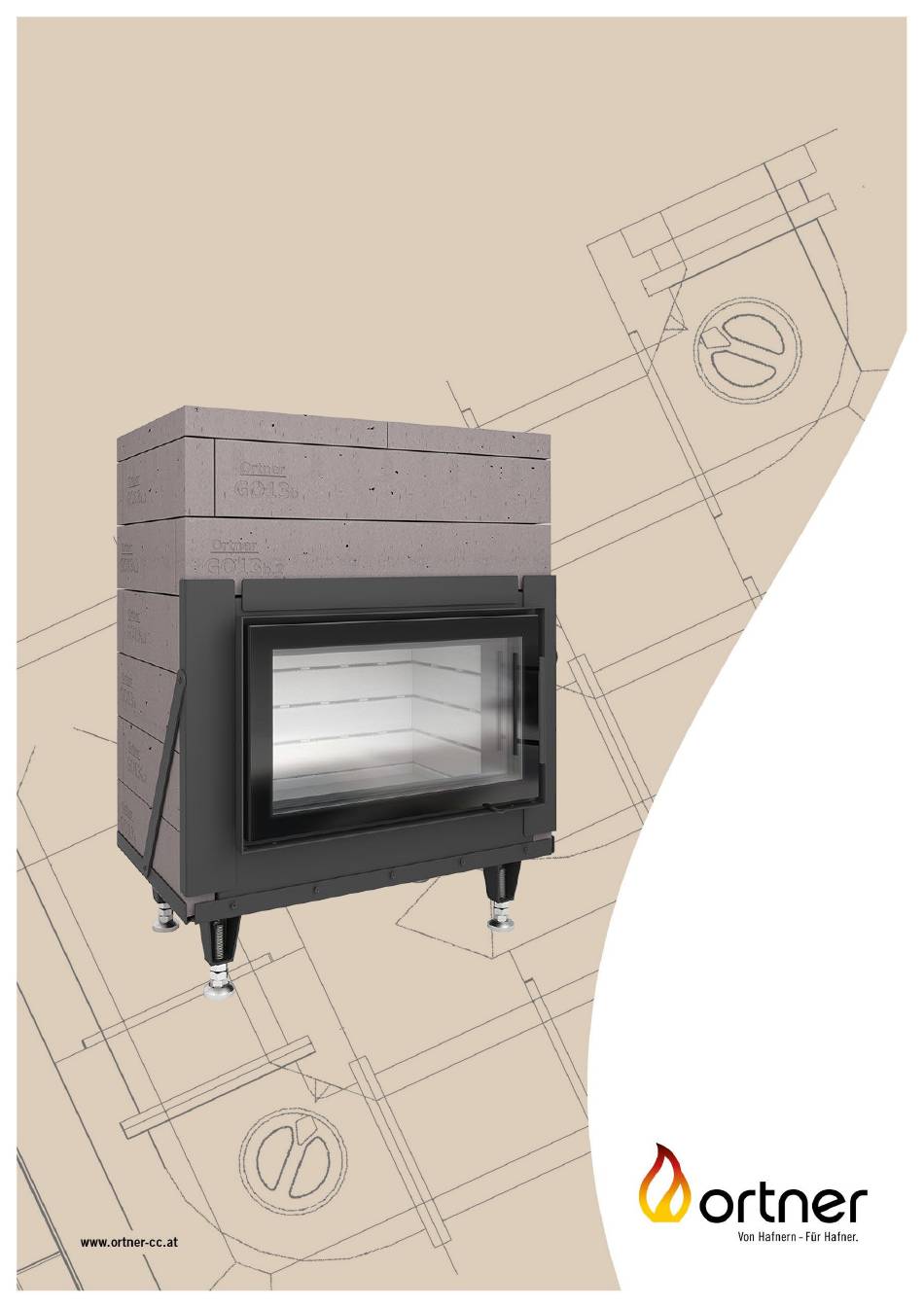

- Page 1 Version: 08 / 2016 Assembly Instructions ORTNER GO13 69/42 Manual and automatic operation...
- Page 2 ORTNER GO13 69/42 Hand- und Automatikbetrieb Version: 08 / 2016 Because the position of the burn-out from the combustion chamber can be determined individually, a length adjustment may be necessary with some components! (Details are provided in the document.) A sufficient quantity of combustion air must be provided (calculation is required).
- Page 3 Content Für den Aufbau des Ortner Grundofen benötigen sie folgende Materialien Fehler! Textmarke nicht definiert. Technische Daten Wichtige Hinweise vor dem Einbau Fehler! Textmarke nicht definiert. Erste Schritte Fehler! Textmarke nicht definiert. Abgang rechts Abgang links Fehler! Textmarke nicht definiert.
-
Page 4: Technical Specifications
The following materials are required for the assembly of the Ortner storage front • Fibre mat strips (for sealing between the ceramic and the metal parts), included in the delivery • Bedding mortar HK for the bonding of the combustion chamber jacket, included in the delivery •... - Page 5 Initial steps Outlet right Adjust Adjust The outlet brick (GOA.1) is always located mantle block mantle block in the top 3 rows. With the outlet positioned on the right / rear GOA.1 right, the long brick is located in the bottom GOA.1 row on the right-hand side.
- Page 6 Abgang oben Set up the base frame, level the bottom part and if necessary, connect the aluminium flexible hose for the combustion air supply. Loosen the screws Loosen the screws of the metal strips on the frame (contact surface with jacket components) and on the tabs on the base frame..
- Page 7 GO13a.2 GO13b First position the 1st row of the jacket parts dry on the fibre pads in the base frame. The first row is only bonded at the front GO13a sides towards each other using bedding mortar HK. GO13a Now press the bottom clamping strip GO13b against the jacket bricks and secure these with the screws.
- Page 8 Place the base plates and the ash bricks in the combustion chamber (do not bond!) GOS6 Insert the first two rows of GOS in the GOS12 combustion chamber. No bond is created in the course of this. The designation of the bricks relates to the number of segments GOS7 GOS6...
- Page 9 GOS12 GOS6 GOS7 OPEN JOINT GOS8-1 GOS12 Now install the remaining rows of the GOS. It must be in every row all around a 6 mm air gap between the stones arise. GOS6 Caution: The GOS without nubs must be GOS6 placed in the top row.
- Page 10 Position the remaining GOS and the deflection plate and always slide this to the very back and to the side of the burn-out. GO1.4.2 GO1.4.1 GO1.4.1 Now position the cover of the post- combustion chamber.
- Page 11 GO13c GOA.2 Bond the cover of the jacket with the side parts. Use ORTNER bedding mortar HK for this task. Caution: The minimum distance between the cover of the post-combustion chamber and the jacket cover must be at least 12...
- Page 12 Technical dimensioned drawing (applies to both automatic as well as manual operation)
-
Page 13: General Information
• The GO13 69/42 may not be operated in installation spaces that are ventilated by means of fans in ventilation or heating air systems with the exception that the safe operation of the stove can be ensured. This means: A simultaneous operation of an air extraction system and the firing installation must be prevented. - Page 14 In the event of the use of Ortner Isoboard: 10 cm brick lining + 9 cm Ortner Isoboard. Or 3 cm Isoboard at the mounting wall + active back ventilation (at least 5 cm gap width) + 6 cm Ortner Isoboard (towards the stove, with offset joints).
- Page 15 General When using substitute insulation materials, these may only be processed with processing media in accordance with the specifications of the officially recognised suitability certificate. When dimensionally stable substitute insulation materials are used without brick lining, then these boards must be constructed with at least two layers. In the course of this, no continuous joints may be created and any utilised plugs may solely be used in the bottom layer.
- Page 16 Schematic sketch...
- Page 17 Bodendämmung hergestellt werden. Diese kann mithilfe eines Referenz- oder Ersatzdämmstoffes erfolgen. Bei Verwendung von Ortner Isoboard entspricht dies einer Schichtdicke von 6 cm. 11) Stabile Unterlage zur Lastverteilung: Ist die Aufstellfläche nicht ausreichend stabil, so muss dies durch eine mind.
-
Page 18: Exploded View
Exploded view...
