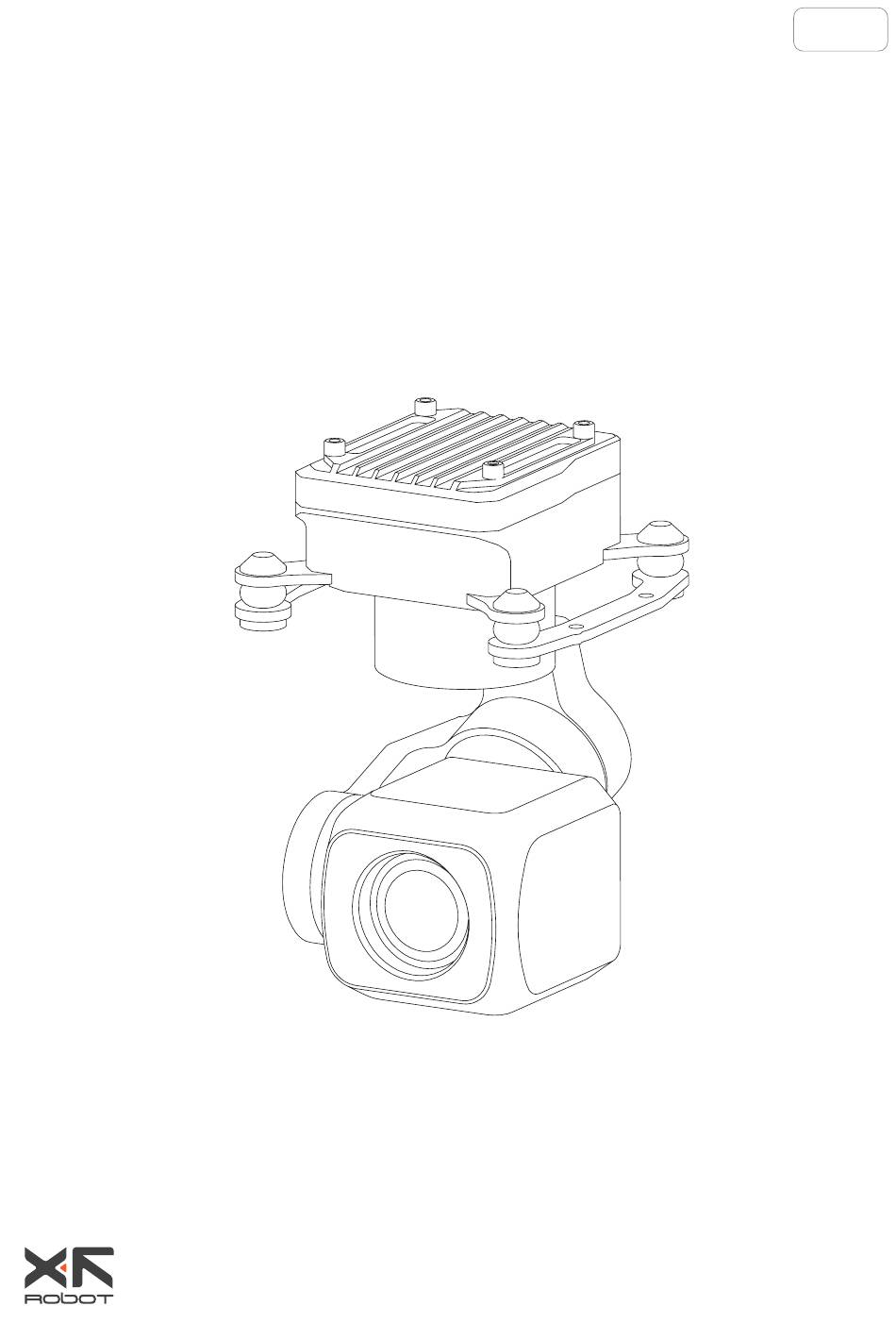

- Page 1 V1.1 2024.10 User Manual ©2024 XF All Rights Reserved...
-
Page 2: Using This Manual - Legend
Using this Manual – Legend Important Tips Explanation... -
Page 3: Revision History
Revision History Date Document Version 2024.06.17 V1.0 Date Document Version 2024.10.15 V1.1... - Page 4 Caution 1. When not in use, store the pod in the package box. The recommended storage environment is a relative humidity less than 40% at a temperature of 20±5° C. If the lenses fog up. The water vapor will usually dissipate after turning on the device for a while.
- Page 5 Catalog Introduction Synopsis Characteristics Overview Ports Definition Installation Configuration & Upgrading GCU Upgrading Gimbal Upgrading Real-time Video Playing Appendix 1 Specifications Appendix 2 MAVLink Configuration ArduPilot Appendix 3 MAVlink Communication Process Appendix 4 Wiring Diagram of Connecting to Open Source Autopilot...
- Page 7 Z-1 User Manual Introduction Synopsis The Z-1Pro Intelligent Black Light Full-Color Night Vision Micro Pod carries a star-light camera empowered with the AI-ISP full-color night vision imaging engine, which can provide a clear full-color night observation performance even in extremely low-light environments such as night time or confined spaces.
- Page 8 Z-1 User Manual Overview 1. Fixed Camera 2. Damping Platform Ports Definition 1.Micro HDMI Port 2. USB Port 3. Power Port 4. UART1 Port 5. S.BUS Port 6. UART2 Port 7. Network Port NANJING XIANFEI ROBOT TECHNOLOGY CO., LTD.
- Page 9 Z-1 User Manual PIN 1 PIN n 1 2 3 1 2 3 4 1 2 3 5 4 3 2 1 3 2 1 PIN n PIN 1 Port Description Header Definition Micro HDMI For video output Micro HDMI Port USB Port Reserved...
-
Page 10: Installation
Z-1 User Manual Port Description Header Definition UART1 Port For gimbal upgrading SM03B-SRSS-TB UART_Rx (0~3.3V) UART_Tx (0~3.3V) Power In Power in. Power Port Operating Voltage: SM05B-SRSS-TB 10~26.4VDC Installation Use 4 x M2 screws to fix the damping platform to the carrier and reserve enough space for damping. - Page 11 Z-1 User Manual Configuration & Upgrading Ensure the gimbal and the GCU have both been upgraded to the latest firmware before use. Otherwise, usage may be affected. Ensure the diver of the config module is installed on the computer before configuration or upgrading. Before configuration, the computer should be set to a static IP address, which is in the same network segment with the GCU (without IP address conflicts).
- Page 12 Z-1 User Manual 3. Click the "Search Device" button and wait for the host computer search to complete. 4. After the search is complete, click "Connect" and wait for the connection to confirm that the connection is successful. 5. After the connection is successful, click "Upgrade" and the device will start upgrading.
- Page 13 Z-1 User Manual Gimbal Upgrading Ensure the driver of the Config Module is installed on the computer before upgrading. 1. Connect the upgrading port and the computer with the J1.0 Config Module. Power up the pod. GimbalConfig 2. Run software. Select the COM port corresponding to the Config Module.
-
Page 14: Appendix 1 Specifications
Z-1 User Manual Appendix 1 Specifications General Product Name Z-1 Pro 59.2 x 48.4 x 80.2mm Dimensions Weight 100g Operating Voltage 10 ~ 26.4VDC Power 6W (AVG) / 20W (Stall) Mounting Downward / Upward Gimbal Gimbal Type 3-axis Nonorthogonal Mechanical Stabilization Angular Accuracy ±0.01°... - Page 15 Z-1 User Manual AI Multi-object Detection & Tracking Object Size 16x16 ~ 128x128 px Object Identification Delay ＜ 40ms Tracking Speed ±32 px / field Tracking Deviation Refresh Rate 30Hz Tracking Deviation Output Delay ≤ 5ms Image & Video Image Format JPEG Maximum Image Resolution 2688 x 1520...
-
Page 16: Appendix 2 Mavlink Configuration
Z-1 User Manual Appendix 2 MAVLink Configuration ArduPilot SERIAL1 SERIAL1_BAUD SERIAL1_OPTIONS 1024 SERIAL1_PROTOCOL SR1_ADSB 0 Hz SR1_EXIT_STAT 0 Hz SR1_EXTRA1 0 Hz SR1_EXTRA2 0 Hz SR1_EXTRA3 0 Hz SR1_PARAMS 0 Hz SR1_POSITION 0 Hz SR1_RAW_CTRL 0 Hz SR1_RAW_SENS 0 Hz SR1_RC_CHAN 0 Hz MNT1... - Page 17 Z-1 User Manual The MNT1_TYPE is recommended as 6. The MNT1_ROLL_MAX, MNT1_ ROLL_MIN, MNT1_PITCH_MAX, MNT1_PITCH_MIN, MNT1_YAW_MAX and MNT1_YAW_MIN will be configured automatically depend on data from the GCU. The angle limit should be set manual while the MNT1_ TYPE is 4. The RC1~RC3 are just examples, which can be defined according to actual situation.
-
Page 18: Appendix 3 Mavlink Communication Process
Z-1 User Manual Appendix 3 MAVlink Communication Process After receiving HeartBeat from the flight controller, and identifying SYSID and COMPID of the flight controller, GCU will operate as below: MAVLINK_MSG_ID_HEARTBEAT 0 1. GCU actively sends package at a frequency of 2Hz. 2. -
Page 19: Appendix 4 Wiring Diagram Of Connecting To Open Source Autopilot
Z-1 User Manual Appendix 4 Wiring Diagram of Connecting to Open Source Autopilot NANJING XIANFEI ROBOT TECHNOLOGY CO., LTD.
