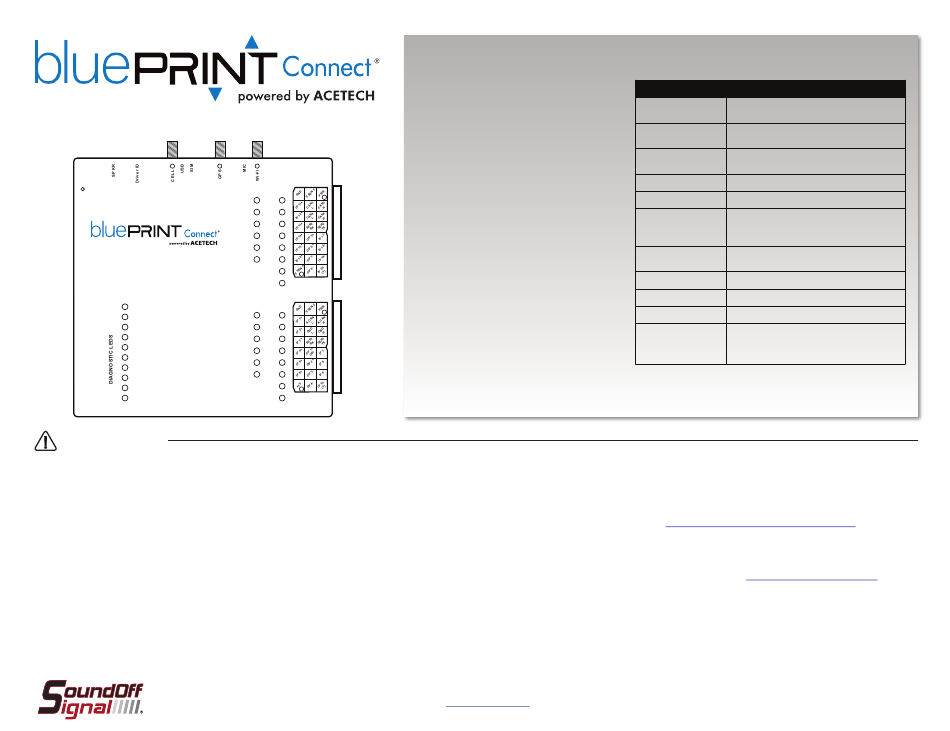

Part Number: ENGCNKTxx
RESET
MODEL: AVI 3
POWER
INT BAT
1
AUX BAT
2
ACETECH CAN
3
GPS
4
OBD CAN
5
CAN 3
6
CAN 4
7
NETWORK
8
Wi-Fi
WARNING
• Reversing the power and ground connections will damage the unit and void the warranty.
• HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and fire. Follow crimp
connector manufacturer instructions. Always verify that the mating terminals for high current connectors use the same plating finish.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's Manual for deployment zones.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause equipment or vehicle failure or fire.
• Installation must only be performed by trained technician. Installer must determine vehicle wiring configuration and proper integration
of system.
• Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be
sized to supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
• It is the installer's responsibility to verify installation of special connectors or greases as listed in this installation manual. Neglecting
to do so may result in product failure and/or warranty refusal.
PROG
JIO 2
1
IP 17-
IP 11+
IP 12+
IP 18-
IP 13 +
IP 19-
IP 14 +
IP 20-
IP 15 +
OP 5+
IP 16 +
OP 6+
OP 7-
24
OP 8-
JIO 1
1
IP 1+
IP 7-
IP 2+
IP 8-
IP 3+
IP 9 -
IP 4+
IP 10-
IP 5+
OP 1+
IP 6+
OP 2+
OP 3-
24
OP 4-
For Technical Support - Please Call 1-800-338-7337
I
NTRODUCTION
bluePRINT
Connect®
powered
ACETECH™ brings telematics and cloud
connectivity to the bluePRINT eco-system.
The benefits of bluePRINT Connect include
(but are not limited to):
• Improved first responder safety
• Improved management of fleet assets
• Improved transparency and compliance
• Live, real-time vehicle data
• Customizable reports and analytics
• Predictive fleet maintenance and
longevity
bluePRINT Connect is an easy add to any
bluePRINT system utilizing SoundOff Central.
In addition, bluePRINT Connect can be used
as a standalone product (minus bluePRINT
specific features).
or visit
www.soundoffsignal.com
T
S
ECHNICAL
PECIFICATIONS
by
General Information
6in x 6in x 1.3in
Module Dimensions
153mm x 153mm x 33mm
Operating
-40C - 85C
Temperature
bluePRINT Central Controller
Compatibility
bluePRINT 500 Controller
Input Voltage
9-16v
Input Current
150-200 mA
0 mA (when wired to ignition power source.
Standby Current
See page 7 for more information on parasitic
draw)
Main Power, 3a
Fuse
Ignition & Charge Wires, 1a Each
Diagnostic LEDs
Power, Battery, CAN, GPS, OBD, Cellular
Network Support
GSM/GPRS, 3G, 4G/LTE, CDMA
Interfaces
USB, Ethernet, Serial
• 500 Controller - 1.17 (SoundOff Central)
Minimum Required
• Central Controller - 1.17 (SoundOff Central)
Controller Firmware
• Central Controller - 3.22 (bluePRINT 3)*
*bluePRINT 3 signal support is limited to pre-mapped signals and does not offer
user mappable features related to bluePRINT Connect. See page 7 for more details.
NOTICE:
Installers and users must comply with all applicable federal, state and
local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited
Warranty Statement & Return Policy for this or any SoundOff Signal product, visit
our website at https://soundoffsignal.com/support-page/warranty/. All returned
items must be properly packed to prevent damage in transit.
If you have questions regarding this product, contact Technical Services, Monday
- Friday, 8 a.m. to 5 p.m. at 1.800.338.7337 (press #4 to skip the
automated message). Questions or comments that do not require immediate
attention may be emailed to techgroup@soundoffsignal.com.
0000DM
Rev. 1.0.2 - 07/17/2023
bluePRINT Connect® Powered by ACETECH™
Page 1
ENGCNKTxx

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACETECH bluePRINT Connect ENGCNKT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soundoff Signal ACETECH bluePRINT Connect ENGCNKT Series

  • Page 1 • DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner’s Manual for deployment zones. Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at https://soundoffsignal.com/support-page/warranty/. All returned •...
  • Page 2 Connect Label is facing up. Do not install onto sliding trunk trays. If this orientation needs to be adjusted, please contact SoundOff Signal Technical Support. & W...
  • Page 3 However, the red wire going into position 1 of this connector The receiver wiring is spliced color for color to the four should be cut from the connector and moved to a 1A fused position connector. 9-16v power source to provide voltage sense to bluePRINT NTENNA The four wire colors are: Connect.
  • Page 4: Dual Band Antenna

    - 500 C IRING IAGRAM ONTROL YSTEM ™ USB B to Mini B Cable Dual Band Antenna Blunt-cut leads - Cut to length See Page 6 for power, ground, and ignition wiring information *Driver ID Module Purchased Separately Connector 5 Driver ID Module Optional Extension Harness Available...
  • Page 5 IRING IAGRAM ENTRAL ONTROLLER ™ USB B to Mini B Cable Dual Band Antenna Blunt-cut leads - Cut to length See Page 6 for power, ground, and ignition wiring information *Driver ID Module Purchased Separately Connector 5 Driver ID Module Optional Extension Harness Available PROG See page 7 for more information**...
  • Page 6 IRING IAGRAM OWER AND IMER IRING ™ Using a bluePRINT output for Power Management Red/White - Connect Directly to Battery 9-16v, Fused 1a *When using bluePRINT to manage power to bluePRINT Connect, an output from bluePRINT is connected to the red wire of Pink - Connect Directly to Ignition 9-16v, Fused 1a bluePRINT connect.
  • Page 7: Programming Considerations

    Status LED Descriptions ESTING FTER NSTALLATION LED Position Function States After installation and energizing the device, verify the following LEDs • Green - Normal Operation are showing normal operation as described in the table to the right: POWER Indicates System Power •...
