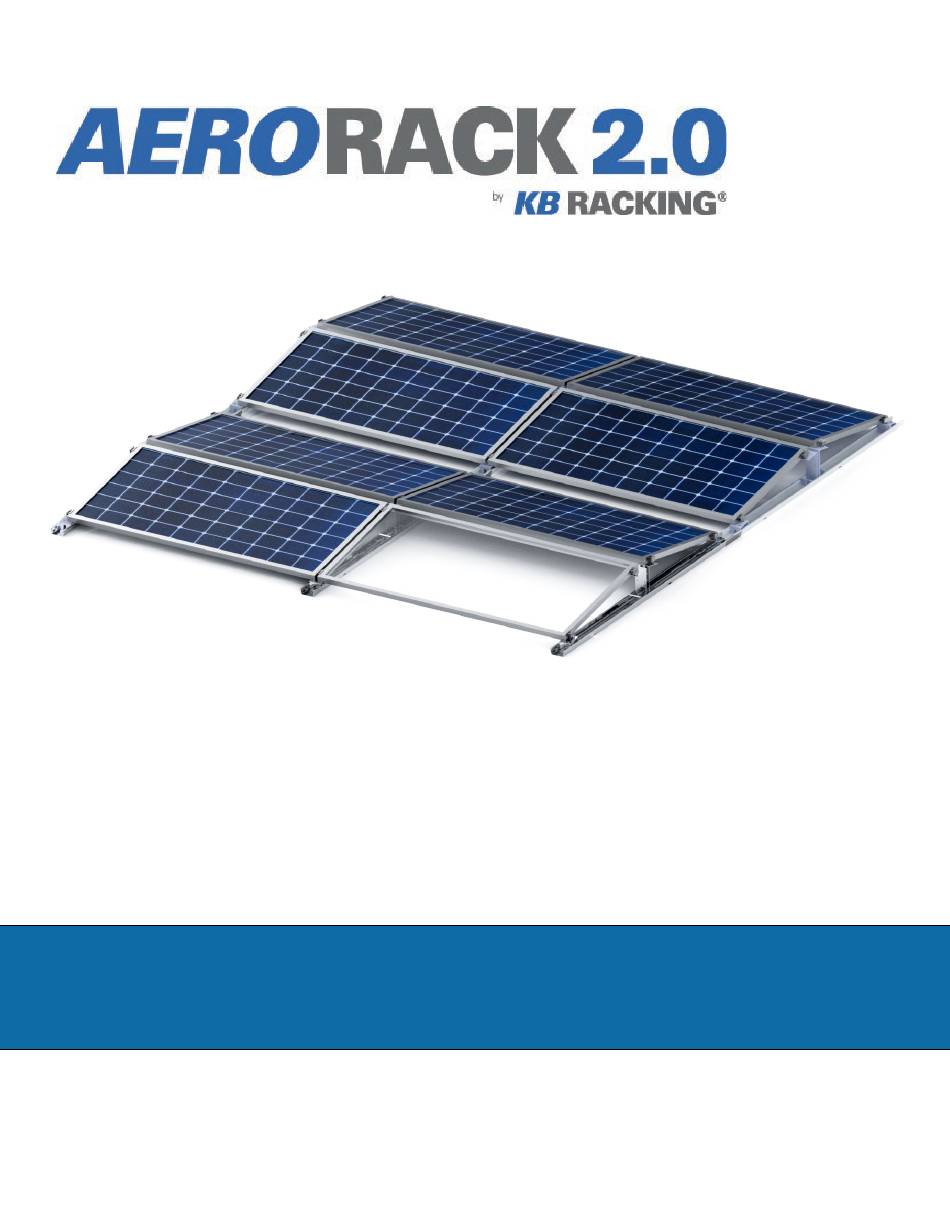

- Page 1 M A N U A L A E R O R A C K 2 . 0 E A S T W E S T KB Racking Inc. 1050 King St W, Toronto, ON M6K 0C7 Phone: 1-888-661-3204 Fax: 647-933-5375 info@kbracking.com www.kbracking.com...
-
Page 2: Before You Begin
Constant submersion of PV supports in water may damage parts. Les composants de KB Racking ® Consult with a KB Racking® Project peuvent ont déplacé au cours du transport. Prendre des précautions Manager if this is the case. supplémentaires lorsque vous déplacez Check Parts –... -
Page 3: Table Of Contents
Table of Contents UL2703 List of Approved Modules ............................ 4 System Overview ................................5 Standard Components ..............................5 Tools and Equipment Required for Installation ......................5 Preparing for Installation ..............................6 Installing the Rails ................................7 How to Use Your Layout Diagram ............................. 9 How to Use Your Spacing Diagram .......................... -
Page 4: Ul2703 List Of Approved Modules
UL2703 List of Approved Modules Module Manufacturer Module Type Boviet 35mm Module Frames: Boviet BVMYYYYM-xxx-H-HC-BF-ZZ Where “YYYY” can be 6610 / 6612 / 7610 / 7612 & “ZZ” can be DG or Blank. Canadian Solar 35mm Module Frames: Canadian Solar CS7N-xxxMB-AG JA Solar 30mm, 35mm &... -
Page 5: System Overview
System Overview Standard Components □ Axx-04B AeroRack 2.0 – xx Deg. Module Top Support □ Axx-03B AeroRack 2.0 – xx Deg. Module Bottom Support □ A00-01B-xx AeroRack 2.0 Rail – xx mm □ A00-02B-TEK AeroRack 2.0 – Rail Splice with TEK Screw □... -
Page 6: Preparing For Installation
If roof/building edge has a fall distance of 10ft (3m) or greater, Appropriate safety measures must be taken (i.e. harnesses) for installation of panels closer than 6.5ft (2m) to roof edges or skylights. NOTE: Please note that KB Racking Inc. requires all arrays to be no ®... -
Page 7: Installing The Rails
Installing the Rails Before you begin, ensure you have the following documents provided separately: Layout Diagram, Rail Table and Spacing Diagram. Figure 1 – Use your Rail Table to determine which size of Rail to use Place your first Rail for an array. Refer to your Rail Table and Layout Diagram (Figure 1). - Page 8 Continue installing rows of Rails as required. Use your Rail Table and Layout Diagram to determine specific quantities and combinations of Rails. Install Rail Splices to connect Rails. Equally space two Rails within a Splice. Use the pre-punched holes on the Splice to align and install 4x TEK Screws (Figure 4 and Figure 5).
-
Page 9: How To Use Your Layout Diagram
How to Use Your Layout Diagram From the layout, use the N/S and E/W dimensions at a corner of your roof as the ORIGIN (i.e. the beginning) of your installation. Note the following items on your project specific Layout Diagram NORTH ARROW DIMENSIONS LEGEND... -
Page 10: How To Use Your Spacing Diagram
How to Use Your Spacing Diagram Your Spacing Diagram will indicate the following important dimensions: E/W SUPPORT SPACING (E/W distance between Supports) INTER-SUPPORT SPACING (inter-row distance between Supports) N/S RAIL SPACING (N/S distance between Rails) INTER-ROW SPACING (E/W distance between rows on Rail) END SPACING (E/W distance between edge of rail and first Support) ROW SPACING (E/W distance between similar points) Record these numbers and do not confuse them. -
Page 11: Installing Module Supports
Installing Module Supports Figure 10 - Installing Module Supports Note: The steps below outline how to install the above configuration of E/W and single-panel bays. You can use your layout diagram to determine which steps/configurations are relevant to your installations. Mark the End Spacing at the West edge of a Rail (Figure 11). - Page 12 Click-in a Top Support at the distance obtained in Step 5, with your spacing stick. Ensure that the Top Support mirrors the one installed in Step 4, as shown in Figure 13. Figure 13 - Inter-Support Spacing Complete the E/W bay by clicking in Bottom Support at the E/W Support Spacing, with your spacing stick.
- Page 13 Figure 17 – Measure the first Bottom Support of the row Figure 18 – Click in the Module Bottom Support Figure 20 – Click-in the Module Top Support Figure 19 – Use pre-cut wood spacers to evenly space supports ⚠ ⚠...
-
Page 14: Installing Double Ballast Trays
Installing Double Ballast Trays Double ballast trays are only required wherever they are shown on the Ballast Layout (see example, Figures 25). Install Ballast Trays under PV panels, top-down, onto rails (see example illustration, Figure 21). Refer to the Shading Diagram, provided separately, for configuration requirements. - Page 15 How to Use Your Ballast Layout Ensure you have the Ballast Layout and Shading Diagram documents, both provided separately. The Ballast Layout shows the combinations of stones required at each rail, to ballast the adjacent panels. The Shading Diagram shows sample arrangements of stones (Figure 26). Figure 21 –...
-
Page 16: Installing Pv Modules
Support and use a 5mm Allen key to secure the Clamp (Figure 27 to Figure 29). IMPORTANT End Blocks provided by KB Racking® are designed to match your PV Module thickness. This ensures the clamp sits flat. If end clamps do not sit flat, you have the incorrect block. - Page 17 IMPORTANT To prevent damage to solar panel and clamp, do not exceed recommended torque setting below. Do not use hammer drills, impact drivers, or long Allen keys. Continue installing adjacent PV modules. To ensure proper clamping, pull panels firmly together while installing (see examples, Figure 30 and Figure 31). Torque KB Konnect to 8.3Nm (6.1 ft-lb).
- Page 18 Figure 25 – KB Konnect End Clamp Figure 26 – Two adjacent modules pullet together prior to Figure 27 – Two adjacent modules pulled together while securing clamp securing clamp...
-
Page 19: Installing Cable Systems
Installing Cable Systems After all modules are in place, string cables can be put into the middle notch of the Module Top Supports and Bottom Supports. Tip: Rails can be used as cabling channels either under or to the side of the supports, within the rail channel. -
Page 20: Installing Windshields
Installing Windshields NOTE: Windshields are only required on Top Supports that are at the edge of an array. In other words, Windshields are only required at single-panel bays. At the end of a row place the windshield flat against the Top Support. Flanges face away from supports. -
Page 21: Installing Side Shields (Optional)
Installing Side Shields (Optional) Install Side Shields at the end of rows (Figure 35). Left and/or Right-hand shields can be installed depending on your project requirements. Place Side Shield by aligning the rear slot with the outer press-fit nut on a Top Support. -
Page 22: Installing Etl Certified Grounding Lugs
Installing ETL Certified Grounding Lugs Ilsco Grounding Lug Fasten grounding lugs (not provided) onto any one Rail per Array. Tighten bolt. Torque to: 5Nm (3.69ft-lb). Insert #6 AWG – RW75 uninsulated copper ground wire into wire slot. Tighten bolt. Torque to: 5.08Nm (3.75ft-lb). Figure 37 - Grounding Lug Schematic (Tyco model, 2058729-1 shown as an example) IMPORTANT For the purpose of electrical bonding, only one... - Page 23 ⚠ ⚠ PLEASE READ THE FOLLOWING The module clamps contain protruding screws that pierce the panel frame to provide electrical bonding connection between the panel and racking. The grounding continues through the racking to the base Rail where the system is connected to a grounding wire through grounding lugs.
- Page 24 ⚠ ⚠ PLEASE READ THE FOLLOWING Installer is responsible for and shall provide an appropriate method of direct-to-earth grounding in accordance with the latest edition of the Canadian Electrical Code Part 1, CSA 22.1 Safety Standard for Electrical Installations or the National Building Code, including NEC 250: Grounding and Bonding, and NEC 690: Solar Photovoltaic Systems.
-
Page 25: Completing The Installation
Windshields iii. Product Maintenance Information To maximize life span and ensure peak performance, KB Racking® recommends routine maintenance checks. The following checks should be completed every 6 months to maintain the system’s integrity. □ Remove debris from rooftop that can damage panels or stop solar absorption.
