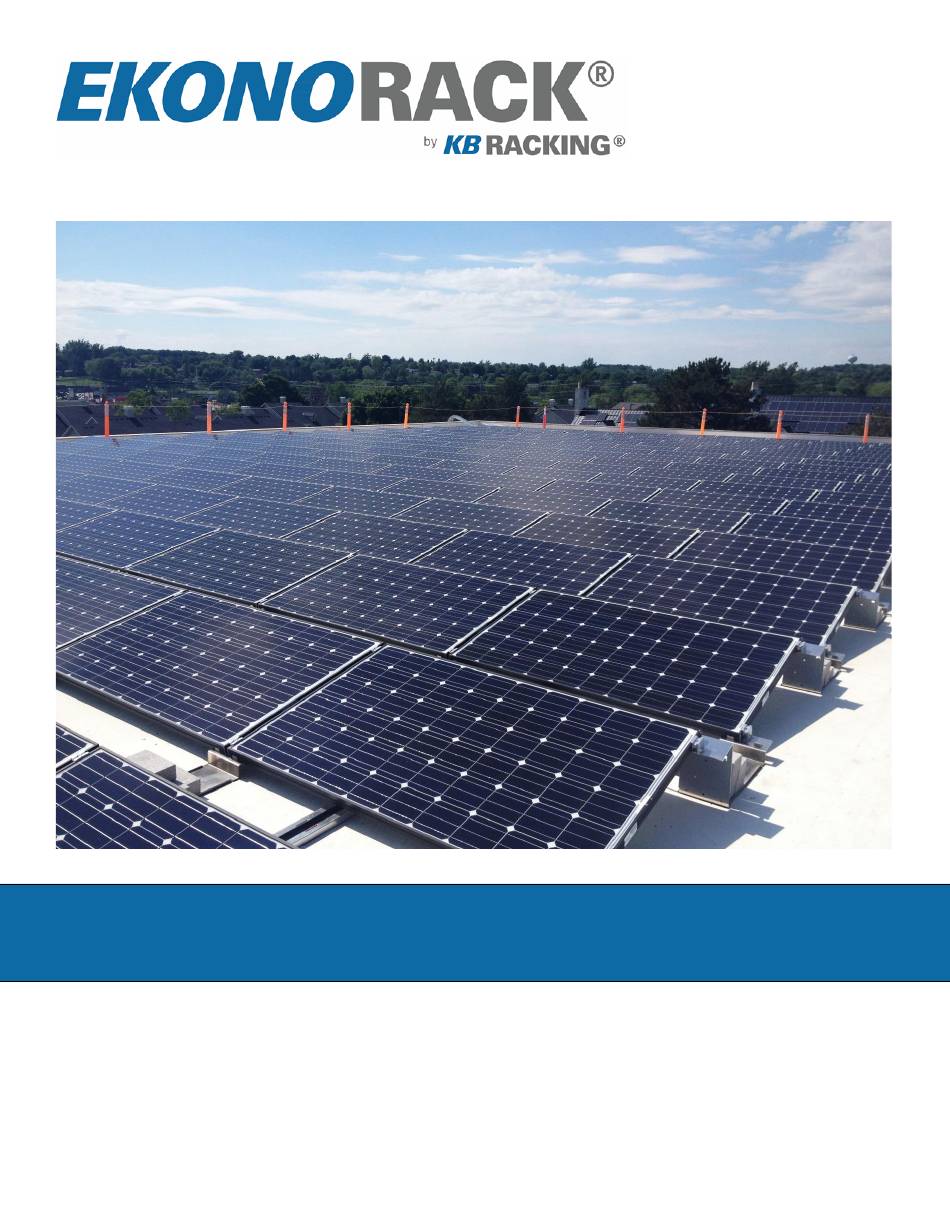

- Page 1 I N S T A L L A T I O N M A N U A L E k o n o R a c k 2 . 0 KB Racking Inc. 1050 King St W, Toronto, ON M6K 0C7 Phone: 1-888-661-3204 Fax: 647-933-5375 info@kbracking.com...
- Page 2 Constant submersion of PV supports in water may damage parts. ⚠ DANGER Consult with a KB Racking® Project Manager if this is the case. Only qualified professionals should Check Parts – Ensure the correct type install solar panels, DC cabling, and and quantities of parts have been any anti-lightning safety devices.
-
Page 3: Table Of Contents
Grounding and Bonding Diagram ........................22 Completing the Installation ..........................23 Product Maintenance Information ........................23 APPENDIX ..............................24 ® APPENDIX A | Installing KB Racking Ballast Tray ..................25 ® APPENDIX B | Installing KB Racking High Capacity Mount Mid-Supports (HCM) ........27 ®... -
Page 4: Ul2703 List Of Approved Modules
UL2703 List of Approved Modules Module Manufacturer Module Type Boviet 35mm Module Frames: BVMYYYYM-xxx-H-HC-BF-ZZ Boviet Where “YYYY” can be 6610 / 6612 / 7610 / 7612 & “ZZ” can be DG or Blank. Canadian Solar 35mm & 40mm Module Frames: Canadian Solar CS7N-xxxMB-AG / CS6X-xxx JA Solar 30mm, 35mm &... -
Page 5: System Overview
System Overview Parts Supplied by KB Racking ® □ EkonoRack 2.0 – xx Deg. Support Exx-01B □ EkonoRack 2.0 – xx Deg. Windshield Exx-0xB □ C02-35E KB Konnect Clamp □ C01-xxE End Block, xx mm □ 9111-M625-SS0 Hex Bolt, M6x25, Serrated Flange... - Page 6 (1.2m) from each other, E/W, with a minimum 1ft (0.3m) gap ever 15 to 16 modules to allow emergency crews easy access between arrays. ® NOTE: Please note that KB Racking Inc. requires all arrays to be no closer than 3ft (0.9m), unless otherwise stated, from a building’s roof edge to validate wind load calculations and ensure the system is safely ballasted.
-
Page 7: Preparing For Installation
Preparing for Installation Clean roof surface and remove all dirt and debris. IMPORTANT Inspect roof for damage prior to installation and record any existing damage with a digital camera. Ensure proper drainage on the roof. Water accumulations may lower the load reserve of the rooftop and decrease lifespan. -
Page 8: Installing The Module Supports
Installing the Module Supports Place your first support for an array. Refer to your project specific Layout Diagram for dimensions (see example, Figure 3). IMPORTANT Wear safety gloves when handling parts. Newly fabricated parts may have sharp edges. Use your project specific Spacing Diagram to obtain the distance between two module supports in the N/S and E/W directions. -
Page 9: How To Use Your Layout Diagram
How to Use Your Layout Diagram Note the following items on your project specific Layout Diagram: NORTH ARROW DIMENSIONS LEGEND ARRAY NUMBERS ROOF STRUCTURES From the layout, use the N/S and E/W dimensions at a corner of your roof as the ORIGIN (i.e. the beginning) of your installation. Fig. -
Page 10: How To Use Your Spacing Diagram
How to Use Your Spacing Diagram Your Spacing Diagram will indicate the following important dimensions: N/S SUPPORT SPACING (N/S distance between supports) E/W SUPPORT SPACING (E/W distance between supports) ROW SPACING (N/S distance between support rows) Record these numbers and do not confuse them. OPTIONAL. -
Page 11: Installing Ballasts
Installing Ballasts IMPORTANT Place ballast blocks on module supports before installing panels to prevent panels from lifting. Use your project specific Paver Layout to place paver block combinations onto all module supports (see example, Figure 6). IMPORTANT Where possible, position pavers atop flanges of the module support base-plates. -
Page 12: How To Use Your Paver Documents
How to Use Your Paver Documents Ensure you have the Paver Layout and Paver Shading Diagram documents. The Paver Layout shows the combinations of blocks required for each support to ballast each panel. The Paver Shading Diagram shows sample arrangements of pavers to prevent shadows being cast onto the panels. -
Page 13: Installing Solar Panels
Installing Solar Panels Begin at an array edge. Place a solar panel onto the module support (Exx- 01B). IMPORTANT Strong winds can lift panels. Once installed, solar panels should not be left unsupervised without windshields (Exx-0xB) installed. Click KB konnect clamps (C02-xxE) into top and bottom mounting slots of module supports. - Page 14 IMPORTANT ® End blocks provided by KB Racking designed to match your solar module thickness. This ensures the clamp sits flat. If end clamps do not sit flat, you have the incorrect block size. Notify your builder immediately. Secure the first panel in the row. Tighten all clamps with a standard drill or torque wrench.
- Page 15 IMPORTANT When securing KB Konnect clamps, ensure EkonoRack support is firmly secured (by ballast or human weight). Failure to do so may result in damage to the support and/or clamp. Continue placing panels for your first row. Tighten KB Konnect clamps as panels are installed.
-
Page 16: Installing Cable Systems
Cable trays are required for wire management of the system (additional component, not provided). Fig. 12 - Zipties Used to Hold Cables Wire Management ® KB Racking offers an optional wire management solution designed specifically easy installation with our EkonoRack 2.0 system. See Appendix D for installation instructions. -
Page 17: Installing Windshields
Installing Windshields Align windshield (Exx-0xB) onto back of module support. Windshield slots must align with inner press-fit nuts. Secure windshields with M6 bolts to the support, as shown below. Torque to: 11.8 Nm (8.7 Ft-lb) Fig. 13 – Align and Torque Bolt Fig. -
Page 18: Installing Etl Certified Grounding Lugs
Installing ETL Certified Grounding Lugs Tyco Grounding Lug Screw threaded post of grounding lugs (not provided) into any module support or solar panel. Tighten the hex washer nut. Torque to: 2.82Nm (2.1ft-lb). Insert #6 AWG – RW75 uninsulated copped ground wire into wire slot. Tighten hex nut. -
Page 19: Ilsco Grounding Lug
Ilsco Grounding Lug Fasten grounding lugs (not provided) onto any module support or solar panel. Tighten the bolt. Torque to: 5Nm (3.69ft-lb). Insert #6 AWG – RW75 uninsulated copped ground wire into wire slot. Tighten the bolt. Torque to: 5.08Nm (3.75ft-lb). Fig. - Page 20 ⚠ ⚠ PLEASE READ THE FOLLOWING Installer is responsible for and shall provide an appropriate method of direct-to-earth grounding in accordance with the latest edition of the Canadian Electrical Code Part 1, CSA 22.1 Safety Standard for Electrical Installations or the National Building Code, including NEC 250: Grounding and Bonding, and NEC 690: Solar Photovoltaic Systems.
- Page 21 Note: The module clamps contain protruding screws that pierce the panel frame to provide an electrical bonding connection between the panel and support. The grounding continues through the adjacent racking to where the system is connected to a grounding wire through grounding lugs.
-
Page 22: Grounding And Bonding Diagram
Grounding and Bonding Diagram Fig. 18 – Minimum Grounding and Bonding Path Figure 30 – Electrical Bonding Path Fig. 19 – Electrical Grounding Path... -
Page 23: Completing The Installation
Grounding lugs iii. Windshields Product Maintenance Information ® To maximize life span and ensure peak performance, KB Racking recommends routine maintenance checks. The following checks should be completed every 6 months to maintain the system’s integrity. KB Racking ® highly recommends conducting a maintenance check after a severe weather and/or extreme events such as hurricanes or earthquakes. -
Page 24: Appendix
APPENDIX A P P E N D I X... -
Page 25: Appendix A Installing Kb Racking Ballast Tray
APPENDIX A Installing KB Racking Ballast Tray ® Use your project specific Paver Layout to identify which supports require Ballast Trays to be installed. Fig. A1 - Sample Paver Layout Align mounting hole on Ballast tray with the center hole on the backside of the EkonoRack support, as shown below. - Page 26 A P P E N D I X...
-
Page 27: Appendix B | Installing Kb Racking High Capacity Mount Mid-Supports (Hcm)
APPENDIX B Installing KB Racking High Capacity Mount ® Mid-Supports (HCM) IMPORTANT HCM Supports are installed after the four corner supports have been installed. The HCM Support is installed before the windshield. For module locations that require HCM’s and HUS’s, remove the HCM Top Support where HUS’s are installed. - Page 28 APPENDIX B Installing KB Racking High Capacity Mount ® Mid-Supports (HCM) Center the Bottom Support on the low edge of the panel. Slide bottom support under the panel and secure to the panel flange by pulling the support towards you. Verify that center and outer flanges (see Fig. B3) of the support grip the panel flange tightly.
- Page 29 APPENDIX B Installing KB Racking High Capacity Mount ® Mid-Supports (HCM) Verify that the outer flanges of the support stick out at least 1/8” past the panel frame. This may vary with each panel. Fig. B5 – Bottom Mid-support Attached to Panel Flange...
- Page 30 A P P E N D I X...
-
Page 31: Appendix C | Installing Kb Racking
APPENDIX C Installing KB Racking High Uplift Solution ® Support (HUS) IMPORTANT HUS Supports are only to be installed on the northside of panels. For module locations that require HCM’s and HUS’s, remove the HCM top support where HUS’s are installed. - Page 32 APPENDIX C Installing KB Racking High Uplift Solution ® Support (HUS) Place the grounding clip through the slot. Insert End Block and lay flush with support and KB Konnect Clamp. Secure the KB Konnect Clamp to the module (see Fig. C3). The clamp may be tightened with either a standard drill or a torque wrench to the recommended torque setting - 8.3 Nm/6.1 ft-...
- Page 33 A P P E N D I X...
-
Page 34: Appendix D | Installing Kb Racking Wire Management
If placed outside the array, the outside edge of rails must be within 1m of an array edge. Fig. D1 – KB Racking® Wire Management Assembly Rails connect at flanges with M6 bolts. Assemble bolt with washer through flanges, then M6 nut. Snug-tighten with 10mm socket and wrench.
