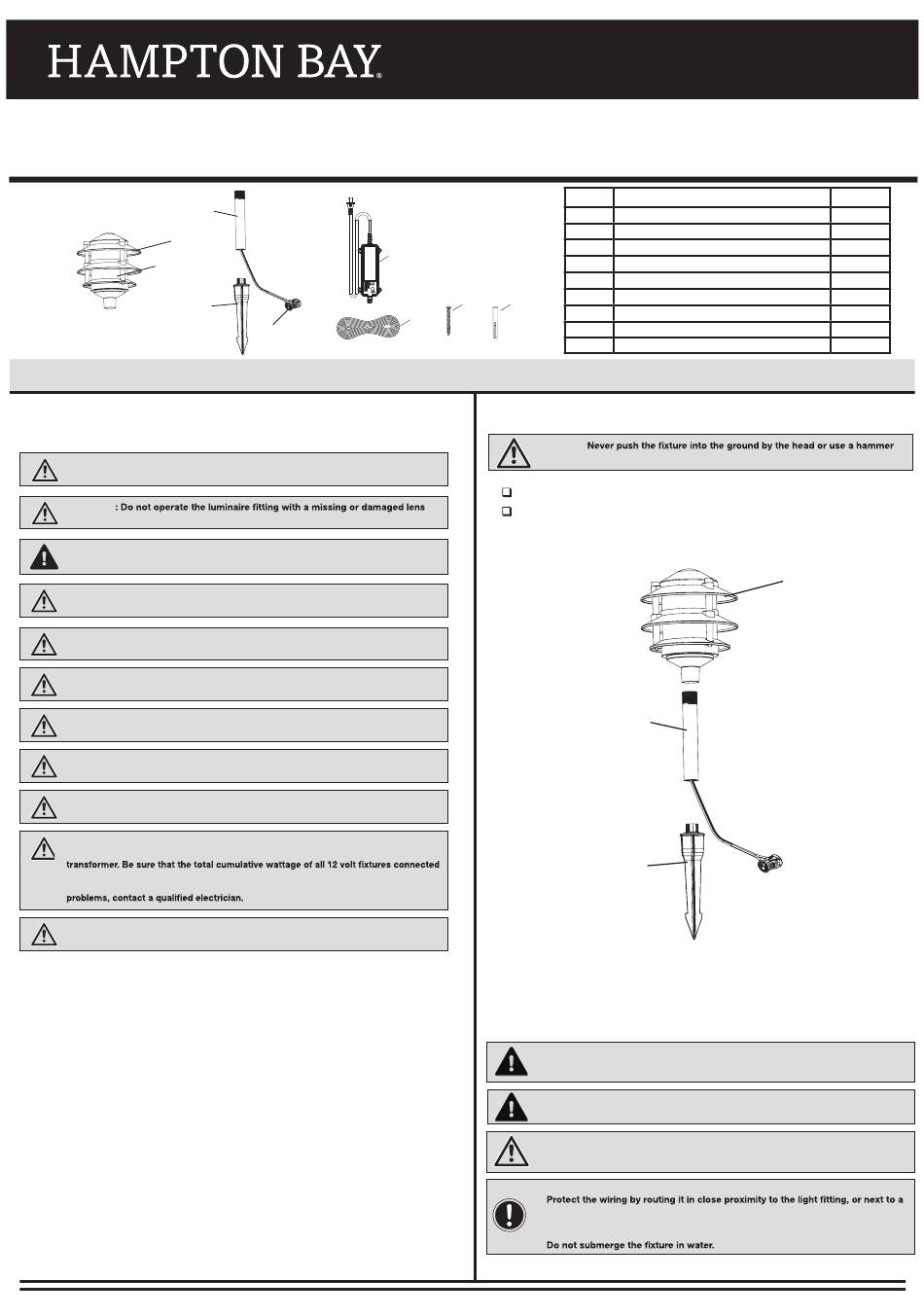

HAMPTON BAY L11187 Use And Care Manual

Please read and save these instructions
PACKAGE CONTENTS
A
E
Assembly and Installation
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS /
IMPORTANT SAFETY INSTRUCTIONS :
Lighted lamp is HOT!
CAUTION: Safe for outdoor operation.
WARNING
or bulb protector.
WARNING: Install in accordance with all local codes and ordinances.
WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS:
WARNING: Do not submerge the transformer.
WARNING: Do not use with a dimmer.
WARNING: Do not use an extension cord.
WARNING: There are no serviceable parts inside the power supply unit. DO NOT
DISASSEMBLE.
WARNING: Do not connect two or more transformers in parallel.
CAUTION: Plug the power supply unit directly into a GFCI outlet that is marked "wet
location". The maximum output of this transformer is 40 watts. Do not overload the
to the transformer is equal to or less than 40 watts. This garden light system must be
installed in accordance with all local codes and ordinances. If you are experiencing
WARNING: For use with 12 volts low voltage outdoor landscape lighting system only.
Not for use with submersible light or pool/spa equipment.
Only for use with low voltage power units with a maximum output rating of 12V,
300W per secondary.
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY. THE DEVICE IS
ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE
SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY CSA OR LOCAL
INSPECTION AUTHORITIES HAVING JURISDICTION.
PATHLIGHT ETL LISTED UNDER MODEL # L03177.
RISK OF FIRE. DO NOT PLACE INSULATION UNDER TERMINAL PLATE. CHECK
CONNECTION AFTER INSTALLATION.
RISQUE D'INCENDIE. NE PAS METTRE D'ISOLANT SOUS LA PLAQUE à
BORNES. VéRIFIER LES CONNEXIONS UNE FOIS L'INSTALLATION TERMINéE
B
C
D
F
H I
G
1
Attaching and installing the pathlight
WARNING:
to insert the stake (C) into the ground.
Carefully remove the fixture from its protective packaging.
Attach spike (C), post (B) and head (A) together by turning them
clockwise.
2
Connecting the wires
WARNING: The wire connector (D) contacts have sharp edges for piercing the
main low voltage cable. To avoid injury, do not touch the metal contacts.
WARNING: Risk of Electric Shock. Install all luminaires 10 ft. (3.05 m) or more
from a pool, spa or fountain.
CAUTION: The wire from the low voltage power unit shall be 12-18 AWG type
underground low Energy Circuit Cable or SPT2W.
IMPORTANT:
•
building structure such as a house or deck.
• The landscape wire and connector can also be hidden under stone or buried
under grass at a maximum depth of 6 in. (15.24 cm).
•
- 1 -
Item #1011 655 133
Use and Care Guide
LOW VOLTAGE LED TIER LIGHT KIT
Part Description
A Head
Post
B
C Spike
D Connector
E Plastic diffuser
F Transformer
G Low voltage cable
Screws
H
Exponds
I
B
C
Model #L11187
Quantity
4
4
4
4
4
1
1
2
2
A
