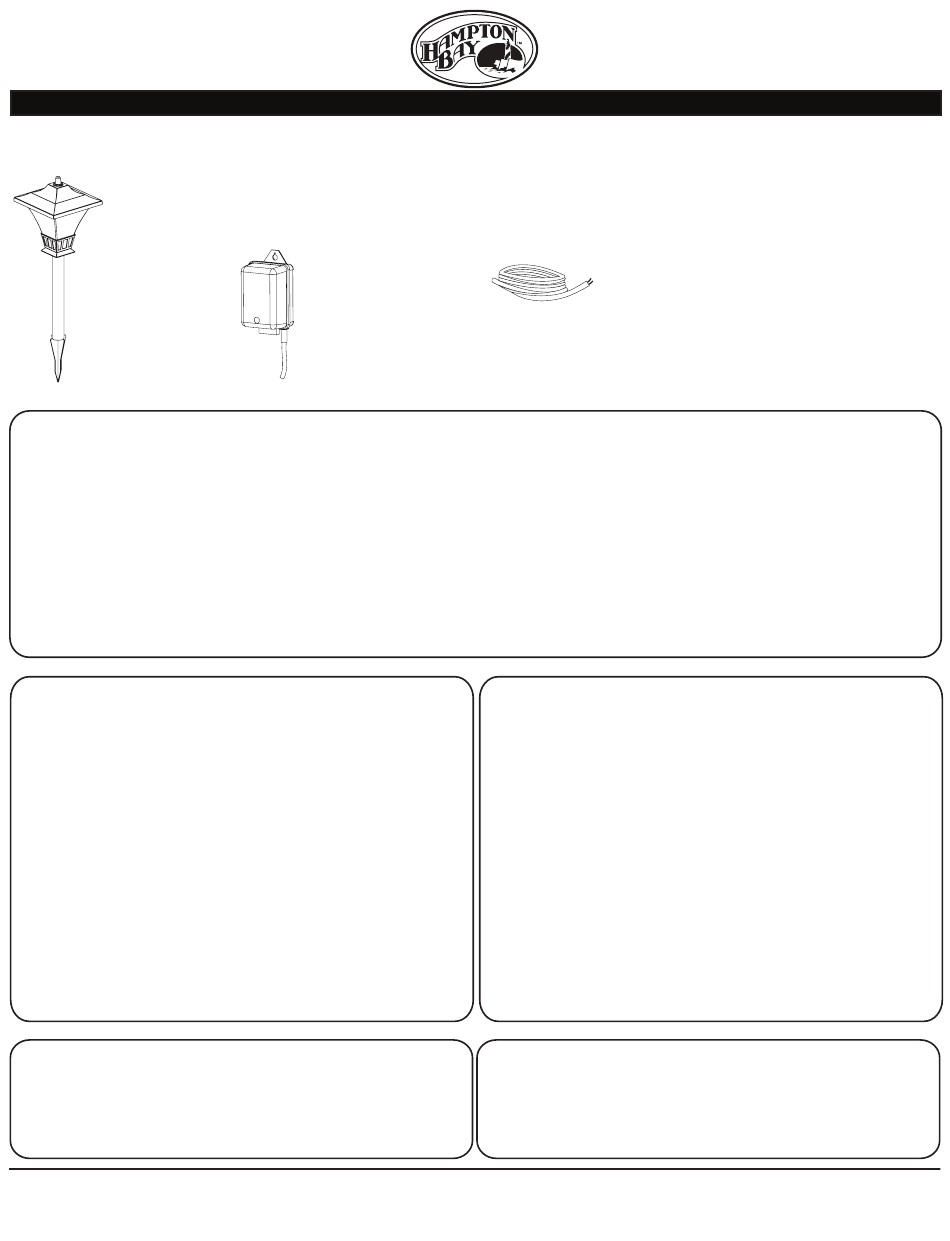

Low voltage landscape lighting kit

Advertisement

Quick Links

READ AND SAVE THESE INSTRUCTIONS
x6
Pathlight
4W incandescent bulb
Luminaire
ampoule incandescente 4W
DEAR CUSTOMER,
Congratulations on your purchase of a HAMPTON BAY
and provide many years of enjoyment. HAMPTON BAY
Ask your dealer about the many other HAMPTON BAY
To ensure the maximum performance of your garden light, please read and save these instructions.
Replacement parts may be ordered by using the fixture model number and the part's name.
CHÈRE CLIENTE, CHER CLIENT,
Nous vous félicitons pour votre achat d'un luminaire
procureront de nombreuses années de plaisir.
professionnelle. Votre dépositaire de produits
créer votre propre paradis.
Afin d'assurer la meilleure performance possible de votre éclairage de jardin, veuillez lire et conserver ces instructions.
Les pièces de rechange peuvent être commandées avec le numéro de modèle du luminaire et le nom de la pièce.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
• To reduce the risk of FIRE OR INJURY TO PERSONS turn off, unplug
transformer and allow lamp to cool before replacing it. Lamp gets HOT
quickly.
• Keep the lamp away from materials that may burn.
• WARNING - Risk of Electric Shock. Install all luminaires 10 feet (3.05 m)
or more from a pool, spa or fountain.
• Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating
of 15V, 300W per secondary.
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY.
THE DEVICE IS ACCEPTED AS A COMPONENT OF A LANDSCAPE
LIGHTING SYSTEM WHERE THE SUITABILITY OF THE COMBINATION
SHALL BE DETERMINED BY CSA OR LOCAL INSPECTION
AUTHORITIES HAVING JURISDICTION.
1-888-867-6095
MODEL/MODÈLE # HD22105
ENSEMBLE DE LANTERNES DE JARDIN
40W Transformer
with photosensor and timer
40W Transformateur
avec cellule photoélectrique
avec minuterie
HAMPTON BAY
HAMPTON BAY
HAMPTON BAY
CUSTOMER SERVICE
customerservice@niinorthern.com
VEUILLEZ LIRE ET CONSERVER CES INSTRUCTIONS
LANDSCAPE LIGHTING KIT
Landscape wire
18 gauge • 50' • (15,24 m)
Câble pour jardin
Calibre 18 • 50' • (15,24 m)
lighting product. Our products will help to enhance the beauty of your home
offers a wide selection of lighting products of the highest professional quality.
products that will help to create your own paradise.
. Nos produits vous aideront à embellir votre demeure et vous
offre une grande variété de luminaires de la plus haute qualité
pourra vous conseiller sur nos nombreux autres produits et vous aider à
INSTRUCTIONS PERTINENTES CONCERNANT LES CAUSES DE BRÛLURES
OU DE BLESSURES. IMPORTANTES INSTRUCTIONS DE SÉCURITÉ.
• Afin de réduire les risques de BRÛLURES OU DE BLESSURES, fermer
"OFF" et débrancher le transformateur. Laisser la lampe se refroidir car
elle devient chaude rapidement.
• Garder la lampe éloignée des sources inflammables.
• ATTENTION - Risque de Chocs Électriques. Installer tous les luminaires
à 3.05 m (10 pieds) ou plus d'une piscine, d'un spa ou d'une fontaine
d'eau.
• Faire l'installation de ce module en conformité avec les codes et les
règlements en vigueur dans votre région.
Votre système d'éclairage à bas voltage doit être utilisé avec un bloc
d'alimentation contenant un amplificateur de 15V maximum et de 300W
par unité secondaire.
POUR SYSTÈMES D'ÉCLAIRAGE PAYSAGER SEULEMENT. POUR
UTILISATION EXTÉRIEURE SEULEMENT.
CET APPAREIL EST ACCEPTÉ EN TANT QUE COMPOSANTE D'UN
SYSTÈME D'ÉCLAIRAGE D'EXTÉRIEUR OÙ LA FIABILITÉ DE LA
COMBINAISON DEVRAIT ÊTRE DÉTERMINÉE PAR LA CSA OU TOUT
ORGANISME LOCAL COMPÉTENT.
SERVICE À LA CLIENTÈLE
servicealaclientele@niinorthern.com
Low Voltage
Basse Tension
5002-HD22105-BIL
