Installation
Instructions
Questions? Call
1-800- 61-3 4
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT –
•
instructions for local inspector's use.
IMPORTANT –
•
governing codes and ordinances.
Note to Installer –
•
instructions with the Consumer.
All manuals and user guides at all-guides.com
or
5
3
4
Visit our Website at:
Save these
Observe all
Be sure to leave these

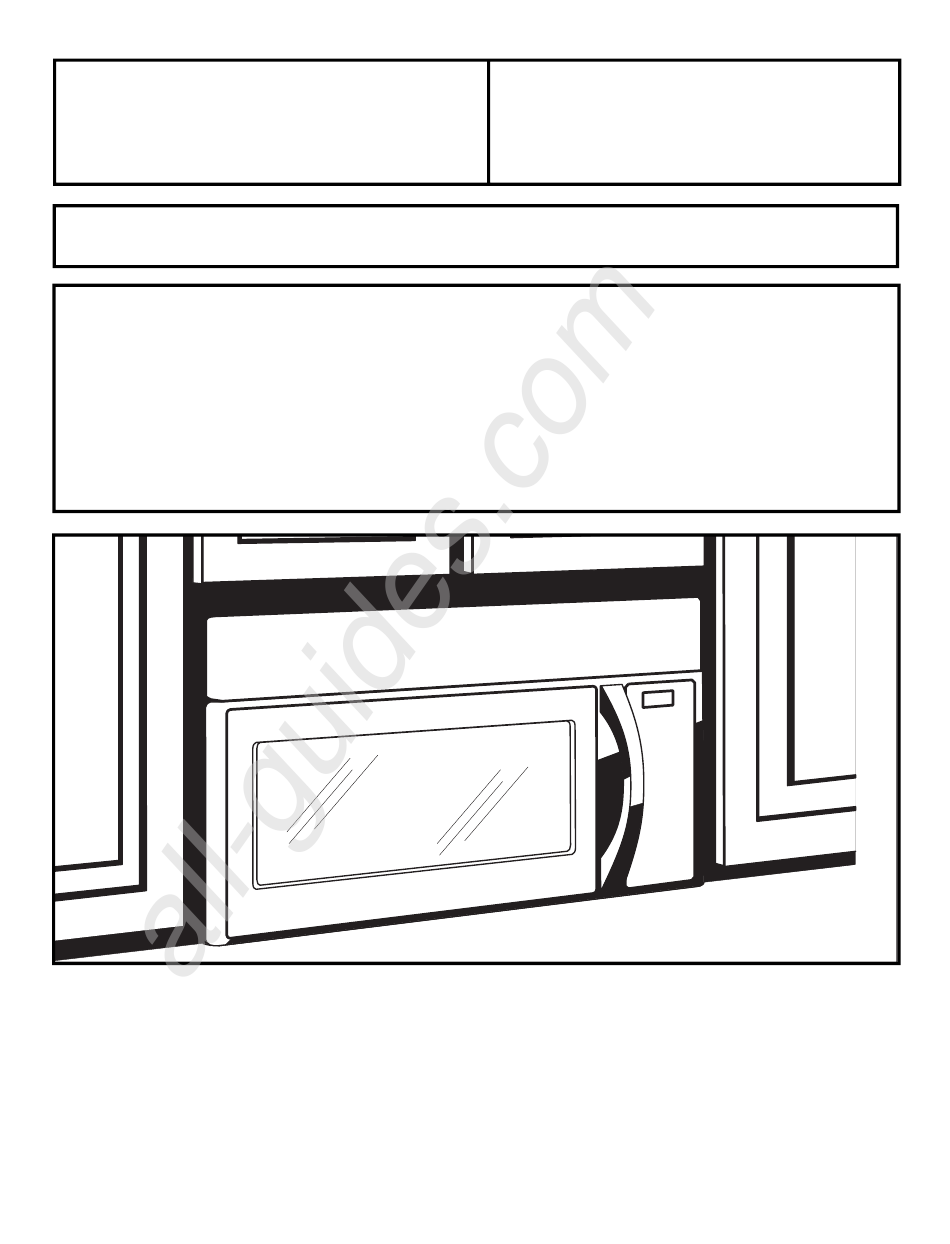

Over the Range
Microwave Oven
geappliances.ca
Note to Consumer –
•
instructions for future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
KEEP THESE INSTRUCTIONS
Keep these
READ CAREFULLY.
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the cvm1599svc and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GE cvm1599svc

Summary of Contents for GE cvm1599svc

  • Page 1 All manuals and user guides at all-guides.com Installation Over the Range Instructions Microwave Oven geappliances.ca Questions? Call 1-800- 61-3 4 Visit our Website at: BEFORE YOU BEGIN Read these instructions completely and carefully. Note to Consumer – • Keep these instructions for future reference.

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Installation Instructions Adapting Microwave Blower CONTENTS for Outside Back Exhaust....17, 18 General information Mount the Microwave Oven ....19 Important Safety Instructions ........3 Recirculating ........– Electrical Requirements .......... 3 Attach Mounting Plate to Wall .... Hood Exhaust ............

  • Page 3: Important Safety Instructions

    All manuals and user guides at all-guides.com Installation Instructions IMPORTANT SAFETY INSTRUCTIONS You should have the wall receptacle and circuit checked This product requires a three-prong grounded outlet. by a qualified electrician to make sure the receptacle is The installer must perform a ground continuity check properly grounded.

  • Page 4: Outside Top Exhaust (Example Only)

    All manuals and user guides at all-guides.com Installation Instructions EXTERNAL EXHAUST DUCTING NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page . OUTSIDE TOP EXHAUST (EXAMPLE ONLY) The following chart describes an example of one possible ductwork installation.
  • Page 5 All manuals and user guides at all-guides.com Installation Instructions INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING Maximum duct length: NOTE: If you need to install ducts, note that the total duct length of 3 ⁄ ” x 10” (8.2 x 25.4 cm) rectangular or For satisfactory air movement, the total duct length of 5”...

  • Page 6: Damage - Shipment/Installation

    All manuals and user guides at all-guides.com Installation Instructions PARTS INCLUDED DAMAGE—SHIPMENT/ (CONT.) INSTALLATION ADDITIONAL PARTS • If the unit is damaged in shipment, return the PART QUANTITY unit to the store in which it was bought for repair or replacement. •...

  • Page 7: Tools You Will Need

    All manuals and user guides at all-guides.com Installation Instructions TOOLS YOU WILL NEED Ruler or tape measure and straight edge Pencil Carpenter square # 1 Phillips screwdriver (optional) Tin snips (for cutting damper, if required) Scissors “ “ “ Electric drill with ⁄...

  • Page 8: Placement Of The Mounting Plate

    All manuals and user guides at all-guides.com Installation Instructions PLACEMENT OF THE MOUNTING PLATE REMOVING THE MICROWAVE FINDING THE WALL STUDS OVEN FROM THE CARTON/ REMOVING THE MOUNTING PLATE Remove the installation instructions, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven.

  • Page 9: Determ Ining Wall Plate Location Under Your Cabinet

    All manuals and user guides at all-guides.com Inst allat ion Inst ruct ions DETERM INING WALL PLATE LOCATION UNDER YOUR CABINET Template beneath cabinet Template beneath cabinet with flat bottom with recessed bottom Trim the rear wall 16-1/2″ template along the dotted line.

  • Page 10: Aligning The Wall Plate

    All manuals and user guides at all-guides.com Installation Instructions ALIGNING THE WALL PLATE 3/8" TO EDGE 12" NOTE: IT IS VERY IMPORTANT TO Trim the rear wall template along the dotted line. READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCEEDING WITH THIS REAR WALL TEMPLATE.

  • Page 11: Installation Types

    All manuals and user guides at all-guides.com Installation Instructions INSTALLATION TYPES (Choose A, B or C) This microwave oven is designed for adaptation to NOTE: This microwave is shipped assembled for the following three types of ventilation: Recirculating. Select the type of ventilation required for your installation and proceed to that section.

  • Page 12: Aoutside Top Exhaust

    All manuals and user guides at all-guides.com Installation Instructions OUTSIDE TOP EXHAUST (Vertical Duct) INSTALLATION OVERVIEW A1. Attach Mounting Plate to Wall A2. Prepare Top Cabinet Adapting Microwave Blower for Outside Top Exhaust A4. Check Damper Operation Mount Microwave Oven 3/8"...

  • Page 13: Use Top Cabinet Template For Preparation Of Top Cabinet

    All manuals and user guides at all-guides.com Installation Instructions USE TOP CABINET TEMPLATE Carefully pull out the blower unit. The wires FOR PREPARATION OF TOP will extend far enough to allow you to adjust the blower unit. CABINET End B You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.

  • Page 14: Checking For Proper Damper Operation

    All manuals and user guides at all-guides.com Installation Instructions MOUNT THE MICROWAVE ADAPTING MICROWAVE OVEN BLOWER FOR OUTSIDE TOP EXHAUST Secure blower unit to microwave with the screw removed in Step 1. Make sure the screw is tight. Replace blower plate with the screw removed in Step 1.

  • Page 15: Adjust The Exhaust Adaptor

    All manuals and user guides at all-guides.com Installation Instructions MOUNT THE MICROWAVE ADJUST THE EXHAUST OVEN (cont.) ADAPTOR Open the top cabinet and adjust the exhaust adaptor Cabinet Front to connect to the house duct. Cabinet Bottom Shelf Filler Block Back of Damper Blower Plate...

  • Page 16: Boutside Back Exhaust

    All manuals and user guides at all-guides.com Installation Instructions OUTSIDE BACK EXHAUST (Horizontal Duct) INSTALLATION OVERVIEW B1. Prepare Rear Wall B2. Remove Blower Plate B3. Attach Mounting Plate to Wall B4. Prepare Top Cabinet B5. Adjust Blower 3/8" TO EDGE Trim the rear wall template along the dotted line.

  • Page 17: Attach Mounting Plate To Wall

    All manuals and user guides at all-guides.com Installation Instructions ATTACH THE MOUNTING USE TOP CABINET TEMPLATE PLATE TO THE WALL FOR PREPARATION OF TOP CABINET You need to drill holes for the top support screws and a hole large enough for the power cord to fit through. Attach the plate to the wall using toggle bolts.
  • Page 18 All manuals and user guides at all-guides.com Installation Instructions Place the blower unit back into the opening. ADAPTING MICROWAVE BLOWER FOR OUTSIDE AFTER: Fan Blade Openings Facing Back BACK EXHAUST (cont.) End A Roll the blower unit 90° Before Rotation After Rotation End B CAUTION: Do not pull or stretch the blower...

  • Page 19: Mount The Microwave Oven

    All manuals and user guides at all-guides.com Installation Instructions Cabinet Front MOUNT THE MICROWAVE Cabinet Bottom Shelf OVEN Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw FOR EASIER INSTALLATION AND PERSONAL Microwave Oven Top SAFETY, WE RECOMMEND THAT TWO PEOPLE Attach the microwave oven to the top cabinet.

  • Page 20: Attach Mounting Plate To Wall

    All manuals and user guides at all-guides.com Installation Instructions RECIRCULATING (Non-Vented Ductless) INSTALLATION OVERVIEW C1. Attach Mounting Plate to Wall C2. Prepare Top Cabinet C3. Check Blower Plate 3/8" TO EDGE along the dotted line. Trim the rear wall template 12"...

  • Page 21: Check Blower Plate

    All manuals and user guides at all-guides.com Installation Instructions CHECK BLOWER PLATE NOTE: When mounting the microwave oven, thread power cord through hole in Blower Plate bottom of top cabinet. Keep it tight throughout Steps Lift microwave, tilt 1–3. Do not pinch cord or it forward, and hook lift oven by pulling cord.

  • Page 22: Charcoal Filter

    All manuals and user guides at all-guides.com Installation Instructions MOUNT THE MICROWAVE C5. INSTALLING OR CHANGE OVEN (cont.) THE CHARCOAL FILTER Insert 2 self-aligning screws NOTE: The charcoal filter is factory installed in through outer top cabinet recirculating models. Follow these steps to replace a holes.

  • Page 23: Before You Use Your Microwave

    All manuals and user guides at all-guides.com Installation Instructions BEFORE YOU USE YOUR MICROWAVE & Make sure the microwave oven has been Read the CARE Manual. installed according to instructions. KEEP INSTALLATION INSTRUCTIONS Remove all packing material from the FOR THE LOCAL INSPECTOR’S microwave oven.
  • Page 24 All manuals and user guides at all-guides.com 3/8" TO EDGE 12" Trim the rear wall template along the dotted line. NOTE: IT IS VERY IMPORTANT TO READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCEEDING WITH THIS  REAR WALL TEMPLATE.
