Instructions for maintenance
In addition to the manufacturer-
related service instructions, we
strongly advise the operator/owner
to consider the corresponding
prescriptions of the European
Standard EN1176-7.
Water play
034410700
structure
One-time maintenance
Check all screw connections; retighten, if necessary.
Cover the screws with protective screw caps.

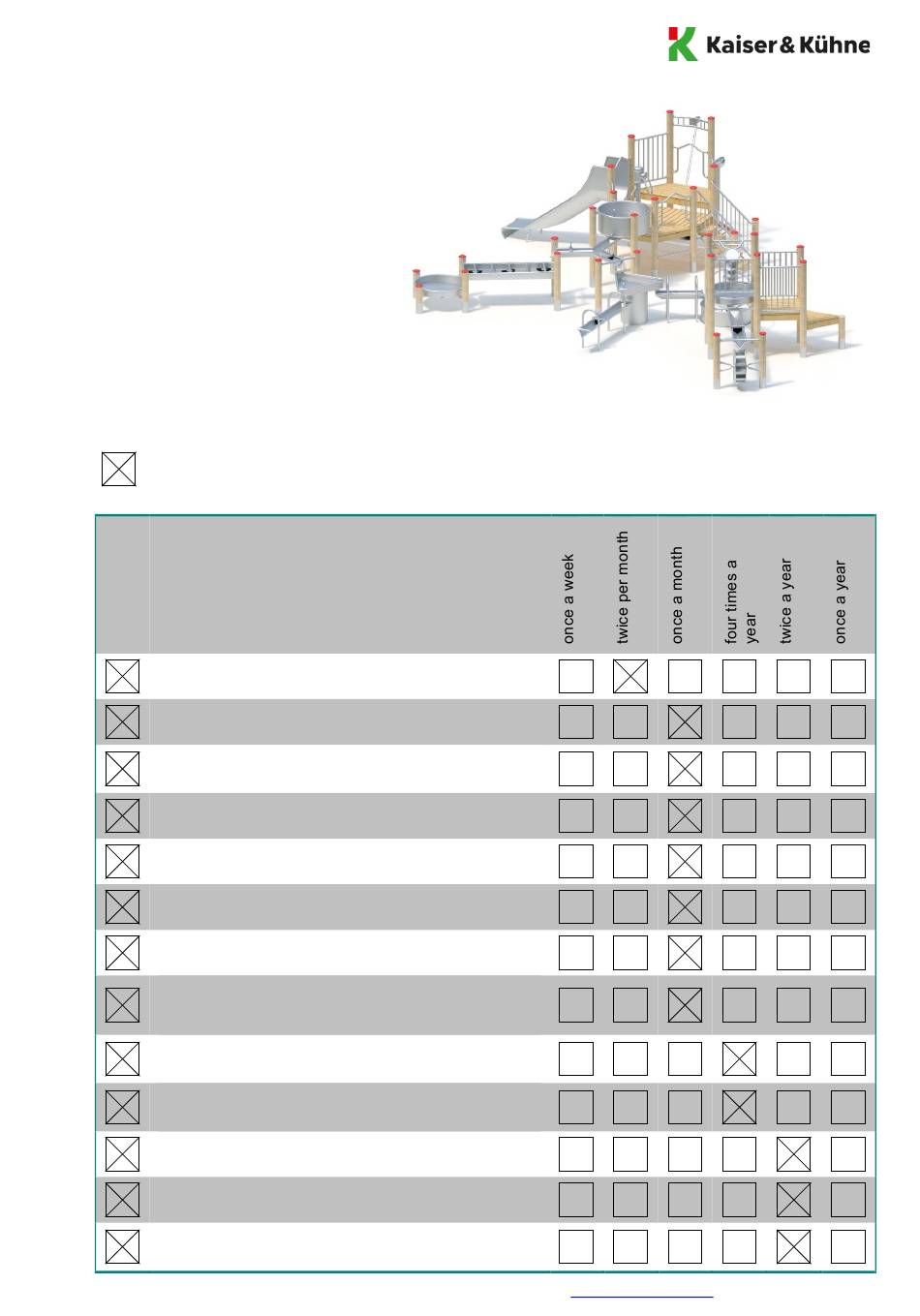

Recommended regular inspection and
maintenance
Clean playing sand
Check cleanliness of playing and safety area. Remove any foreign
object
Check chain of sand pulley for wear, replace if necessary. The
nominal chain thickness must not diminish more than 30%
(< 3 mm). Beyond that limit, a chain replacement is indispensable.
Check rubber parts like seats, hoses, flaps, collars for wear,
replace if necessary
Check cleanliness of sliding surfaces, remove protruding parts,
exchange damaged sliding course coverings
In case of drying cracks, remove splinters of wood and chamfer
sharp edges
Where appropriate, check synthetic surfacing material for
damages or severe wear, repair or replace, if necessary
Check duty cycle and operating noise of the bottom joint of the
screw pump; verify clearance dimension (see subsequent
drawing); with deviation, dismount the screw pump and exchange
the entire unit (both bearings and the sealing).
If existing: The valve combination must not be located in water,
thus: after rainfalls for instance, check the shaft for a water
increase or check, if the valve combination is located in water.
If existing: Check tightness and proper function of the valve
combination: smoothly running pumping process, automatic
closing process after pumping
Check tightness of stand construction: stability of (vertical) posts or
supports, retighten screw connections, if necessary.
Check further structural components for wear and tightness;
retighten, if necessary and replace defective parts.
Check bearings and/or joints for tight fixing and easy-running
function, replace or grease, if necessary (water pump handle, hand
wheel at the upper end of the screw pump).
