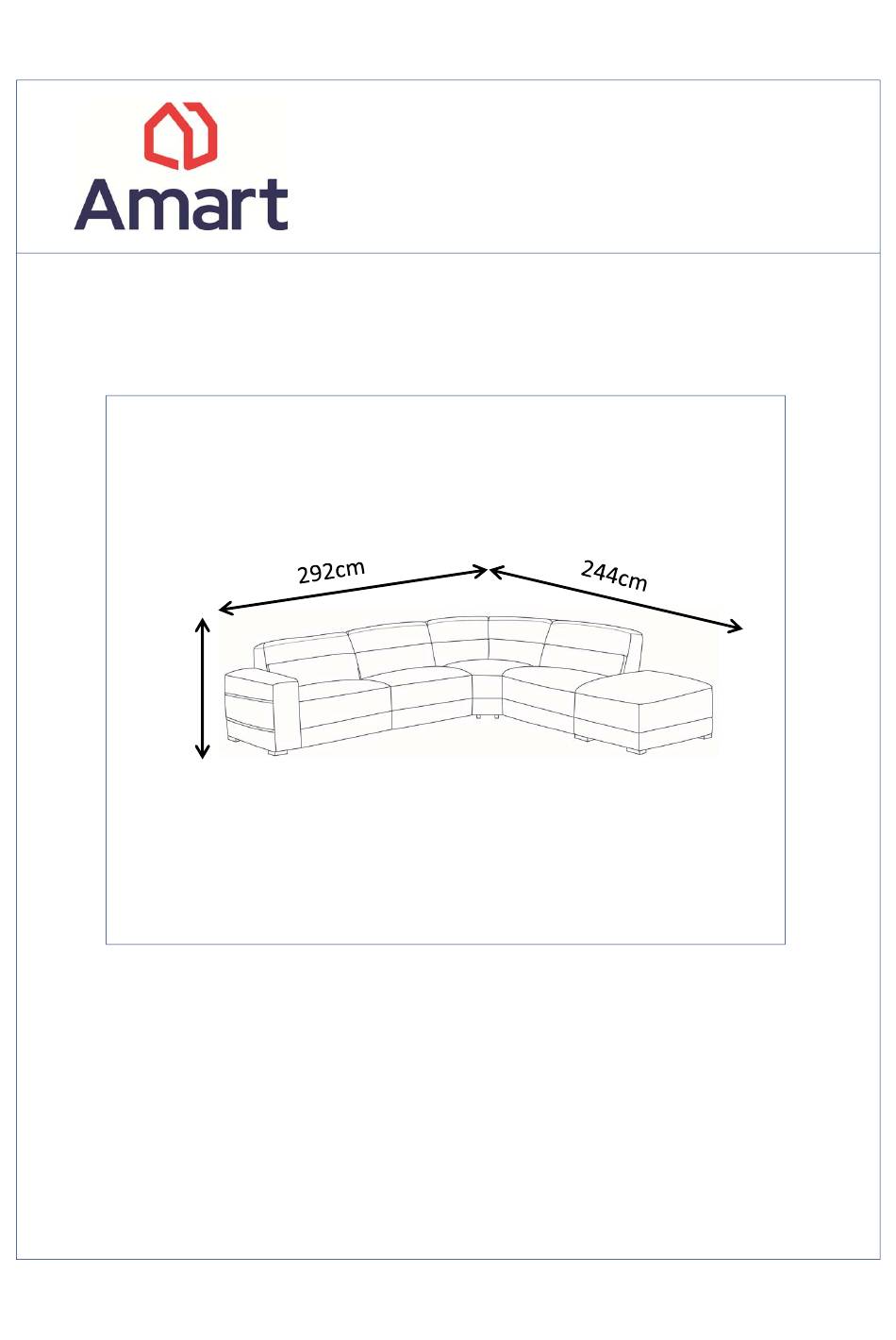

ASSEMBLY INSTRUCTION
ELLYSE RF CNR
ITEM CODE 80340
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture ELLYSE RF CNR 80340
Summary of Contents for Amart Furniture ELLYSE RF CNR 80340
- Page 1 ASSEMBLY INSTRUCTION ELLYSE RF CNR ITEM CODE 80340 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 85cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084...
-
Page 2: Before You Start
PRE‐ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. - Page 3 Step1: Locate package of sofa legs with fittings that is placed into zipper pocket at the bottom of LHF Chair. With 2 people, carefully turn lounge onto back of a piece of cardboard or carpet to protect covering a. Sofa Leg e. Allen key b. Plastic Leg d. Washer c. Bolt M8X50 18*8.5*2mm 4pcs 4pcs 1pairs 1pcs 2pcs f. Bolt M8X60 g. Washer 25*8.5*2mm 2pcs 2pcs Step2: Tighten the pair of sofa legs (a) to the bottom of LHF Chair with bolts (c) and washers (d) by Allen key (e). Front Arm Side Front Back clockwise turning of Allen key for tighten of bolts Back...
- Page 4 Step3: Tighten the plastic legs (b) to the bottom of LHF Chair with bolts (c) and washers (d) by Allen key (e). Front Arm Side clockwise turning of Allen key for tighten of bolt Back Step4: Locate the upper backrest that is placed on seat cushion of the LHF Chair.
- Page 5 Step5: Tighten the upper backrest to the lower backrest of LHF Chair with bolts (f) and washers (g) by Allen key (e). Step6: Locate package of sofa legs with fittings that is placed into zipper pocket at the bottom of Armless Chair. With 2 people, carefully turn lounge onto back of a piece of cardboard or carpet to protect covering c. Bolt M8X50 b. Plastic Leg d. Washer e. Allen key 18*8.5*2mm 4pcs 4pcs 1pcs 4pcs g. Washer f. Bolt M8X60 25*8.5*2mm 2pcs 2pcs...
- Page 6 Step7: Tighten the plastic legs (b) to the bottom of Armless Chair with bolts (c) and washers (d) by Allen key (e). clockwise turning of Allen key for tighten of bolt Step8: Repeat steps 4‐5 for Armless Chair backrest assembly. Step9: Locate package of sofa legs with fittings that is placed into zipper pocket at the bottom of Wedge. With 2 people, carefully turn lounge onto back of a piece of cardboard or carpet to protect covering c. Bolt M8X50 b. Plastic Leg d. Washer e. Allen key 18*8.5*2mm 5pcs 5pcs 1pcs 5pcs...
- Page 7 Step10: Tighten the plastic legs (b) to the bottom of Wedge with bolts (c) and washers (d) by Allen key (e). clockwise turning of Allen key for tighten of bolt Step11: Locate package of sofa legs with fittings that is placed into zipper pocket at the bottom of RHF Terminal Chair. With 2 people, carefully turn lounge onto back of a piece of cardboard or carpet to protect covering h. Sofa Leg e. Allen key b. Plastic Leg c. Bolt M8X50 d. Washer 18*8.5*2mm 4pcs 4pcs 1pairs 2pcs 1pcs f. Bolt M8X60 g. Washer 25*8.5*2mm 2pcs 2pcs...
- Page 8 Step12: Tighten the pair of sofa legs (h) to the bottom of RHF Terminal Chair with bolts (c) and washers (d) by Allen key (e). Front clockwise turning of Allen key for tighten of bolts Front Back Back Back Step13: Tighten the plastic legs (b) to the bottom of RHF Terminal Chair with bolts (c) and washers (d) by Allen key (e). Front clockwise turning of Allen key for tighten of bolt Back...
- Page 9 Step14: Repeat steps 4‐5 for RHF Terminal Chair backrest assembly. Step15: Connect 4 pieces from right to left. Begin with the right hand facing terminal chair, then wedge, then armless chair and left hand facing chair finally. Slide the base clips together then press the front and rear sides to ensure the clips are connected all the way to the bottom.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE FABRIC CARE REGULAR CARE: PROTECT FROM DIRECT SUNLIGHT. VACUUM REGULARLY USING LOW SUCTION. ROTATE REVERSIBLE CUSHIONS REGULARLY. CLEANING: DO NOT REMOVE CUSHION COVERS FOR SEPARATE CLEANING EVEN THOUGH THEY HAVE ZIPPERS. DO NOT WASH DO NOT DRY CLEAN DO NOT SHAMPOO CLEAN CLEAN WITH HOT‐WATER EXTRACTION MACHINE. (HOT) PROFESSIONAL CLEANING RECOMMENDED. DO NOT USE DISHWASHING OR LAUNDRY DETERGENTS. USE ONLY UPHOLSTERY DETERGENTS DO NOT WET FILLING DRY IN SHADE AWAY FROM DIRECT HEAT AND SUNLIGHT ALLOW TO DRY THOROUGHLY BEFORE RE‐USE SPOT CLEANING: DO NOT RUB DO NOT SPOT CLEAN WITH ANY SOLVENT. TREAT SPILLS AND STAINS AS SOON AS POSSIBLE. GENTLY SCRAPE ANY SOIL OR MOP ANY LIQUID FROM THE SURFACE OF THE FABRIC. APPLY PROPREITARY CLEANING AGENTS STRICTLY ACCORDING TO INSTRUCTIONS TO REMOVE THE RESIDUE OF THE SPILL. DO NOT SATURATE THE FABRIC OR INTERIOR WITH WATER OR OTHER CLEANING LIQUIDS. WARNING: APPLY ONLY WATER‐BASED SOIL RESIST (FABRIC PROTECTION) TREATMENTS. DO NOT USE AEROSOL PRODUCTS.
