Valcom VE2978 Manual

INTRODUCTION

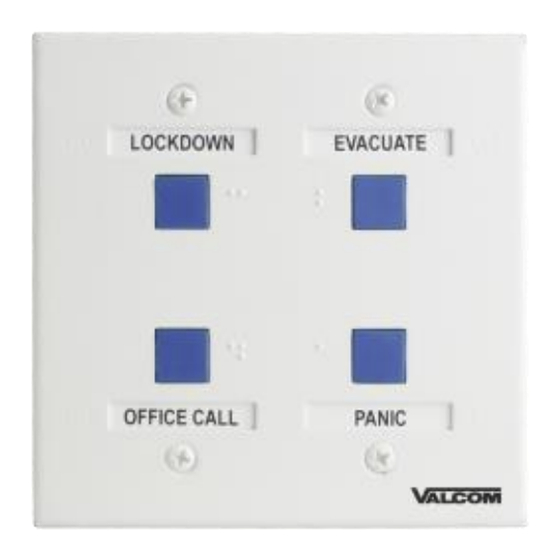

The VE2978 4 Button Multifunction Switch is an
accessory for Valcom IP Speakers and
Speaker/Clocks to provide four inputs (contact
closures) for user-defined functions. When used
with other Valcom equipment, the buttons can be
used to trigger events such as Lockdown, Call for
Assistance, Code Blue, etc.
SPECIFICATIONS
Features

Four buttons in one assembly

Fits a standard two-gang electrical box

Customizable button labels

Pre-printed and blank labels included

Braille characters embossed beside each
button (1, 2, 3, 4 / A, B, C, D)
Environment
Temperature:
Humidity: 0 to 85% Non-Precipitating
Dimensions/Weight

4.55" H x 4.55" W x 1.00" D
(11.55cm x 11.55cm x 2.54cm)

Weight: 0.40 lbs. (0.18 kg)
Precautionary Designations
 WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
 AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à la
pluie ou à l'humidité.
• Apparatus shall not be exposed to dripping
or splashing and no objects filled with
liquids, such as vases, shall be placed on
the apparatus.
• L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun
Objet Rempli de liquide, comme vase, ne
doit être placé sur l'appareil.
VE2978
4 Button Multifunction Switch
0 to +40° C
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment.
This equipment generates, uses and can
radiate radio frequency energy and if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential
area may cause harmful interference in which
case the user will be required to correct the
interference at their own expense.
RISK OF ELECTRIC SHOCK
CAUTION: To reduce the risk of electric shock,
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
1
CAUTION
DO NOT OPEN
Do not remove cover.
947603
ISSUE 1
