Valcom V-2976 Quick Start Manual

RED EMERGENCY CALL SWITCH
INTRODUCTION

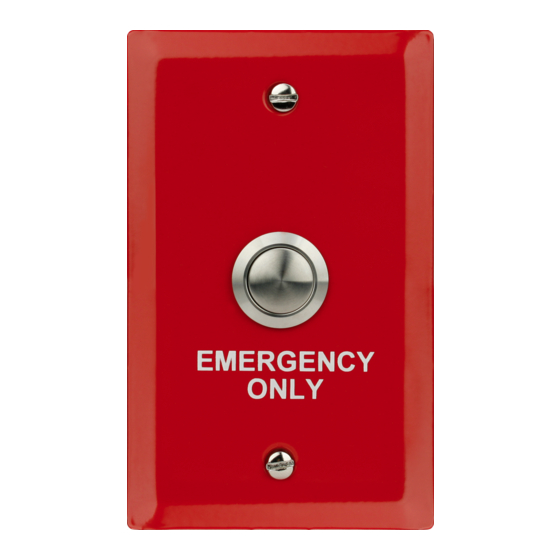

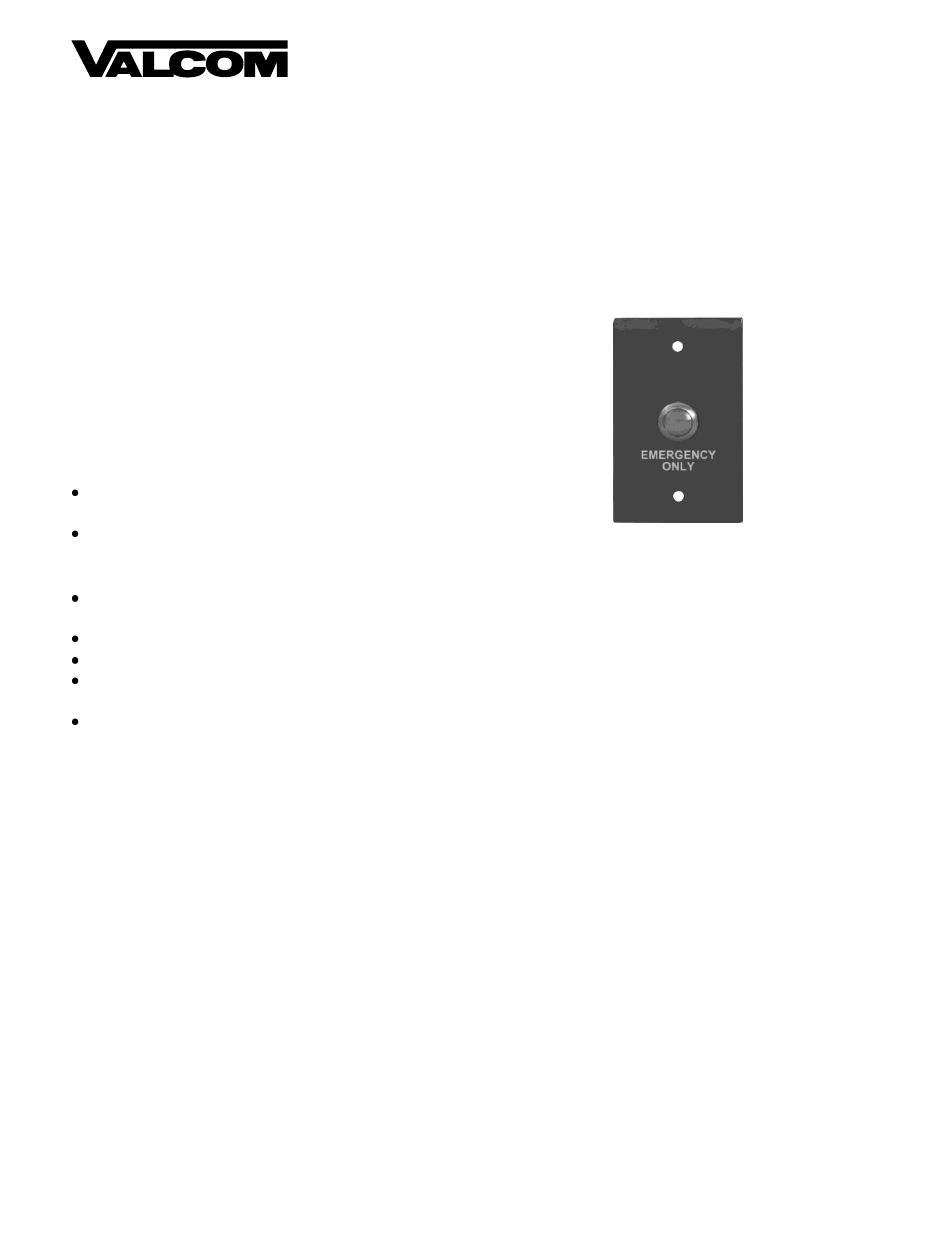

The V-2976 Red Emergency Call Switch is
designed to be used with Talkback Page Control
Units with the remote calling feature. The
V-2976 provides a vandal resistant momentary
spring return switch for connection to customer
provided signaling equipment.
DIMENSIONS/WEIGHT
4.50" H x 2.75" W x 1.50" D
(11.43cm H x 6.99cm W x 3.81cm D)
0.2 lbs. (0.09 kg)
FEATURES
Designed to fit in a standard single-gang
electrical box.
No external power source required.
Stainless steel vandal resistant call button.
18 gauge steel plate finished in high-gloss
red enamel.
"EMERGENCY ONLY" screened in white
lettering below the call button.
CONNECTIONS/SETUP
1. Connect switch leads from paging control
unit to the two screw terminals on the rear of
the V-2976, as shown in the connection
diagram.
2. Place V-2976 over standard single-gang
electrical box with minimum depth of
2 inches and fasten in place using the two
#6-32 screws provided.
V-2976
TECHNICAL ASSISTANCE
When trouble is reported, verify that there are no
shorts or grounds on cabling.
Assistance in troubleshooting is available from
the factory. When calling, you should have a
VOM, a telephone test set available and call
from the job site. Call (540) 563-2000 and press
1 for Technical Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person
and the nature of the problem. Send the unit to:
Repair and Return Dept.
Roanoke, VA 24019-5056
