Summary of Contents for Nibe ClimateMaster iGATE 2

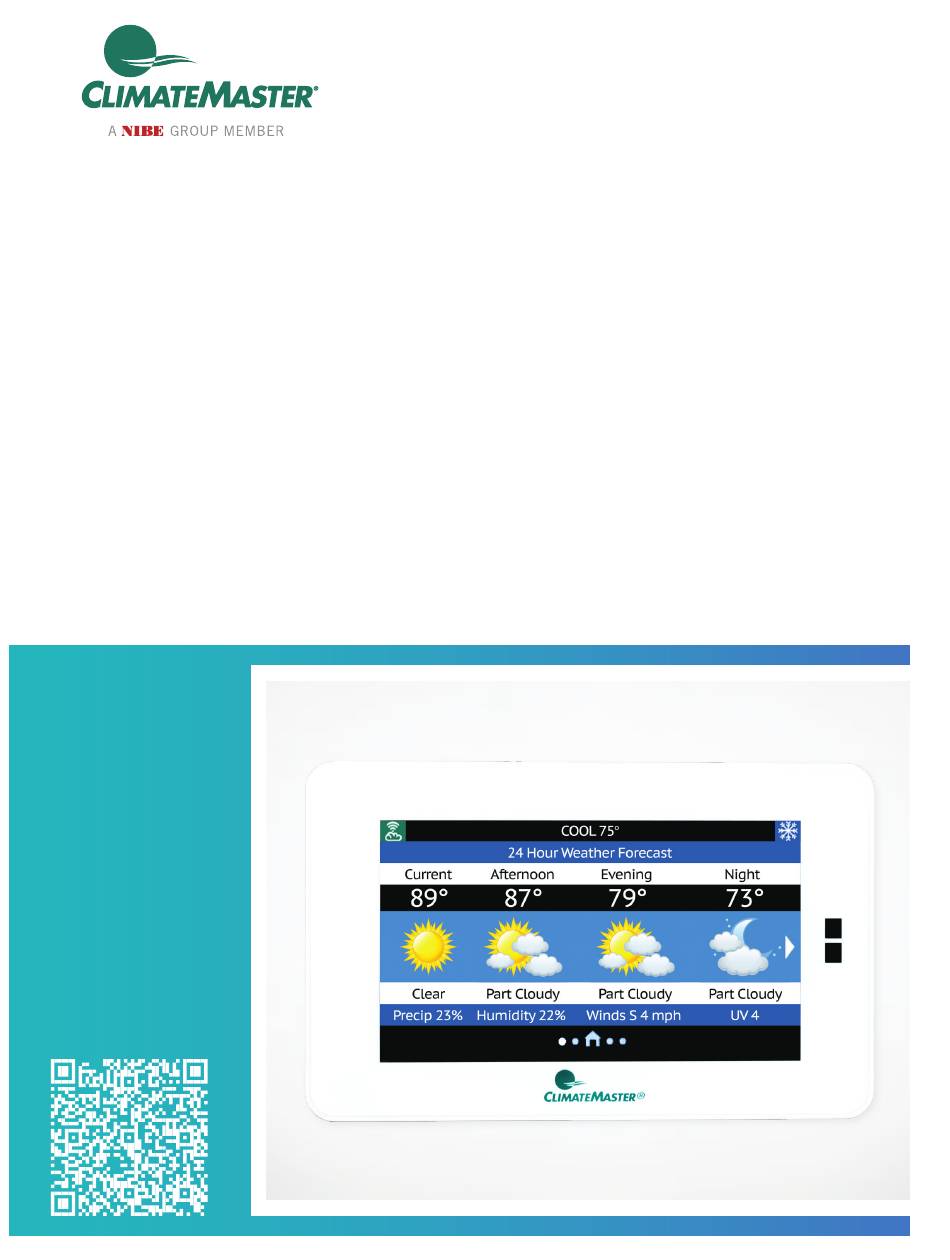

- Page 1 iGATE® 2 COMMUNICATING AWC THERMOSTAT INSTALLATION, OPERATION & MAINTENANCE MANUAL Part#: 97B0132N01 | Revised: February 06, 2025 For use with CXM2 and DXM2.5 Controls AWC99U01...
-
Page 2: Table Of Contents
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Table of Contents Getting Started Equipment Settings Technical Support Configuration Before You Begin Unit Manual Operation Specifications Diagnostics Wiring Requirements Operating Information Installation Notifications and Linking your Account Installation Considerations Notifications Installation Send Invitation to Link Thermostat to myUplink PRO account Wiring Diagram Revision History... -
Page 3: Getting Started
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Getting Started CAUTION These instructions are intended to be used by the installer or service personnel. End users are NOT advised to change or modify any of these settings. Doing so may cause the equipment to stop working properly and/or may void the warranty on both the thermostat and the equipment. TECHNICAL SUPPORT SPECIFICATIONS Our technical support team is available to answer your... -
Page 4: Installation
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Installation INSTALLATION CONSIDERATIONS 2. Remove the faceplate of the current thermostat. Most face plates snap off or feature small screws The thermostat requires no batteries. The thermostat that will need to be removed. is not a power stealing device and MUST have both R and C terminals connected. -
Page 5: Wiring Diagram
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Installation WIRING DIAGRAM 6. Connect wires. a. Match your wire configuration to the Actual area is 3.5313” w x 8.875”h All excess wire should be pushed back into the wall terminals on the base. Reference Diagram 1. as far as possible. -
Page 6: System Configuration
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM System Configuration NOTE: Ensure your mobile device is updated before From the myUplink PRO app: proceeding. myUplink is supported on the latest 6. With your mobile device within 15 feet of version of Android, iOS, and the last two major the thermostat, open then login to your versions of each operating system. -
Page 7: Thermostat Settings
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Thermostat Settings Table 2: User Settings Available remotely (web/mobile) and at thermostat display: Thermostat Setting Description Range/Options Default Configures the Thermostat Name 16 character text input thermostat's displayed name Touch Volume Configure the sound made when touching the thermostat. Off, Click, Beep Click Auto Daylight Savings Time Configures automatic Daylight-Saving Time change in the thermostat. - Page 8 iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Thermostat Settings Table 3: Adavanced Settings Options User Setting Description Range/Options Default Sync time and date with cloud server based on thermostat location, Sync Time to Server No, Yes which is determined by your mobile app or ISP during setup. Configure proximity sensing that changes the screen backlighting from Proximity No, Yes...
-
Page 9: System Settings
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM System Settings Reference the System Configuration section for information on accessing System Settings. Table 5: System Configurations Available remotely (web/mobile) and at thermostat display. System Setting Description Range/Options Default Auto Mode Automatically switch from heating to cooling to maintain the Yes, No Allowed temperature between the setpoints. - Page 10 iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM System Settings Table continued from previous page. System Setting Description Range/Options Default Configures the operational timers within the thermostat to ensure Line Frequency 50 Hz, 60 Hz 60 Hz timing accuracy. Indoor Allows for calibration of the temperature sensor by the selected –10°F to +10°F in 1°F increments 0°F Temperature...
-
Page 11: Humidification And Dehumidification Settings
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM System Settings HUMIDIFICATION AND Table 6: Settings Available at Thermostat Display DEHUMIDIFICATION SETTINGS System Setting Description Options Enables access point mode Humidification logic will communicate a for local connection to the AP Access Yes, Cancel Humidification output when the space humidity thermostat via the myUplink PRO... -
Page 12: Equipment Settings
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Equipment Settings CONFIGURATION Table 8: Capacity Configuration (applies to Trilogy units) Table 7: Unit Configuration Range for the capacity settings will depend on The Unit Configuration settings allow the installer to model selection: configure the thermostat to the installed equipment. - Page 13 iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Equipment Settings Table 10: Airflow Configuration Range for the airflow settings will depend on model and capacity selection (in 25 cfm increments). Tranquility systems must be paired with CV ECM fan motors for this functionality to be applicable. Please reference the unit model number located on the unit data plate with the model nomenclature decoder in the unit IOM to determine if your product contains a CV ECM.
- Page 14 iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Equipment Settings Table 11: Loop Configuration Configures the internal vFlow device to the application. The vFlow device will adjust the flow to maintain Δ the selected temperature difference ( T) between the entering and leaving water for the active operating mode.
-
Page 15: Unit Manual Operation
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Equipment Settings Table 14: Smart Tank Configuration (applies to Trilogy units) Configure the hot water mode settings. System Setting Description Range/Options Default When Hot Water Efficiency is enabled (ON) the AWS backup electric elements will operate when the connected heat pump is locked out or when the heat pump cannot keep up with the Hot Water Efficiency household hot water demand. -
Page 16: Diagnostics
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Diagnostics OPERATING INFORMATION Blower Diagnostics Data Unit Description The Diagnostics data set allows the service Instantaneous power ECM Blower Power technician to view the real time status of all physical consumption of the blower. inputs, switches, temperature sensor readings, as CV ECM Blower Speed Current blower speed. - Page 17 iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Diagnostics Refrigerant Valve Diagnostics (applies to Trilogy units) Hot Water Diagnostics (If Available) Data Description Data Unit Description RV1 Status Status of the RV1 (potable water heating) Control Voltage Hot water tank’s control voltage. (QE models only) reversing valve.
-
Page 18: Notifications And Linking Your Account
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Notifications and Linking your Account SEND INVITATION TO LINK THERMOSTAT TO NOTIFICATIONS myUPLINK PRO ACCOUNT The AWC Thermostat can generate alerts if the To ensure an on–going service relationship with temperature in the home goes over or under a your customer, link the AWC Thermostat to your pre–programmed level. - Page 19 iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Notes w w w. c l i m a t e m a s t e r. c o m P a r t # : 9 7 B 0 1 3 2 N 0 1 | R e v i s e d : F e b r u a r y 0 6 , 2 0 2 5 PA G E : 1 9...
-
Page 20: Revision History
iGATE 2 COMMUNICATING (AWC) THERMOSTAT – IOM Revision History Date Section Description Updated formating and visual style System Configuration Added samples of mentioned on-screen buttons 02/06/2025 Thermostat Settings Updated sample Thermostat Settings screen Updated temperature ranges for Indoor Temperature Offset, Max. Heat Setpoint, System Settings and Min.
