Summary of Contents for EOS Pipe

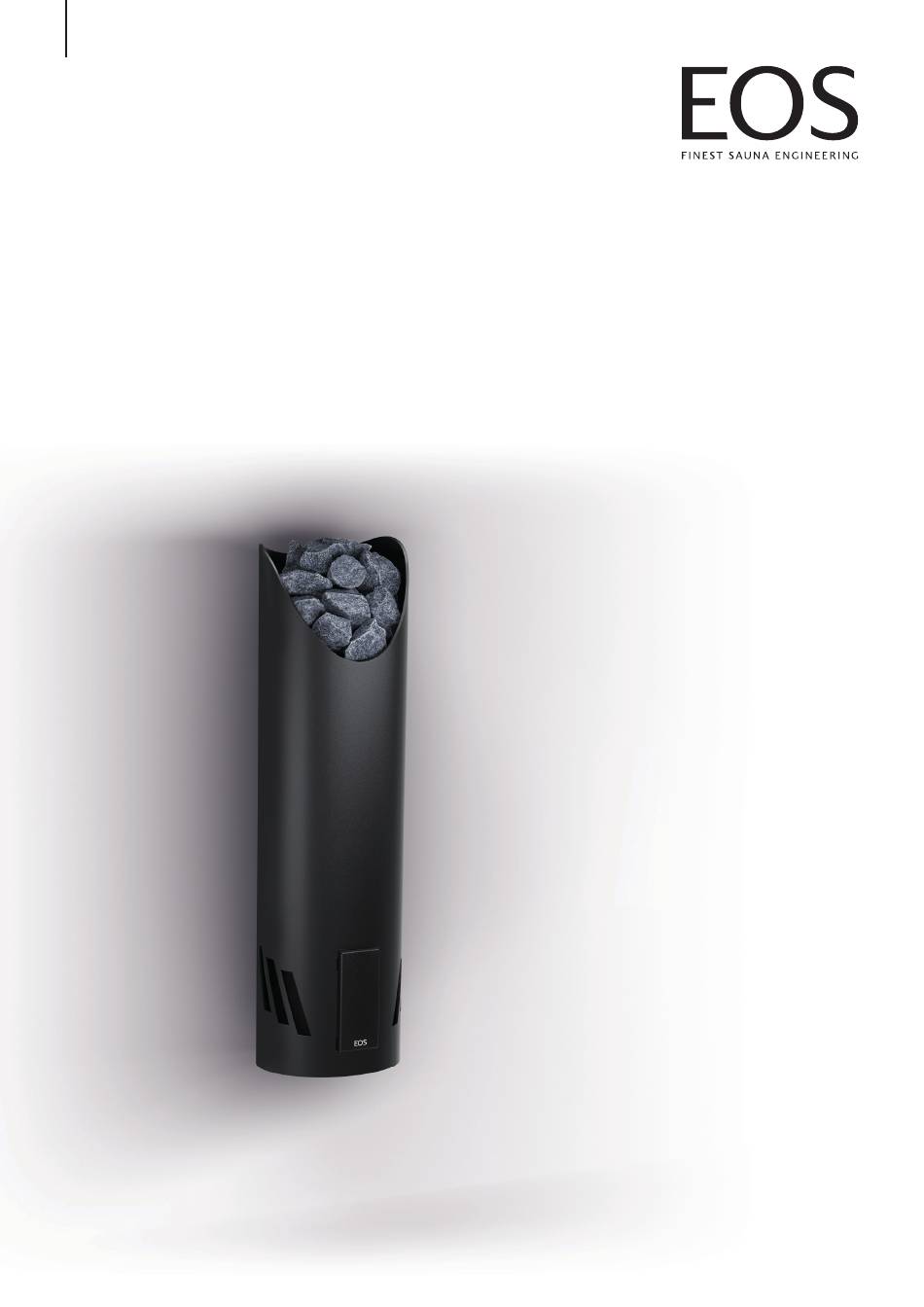

  • Page 1 EOS Pipe Sauna heater Installation and Operating Instructions...
  • Page 2 EN-2 Installation and Operating Instructions - EOS Pipe...
  • Page 3: Documentation

    Original installation instructions EN Copyright for these installation instructions remains with EOS Saunatechnik GmbH. Protective note according to DIN ISO 16016: The copying and distribution of this document, as well as the use and communication of its contents without express authorisation, are not permitted. Compensation will be claimed in the event of infringements.
  • Page 4: Table Of Contents

    6.2 Sauna stones ........................28 Maintenance 7.1 Replacing the tubular heating elements ..............29 Troubleshooting ........................34 Warranty conditions ......................35 10 General terms and conditions of service ..............36 11 Disposal ............................38 EN-4 Installation and Operating Instructions - EOS Pipe...
  • Page 5: General Safety Instructions

    The sauna heater may not be placed on a fl oor made of easily ƒ fl ammable material (e.g. laminate or synthetic fl ooring). Ceramic tiles are recommended as a fl ooring option. EOS - Installation and Operating Instructions EN-5...
  • Page 6 This control unit is fixed to a suitable location on the cabin’s external wall, and the corresponding temperature sensor according to the installation instructions that accompany the control units inside the sauna cabin. EN-6 Installation and Operating Instructions - EOS...
  • Page 7: Operator Instruction

    Spending time in a sauna cabin can lead to serious health risks or even death for persons with health impairments. Persons with health impairments who spend time in a sauna ƒ must consult a doctor before entering a sauna cabin. EOS - Installation and Operating Instructions EN-7...
  • Page 8 Children and persons who have not received proper instruction ƒ must not clean or service the system. EN-8 Installation and Operating Instructions - EOS...
  • Page 9: Safety Levels

    Local regulations also apply to the installation and operation of heating, sauna, and steam room systems. EOS - Installation and Operating Instructions EN-9...
  • Page 10: Identification

    Identification Identification EOS Pipe is an electrically heated sauna heater for Finnish mode available in a variety of output capacities. 2.1 Requirements for operation The heater must be operated with an EOS control units. The control unit is not included in the scope of delivery.
  • Page 11: Foreseeable Misuse

    ƒ The first time the cabin is heated, you may notice a slight odour resulting from the evaporation of consumables used in the manufacturing processes. Air out your cabin once it has been heated and before using the sauna. EOS Pipe - Installation and Operating Instructions EN-11...
  • Page 12: Scope Of Delivery

    G Installation and Operating Instructions  General view of the sauna heater and scope of delivery 2.7 Accessories (optional) Accessories Isometry Item no. Colour anthracite 949026 Contact guard (railing) 949003 black rust brown 949027 EN-12 Installation and Operating Instructions - EOS Pipe...
  • Page 13: Technical Data

    Connection mains – power 3 x 1,5 mm² sauna heater unit Connection control unit 3 x 2,5 mm² sauna heater All line cross-section specifications are the minimum cross-sections of a copper line. EOS Pipe - Installation and Operating Instructions EN-13...
  • Page 14: Installation

    A heater guard rail must be mounted around the upper edge of the heater. It ƒ prevents accidental contact with hot parts of the heater. Required heater capacity depends on the cabin volume. See Technical Data. ƒ EN-14 Installation and Operating Instructions - EOS Pipe...
  • Page 15 Minimum distances and dimensions Cabin ceiling Temperature sensor Cabin wall Sauna heater Air inlet Example of wall mounting Example corner mounting 12 cm 12 cm Ø 22 cm 2 cm ~2,4 cm EOS Pipe - Installation and Operating Instructions EN-15...
  • Page 16: Air Inlets And Outlets

    However, if too little fresh air reaches the heater, a fan must be fi tted outside the cabin by the vent. min. 30 cm ~20-25 cm positions of the supply air opening EN-16 Installation and Operating Instructions - EOS Pipe...
  • Page 17: Temperature Sensor

    For placement, see  Minimum distances and dimensions NOTICE Malfunction due to damaged temperature sensor The temperature sensor is protected by its housing. Ensure that the housing and the temperature sensor are not ƒ damaged during operation. EOS Pipe - Installation and Operating Instructions EN-17...
  • Page 18: Installation Preparation

    Detach the wall bracket from the chipboard and prepare it for further heater installa- tion. Packaging contents and chipboard can be disposed of. Chipboard Wall bracket Silver chipboard screws (for fixing wall bracket) EN-18 Installation and Operating Instructions - EOS Pipe...
  • Page 19: Installing The Heater

    Holes for installation of the standard wall attach- ment (4x chipboard screws 4x40) Drill holes only relevant in conjunction with the corner attachment (accessory) Holes for locking screws Locking screws 4.2 x 9.5 EOS Pipe - Installation and Operating Instructions EN-19...
  • Page 20: Corner Installation

    Hook in the heater and connect and secure the locking plate (C) with the ƒ locking screw (D). Wall bracket 8 chipboard screws 5 x 35 Locking plate Locking screw 4.2 x 9.5 2 fixing screws 5 x 35 EN-20 Installation and Operating Instructions - EOS Pipe...
  • Page 21: Heater Guard Rail

    The heater is connected to the power supply via the connection cable with plug out- side the cabin. Observe the regulations of the local power supply company (EVU) and the Association for Electrical, Electronic & Information Technologies (VDE). EOS Pipe - Installation and Operating Instructions EN-21...
  • Page 22: Electrical Installation

    If, during commissioning, the RCD is triggered, the electrical installa- tion must be checked again. The electrician is responsible for properly connecting the heater; thus, the manufac- turer does not assume liability. EN-22 Installation and Operating Instructions - EOS Pipe...
  • Page 23: Wiring Diagram

    Risk of fi re due to improper mounting The sauna heater unit must be suitable for connection to 230 V 1N ~. Use suitable fuses and cable lines. ƒ Internal wiring ► N PE (Gr) EOS Pipe - Installation and Operating Instructions EN-23...
  • Page 24: Filling With Stones

    Start the sauna heater only if it has been fi lled with stones. ƒ Ensure stones with the correct caliber are used: ƒ Place the stones loosely. Make sure you use stones of the correct ƒ size EN-24 Installation and Operating Instructions - EOS Pipe...
  • Page 25: Starting The Sauna Heater

    5.3 Switching the heater on remotely If you switch on the heater remotely, ensure that no objects are placed on the heater. A suitable safety system can be used to prevent this. EOS Pipe - Installation and Operating Instructions EN-25...
  • Page 26: Water Splash

    This time is needed for the sauna stones to reheat. Recommendation: During a water splash, no more than approx. 10 cL of water per m³ cabin volume should be vaporised. EN-26 Installation and Operating Instructions - EOS Pipe...
  • Page 27: Service

    Remove lint and dust from openings and heat refl ectors. Openings can easily be- come blocked with lint and dust as fresh air is drawn in. This limits the air convec- tion ability of the heater and could lead to impermissible temperatures. EOS Pipe series - Installation and Operating Instructions EN-27...
  • Page 28: Sauna Stones

    Rinse all stones with cold water. Place the stones loosely so that there is enough space between them for air to circulate sufficiently, see Commissioning. EN-28 Installation and Operating Instructions - EOS Pipe series...
  • Page 29: Maintenance

    A Outer casing complete. B Connection unit (console) C Earthing bracketl ► Dismantling the console from the outer casing First remove the front cover (A) A Front cover EOS Pipe - Installation and Operating Instructions EN-29...
  • Page 30 The inner workings are now unfixed and you can remove the complete control unit from the top of the heater. Please proceed carefully to avoid damaging the paint- work. A Inner jacket B Connection unit C Outer jacket EN-30 Installation and Operating Instructions - EOS Pipe...
  • Page 31 You can now separate the inner casing (E) from the junction box (C). To do this, place it on its side. Junction box cover B Earthing bracket Junction box Base plate Inner jacket EOS Pipe - Installation and Operating Instructions EN-31...
  • Page 32 Then guide the inner housing back over the tubular heating elements and fit the base plate. Then close the junction box, fit the earthing bracket and guide the control unit into the outer housing. EN-32 Installation and Operating Instructions - EOS Pipe...
  • Page 33 Feed the connection cable through the cable gland. Connect the connection cables. Hang the heater back into the wall bracket. Secure with the locking screw. Insert stones. Sauna heater is ready for operation again. EOS Pipe - Installation and Operating Instructions EN-33...
  • Page 34: Troubleshooting

    Troubleshooting Troubleshooting Error Reason Solution It takes the heater a long One or more than one heating Have a technician replace the time to heat up the cabin. element is defective. tubular heating element. There is not enough space Reshuffle the stones. between the stones.
  • Page 35: Warranty Conditions

    Manufacturer‘s warranty Statement You can obtain an extended manufacturer‘s warranty for this product. To do this, you must register the product with EOS Saunatechnik GmbH. The warranty period begins when the product is registered. This must be done within three months of the date of purchase.
  • Page 36: General Terms And Conditions Of Service

    General Terms and Conditions of Service General Terms and Conditions of Service (T&C, Dated 08-2018) Scope Unless otherwise agreed in writing for specific instances, these terms and conditions of service apply to service operations, including checking and remedying complaints. All our existing or future legal relationships shall be governed solely by the following terms and conditions of service.
  • Page 37: Manufacturer's Warranty

    Complaints in respect of our products shall be reported to the responsible distributor and shall be handled exclusively by said distributor. The manufacturer’s General Terms and Conditions of Business, in the version available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service.
  • Page 38: Disposal

    ƒ Plastic foil Electronic waste ► Electronic waste must be disposed of at the designated local collection point for elec- tronic waste. Additional disposal instructions for commercial users (DE only) You can fi nd further disposal instructions under www.eos-sauna.com/recycling EN-38...
  • Page 39 EN-39...
  • Page 40: Made In Germany

    made in Germany Stand 30/2024 IPx4 Druck-Nr. 2901 5443 Technical changes reserved...
