CORE PREP
OPERATOR'S MANUAL
CPS800
SCARIFIER
OCTOBER, 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPS800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Diamond Products CPS800

Summary of Contents for Diamond Products CPS800

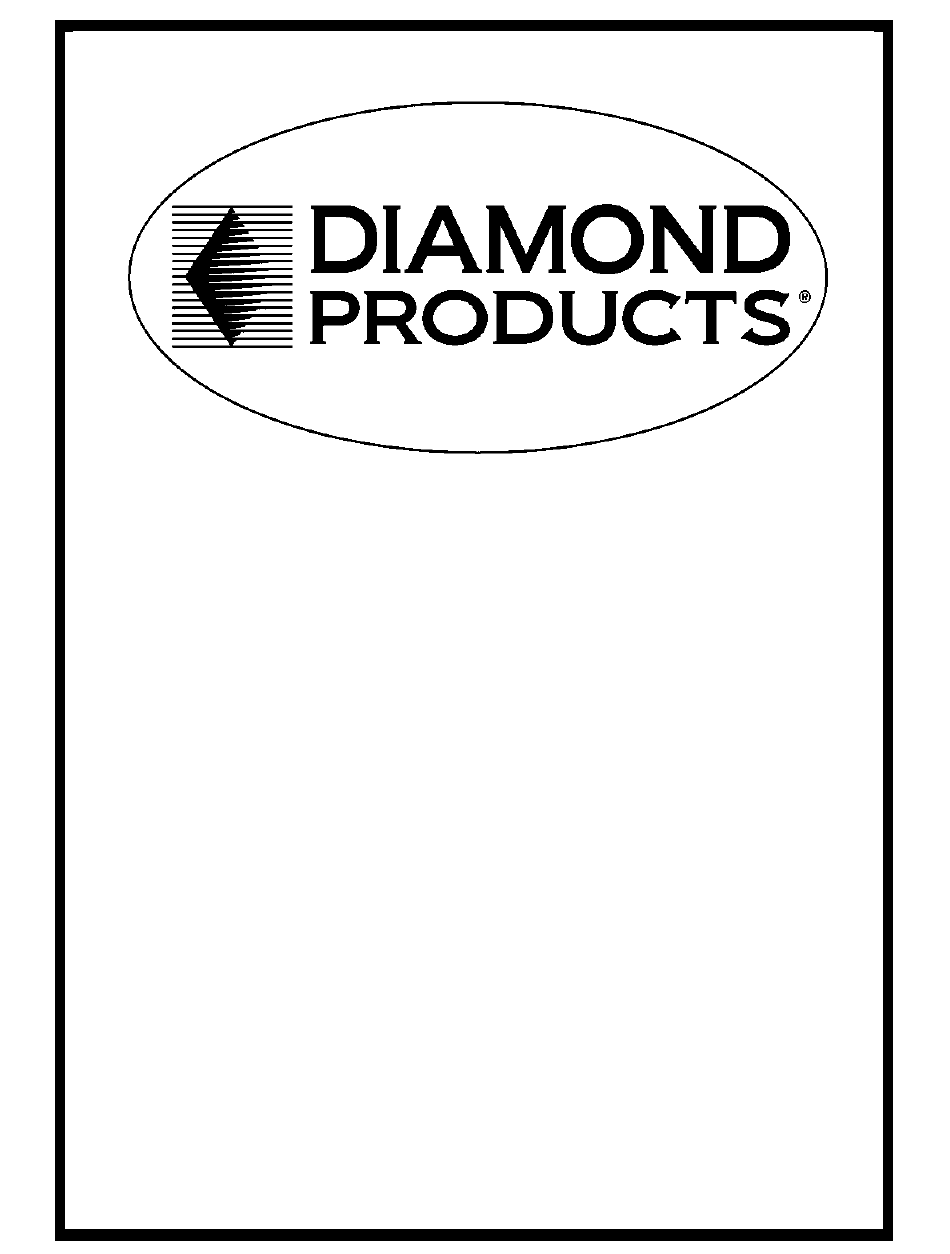

  • Page 1 CORE PREP OPERATOR'S MANUAL CPS800 SCARIFIER OCTOBER, 2024...

  • Page 3: Table Of Contents

    Table of Contents Description Page No. 1. General Safety Precautions....................... 1.1. Safety rules for the operation of the Scarifiers/Planers............1.2. Labels on the CPS83E1 floor scarifier..................1.3. Machine type identification label CPS83E1................2. Operating the Machine........................2.1. Range of applications of the CPS83E1..................2.2.

  • Page 4: Product Overview

    Product Overview Product Overview 1 Hand griff 2 Hand wheel 3 Motor switch 4 Motor 5 Front wheel 6 Side plate 7 Rear wheel 8 Lifting lever...

  • Page 5: General Safety Precautions

    General Safety Precautions Safety rules for the operation of the Scarifiers/Planers Information The CPS83E1 floor planer/scarifier has been developed according to existing safety rules and regulations. The technical safety precautions must not be removed or changed under any circumstances. When operating the milling machine, the following points should also be observed: Danger! •...

  • Page 6: Labels On The Cps83E1 Floor Scarifier

    Labels on the CPS83E1 floor scarifier WARNUNG ! NICHT KIPPEN ! Labels on the CPS83E1 floor scarifier 1 Warning - electrical voltage. 2 Read all information carefully. Safety goggles, ear protectors and steel toe shoes must be worn. UP - direction of lifting the tools from the ground. 3 DOWN - direction of lowering the tools to the ground.

  • Page 7: Operating The Machine

    Diamond Products . Specifically for use outside in dry weather. The operation is only permitted with a dust extraction system recommended by Diamond Products .

  • Page 8: Correct Position Of The Cutters In The Drum

    Correct position of the cutters in the drum Danger! Excessive depth adjustment will jam the cutters between the drum shaft and the surface (A). The consequence is the destruction of the cutters, drum shafts and the drum. If the machine has to be lowered, always make sure that the tools can still turn freely on the drum shafts (B).

  • Page 9: Height Adjustment

    CPS800 OPERATOR’S MANUAL If the milling pattern needs to be set, proceed as follows: f Place the planer on an even floor. f Lift the machine with the height adjustment hand wheel, until all the tools are well clear of the floor.

  • Page 10: Changing The Tool Drum

    CPS800 OPERATOR’S MANUAL Changing the tool drum Danger! Before any maintenance, the machine must be brought to a complete stand still. Always disconnect the machine if it is an electric model. f Lift the machine with the lever so that the tools are well clear of the floor.

  • Page 11: Technical Data

    CPS800 OPERATOR’S MANUAL Technical Data Technical Data for the CPS83E1 Parameter CPS83E1 (230V) CPS848G Width of cut 200 mm (8 in) 200 mm (8 in) Machine width 36 cm (14 in) 37 cm (14.5 in) Length of machine 80 cm (31 in) 90-100 cm (35.4 -39.4 in)

  • Page 12: Tools For The Drum

    CPS800 OPERATOR’S MANUAL Tools for the drum Tools for the CT 200® Parameter Value Drum diameter 10.8 cm (4.25 in) Cutter shaft diameter 1.2 cm (0.47 in) Number of shafts TCT cutter 46/5 Milling cutter 46/20 Beam flail Cutter diameter 4.6 cm (1.81 in)

  • Page 13: Maintenance And Cleaning

    CPS800 OPERATOR’S MANUAL 5 Maintenance and cleaning Maintenance and cleaning – All bearings are greased for their life time. Bearings – All joints have to be greased periodically with a standard Height adjustment machine grease. and joints – Check the belts after approximately every 30 hours of ope- Belt drive ration.

  • Page 14: Notes

    NOTES ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...

  • Page 16: Warranty

    (1) year from the date of shipment to Customer. The responsibility of Diamond Products under this Warranty is limited to replacement or repair of defective parts at Diamond Products’ Elyria, Ohio...
