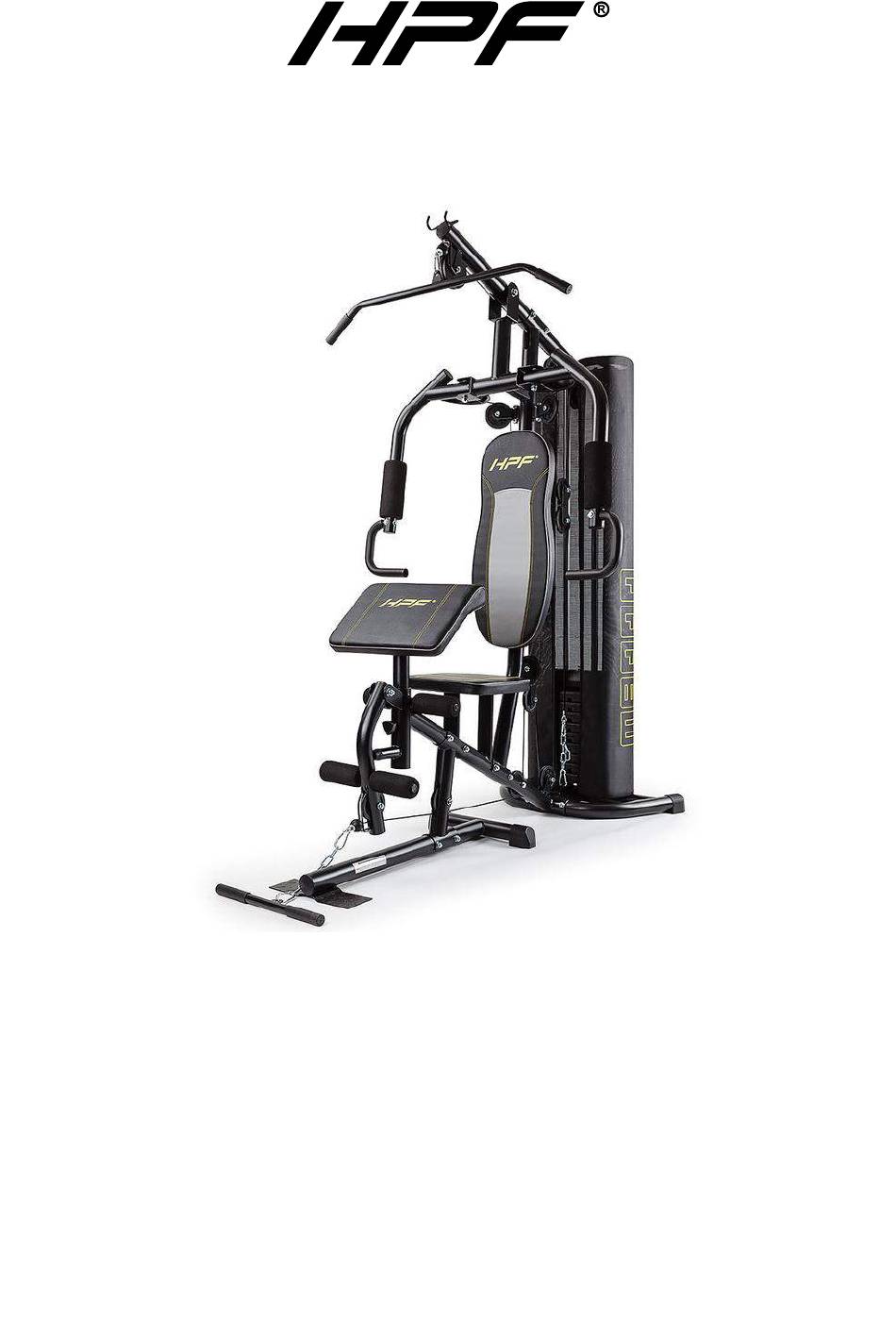

  • Page 1 Multi-function Home Gym User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...

  • Page 2: Table Of Contents

    Multi-function Home Gym Table of Contents Safety ..................................1 Included Items ................................ 2 Set-Up ..................................3 Operation ................................12 Specifications ............................... 13...

  • Page 3: Safety

    Multi-function Home Gym Safety This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: ...

  • Page 4: Included Items

    Multi-function Home Gym Included Items Item No. Description Size Qty. Bolt M12 x 80mm Bolt M8 x 20mm Bolt M10 x 60mm Bolt M8 x 15mm Bolt M10 x 40mm Bolt M10 x 45mm Bolt M10 x 75mm Bolt M12 x 80mm Bolt M10 x 80mm Large...

  • Page 5: Set-Up

    Multi-function Home Gym Set-Up Step 1 The following steps may include some screws that are not in the previous table under Included Items. These screws will be located on a part - Please remove the screws and reuse. 1. Attach the Rear Stabilizer (3) to the Seat Support Tube (4) and tighten by X2 Hex Head Bolt (27), X2 Curve Washer (34) and X2 Nylon Nuts (39).
  • Page 6 Multi-function Home Gym Step 2 1. Attached the Bracket for Cloth Cover L (73L) to the Rear stabilizer (03) and tighten by X2 Hex Head Bolt (77), X2 Washer (78). 2. Do the same procedure for the Bracket for Cloth Cover R (73R) to the right side of Rear stabilizer (03) by the same parts.
  • Page 7 Multi-function Home Gym Step 3 1. Place the Guiding Tube (07) into the Bridge Tube (8) and tighten by X2 Flat Washer (33) and X2 Hex Head Bolt (22). 2. Attach the Bridge Tube (8) to the Upright Support Tube (05) and tighten by X2 Hex Head Bolt (30), X4 Flat Washer (35) and X2 Nylon Nuts (39).
  • Page 8 Multi-function Home Gym Step 4 1. Attach the Backrest (15) to the Upright support tube (05), tighten by X2 Curve Washer (34) and X2 Nylon Nuts (39) through the thread holes on the Upright support tube (05). 2. Attach the Backrest Cushion (59) onto the Upright Support Tube (05) by putting the screw on the Bracket for Backrest (15) into holes on Upright Support Tube (05), tighten by X4 hex Flat washer (35A), X4 Hex held bolt (24).
  • Page 9 Multi-function Home Gym Step 5 1. Attach the Pull Unit (9) to the Bridge Tube (8), insert the Axle for Pull Unit (21) through X2 Powder Metal Ring (31A),X2 Flat washer (36), X2 Nylon Nuts (40). 2. Attach the Butterfly Arm R (10R) to the right side of Pull Unit (9) through X2 Powder Metal Ring (31) and X2Flat Washer (36) and tighten by X1 Nylon Nut (40).
  • Page 10 Multi-function Home Gym Step 6 1. Attach the Cable for Lat Bar (65) to the opening bracket at the front of the Bridge Tube (8). Note: The ball stopper of the Cable (65) should be underneath the Bridge Tube (8). Attach the Cable (65) onto the Small Pulley (49A) and put the Cap for Small Pulley (50) to the two side of Small Pulley (49A).
  • Page 11 Multi-function Home Gym Step 7 1. Attach one end of the Cable for Butterfly Arm (66) to the hook on the Right Butterfly Arm (10R), tighten by X1 Hex Head Bolt (24), X1 Flat Washer (35A) and X1 Nylon Nut (38). 2.
  • Page 12 Multi-function Home Gym Step 8 1. Attach the end with stopper ball of Cable for Lower Pull Bar (67) to the open bracket Leg Curl (6), around the underside of Pulley (49), Then draw the Cable (67) through the opening space on the lower part of Seat post (02), around the Pulley (49) from under side then draw the Cable (67) upward and around the upper side of Pulley (49).
  • Page 13 Multi-function Home Gym Step 9 1. Attached the Bracket for Cloth Cover L (73L) to the Bridge Tube (08) and tighten by X2 Hex Head Bolt (77), X2 Washer (78). 2. Do the same procedure for the Bracket for Cloth Cover R (73R) to the right side of Bridge Tube (08) by the same parts.

  • Page 14: Operation

    Multi-function Home Gym Operation WARNING: Make sure all bolt and nylon nuts are tightened enough before using the machine.

  • Page 15: Specifications

    Multi-function Home Gym Specifications Brand Model M8000 User Weight Capacity 150kgs Included Weights 98lbs Frame Powder-coated steel Seat and Preacher Pad Vinyl covered high-density foam Please Note: Assembly required...
  • Page 16 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
