Summary of Contents for HYDX D35Plus

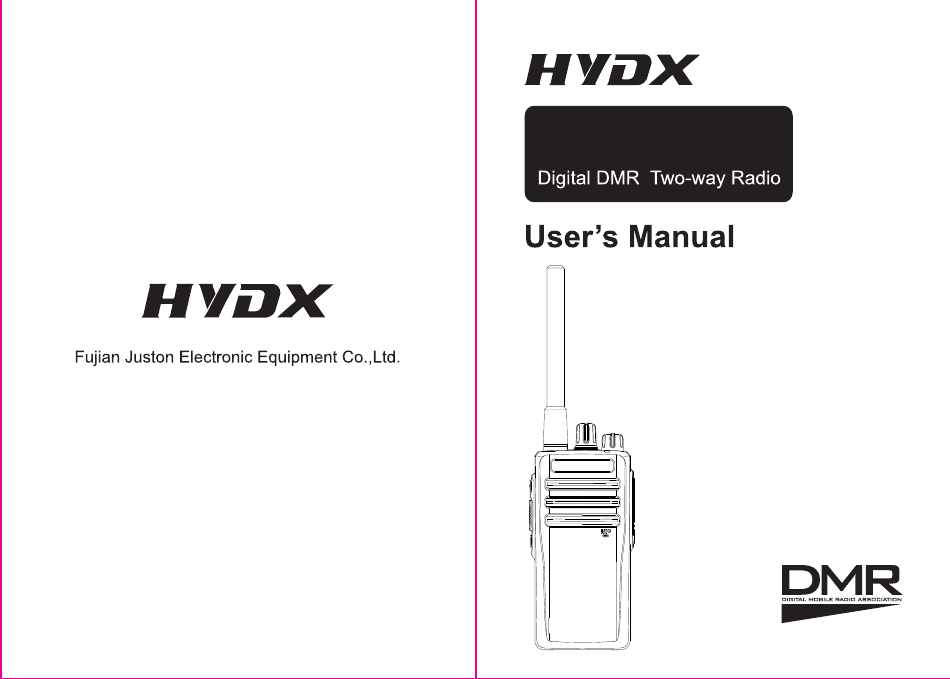

- Page 1 D35Plus www.hydxradio.com...
-
Page 2: Table Of Contents
Contents Brief Introduction Unpacking and Checking Equipment........... 01 Battery Usage Information............02-03 Thank you for buying hand held walkie-talkie. The walkie-talkie Install/Remove Accessories............ 04-05 will provide cost-ef fective communication equipment and perfect Getting Familiar............... 06-08 solutions for various business places. This product uses the Overview................. -
Page 3: Unpacking And Checking Equipment
Unpacking and Checking Equipment Battery Usage Information Welcome to use the wireless walkie-talkie, please check Using the Battery before using: The battery is not completely charged at the factory, please charge Please check the packing box of this product and see if there are it before using. -
Page 4: Install/Remove Accessories
Indicator Display As Following Install/Remove Accessories Status Indicator Installing/Removing the Battery Align the two protruding locating latches above the battery with the Power Connected Orange light is on corresponding slots in the aluminum housing on the back of the radio to ensure that the battery is in full contact and parallel with No battery The light goes out aluminum shell. -
Page 5: Installing/Removing The Belt Clip
Installing/Removing the Belt Clip Getting Familiar If necessary, the randomly configured belt clip can be inserted into the slot on the back of the battery pack for easy carrying. TK(Top Key) Channel Knob Power/Volume Knob Antenna Indicator (Red light at TX/ Orange light at scanning/ Green light at RX) Speaker... -
Page 6: Programmable Key Function
Programmable Key Function: Record Playback (Firmware) Users can set the function of SK1, SK2, TK according to their needs Delete All Record (Firmware) by programming software. Noise Reduction (Firmware) SK1/SK2/TK: Defined programmable key (can be set long/short press function) One-touch Access function below Unassigned (default) All Alert Tones On/Of f None... -
Page 7: Overview
Overview 2. When the programming key is set as a one-touch access to group call, press the corresponding button and press the PTT key Turn On can launch group calling. Clockwise to turn on the radio volume knob, there will be a “KADA” sound, message sound and report the current channel number, while All Call the green light is on. -
Page 8: Menu Operation
Menu Operation ·Remote Monitor: This function allows the radio to be secretly remotely monitored surrounding voice activities without notification. Contact Only the monitored radio ticked the “Remote Radio Decode” on the Contact list can be viewed on contacts after reading frequency by “Digit Emergency System”, it's voice activities can be monitored. - Page 9 2. Code: Before sending the voice, the radio of transmitter will ·Squelch: Filtering out the incoming signals which the intensity is encode the CTCSS/DCS and add it to the voice. This encode will not enough to generate clear to eliminate unwanted noise. The be sent through the carrier.
-
Page 10: Radio Information
·Time out Timer: Time out timer function can prevent the current ·Prompt Tone: Allow users turn on/of f the prompt tone by progr- channel being occupied too long by single user. For the much amming software or preset programming key. Including the setting busier channel, can set shorter TOT. -
Page 11: Digital Emergency Alarm
the repeater slot of each channel according their needs by progra- Note: 1. If channel ticks the “Auto Scan” function, when switched to mming software, there have slot 1, slot 2 to select (The dif ferent this channel, the radio will automatically enter to scan. can appear only the optional of “DCDM Switch”... - Page 12 ·Emergency Alarm w/Voice To Follow (Emergency Alarm and 1. Initiating: Under analog mode, press the programmable key to Voice): Once press “emergency on” key, it will send the emergency start the DTMF call (The programmable key should be set to one alarm message, and the voice can be sent automatically.
-
Page 13: Lone Worker
Lone Worker If your radio receives the privacy calls that with dif ferent encryption The function of lone worker is suitable to the people who meet an keys or dif ferent key values and key IDs, as well as dif ferent type of unexpected situation during work, and can't make keystrokes or privacy calls, you will hear the voice of transmission confusion voice launch in preset time, the radio can automatically enter alarm... -
Page 14: Optional Function
Optional Function Troubleshooting Recording Symptom Solution If the radio has turned on the recording function by programming The battery may have been run out, software, it will segment automatically record the message when please update the battery or recharge it. transmitting or receiving (whether it's in the analog channel or No power Battery may not be properly installed,... -
Page 15: Warranty Card
Warranty Card 6. Defect or damage caused by unauthorized maintenance, disassembly etc. 7. Defects or damage caused by irresistible factors Contact: 8. Have the abrasion in normal use. Company Name: The final interpretation belongs to Fujian Juston Electronic Equipment Company. ADD: Post Code: Tel:...
