Summary of Contents for HYDX D500

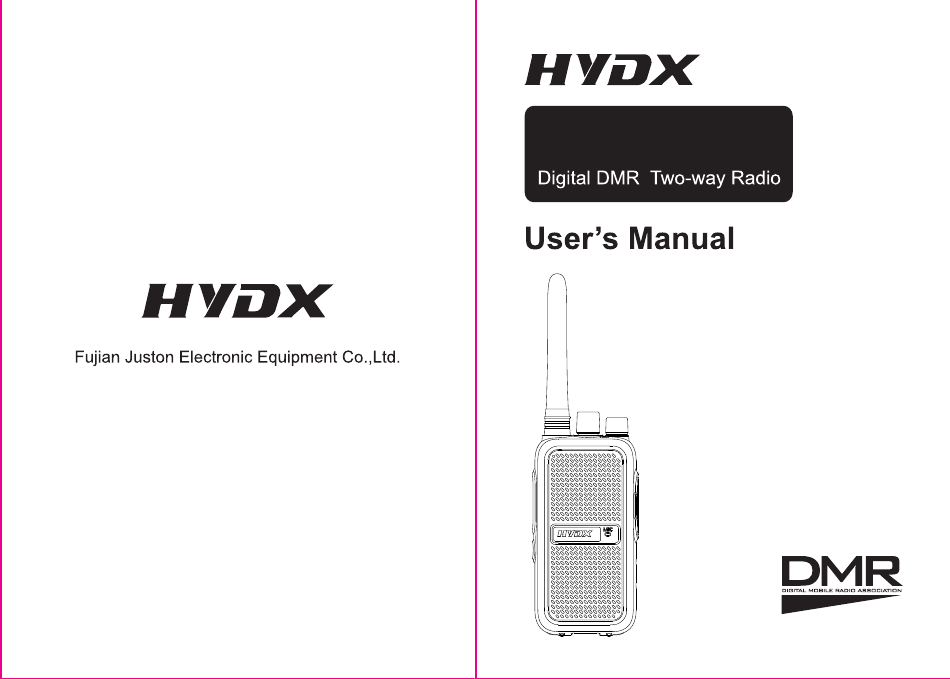

  • Page 1 D500 www.hydxradio.com...
  • Page 2: Table Of Contents

    Contents Brief Introduction Unpacking and Checking Equipment........... 01 Battery Usage Information............02-04 Thank you for buying hand held walkie-talkie. We believe this simple, Install/Remove Accessories............ 05-06 stable, beautiful and widely used in all industries and area of profe- Getting Familiar............... 07-09 ssional wireless communications equipment will give you a great Safety...................
  • Page 3: Unpacking And Checking Equipment

    Unpacking and Checking Equipment Battery Usage Information Welcome to use the wireless walkie-talkie, please check Using the Battery before using: The battery is not completely charged at the factory, please charge Please check the packing box of this product and see if there are it before using.
  • Page 4 Indicator Display As Following 5.To reduce the risk of damage to the cord or plug, pull the plug rather than the cord when disconnecting the charger from the AC Status Indicator receptacle. Power Connected Green light is on 6.Use of an attachment not recommended or sold may result in a No battery Green light is on risk of fire, electric shock, or personal injury.
  • Page 5: Install/Remove Accessories

    Installing/Removing the Belt Clip Install/Remove Accessories If necessary, the randomly configured belt clip can be inserted into Installing/Removing the Battery the slot on the back of the battery pack for easy carrying. Align the two protruding locating latches above the battery with the corresponding slots in the aluminum housing on the back of the radio to ensure that the battery is in full contact and parallel with aluminum shell.
  • Page 6: Getting Familiar

    Getting Familiar Basic Use of Keyboard: Users can set the function of SK1 according to their needs by progra -mming software. Channel Knob Sk1: Defined programming Key(can be set long/short press function) Power/Volume Switch Unassigned (default) Antenna All Alert Tones On/Of f Indicator (Red light at TX Orange light at scanning...
  • Page 7: Safety

    Safety One-touch Access function below Product safety and RF Exposure for hand-held two way None radio Analog---DTMF calling---DTMF contact Before using this two way radio, please read carefully the attached manual instruction in the random incidental for the safe use of the Digital---Calling, Kill, Active, Remote product.
  • Page 8: Overview

    Group Call Overview 1.When the default communication address of the digital channel is Turn On set to group call ID, can press the PTT key to launch group calling. Clockwise to turn on the radio volume knob, there will be a “KADA” 2.On the contact menu, select group call ID then press PTT key to sound, message sound and report the current channel number, while launch a group calling.
  • Page 9: Menu Operation

    When received the group call, in the group call pending time, press Radio Activated: The radio can be activated to restore it to the PTT key can respond the current group call. normal working state. When the “Radio Disable Decode” which on the “Digit Emergency System”...
  • Page 10 CTCSS/DCS (Only support analog channel): The radio analog channel supports the function to ensure the quality of the call, when channels active ATRS function, it must be have the subsonic function (this function can be set in the programming software). Voice output is allowed when the transmitted and received subsonic are match.
  • Page 11 Note: If want to enable this function, the RX frequency and the TX Digital Encryption (Only supports digital channel): Voice frequency must be dif ferent, and the channel must check the talk encryption function can ensure the language communication safety. around function by programming software.
  • Page 12 Scanning Radio Information The radio can support 250 scanning list at most and with a maximum Basic Information: Allow the users to read and consult the basic of 31 members for each scan list, each scan list supports a mixture information of radio by programming software, which including of analog and digital channel, you can add/delete channel or set frequency range, last programmed time, model, serial number, CPS...
  • Page 13 Emergency Alarm Types to send an alarm arrives or press the “emergency of f ” key can exit the alarm. Or press PTT will automatically exit the alarm mode. In Routine: When the radio launches an emergency alarm, the LED the unconventional alarm mode, press the set “emergency of f ”...
  • Page 14: Optional Function

    PTT ID charge the battery timely. If the tone of battery power is played, it means that the battery power is low, should charge the battery as Initiating: Under analog mode, it can set the up/down code of soon as possible. TX will be prohibited after entering to the low DTMF by programming software, when the analog channel enable battery power warning situation.
  • Page 15: Troubleshooting

    Warranty Card Note: 1.Only support the programming software that can select the function Contact: of recording. Company Name: 2.Only support the radio with recording function. ADD: Post Code: Tel: Mob: Troubleshooting Fax: E-mail: Purchasing: Model No: Symptom Solution Serial No: Purchase Date: (S/N): (EAN):...
  • Page 16 STATEMENTS WARNING AND COMPLIANCE STATEMENT: RF Exposure Statement Our device generators RF electromagnetic energy during transmit mode. This FCC Part 15.19 Warning Statement device is designed for and classified as ”Occupational Use Only” meaning it This device complies with part 15 of the FCC Rules. Operation is subject to must be used only during the course of employment by individuals aware of the following two conditions: (1) This device may not cause harmful the hazards and the ways to Minimize Such hazards.
  • Page 17 Attention: This device complieswith IEEE ICNIRP exposure limits occupational/controlled RF exposure emvironment at operating duty factors of up to 50% and is authorized by the FCC for Occupational Use Only. An appropriate warning lable is affixed to all units. In order to comply with RF exposure requirements, a minimum distance of 2.5 cm must be maintained when held-to-face, and body-worn operations are restricted to the approved original acessories (belt clip), a minimum distance of 0 cm.
