Summary of Contents for amzchef IDH1800

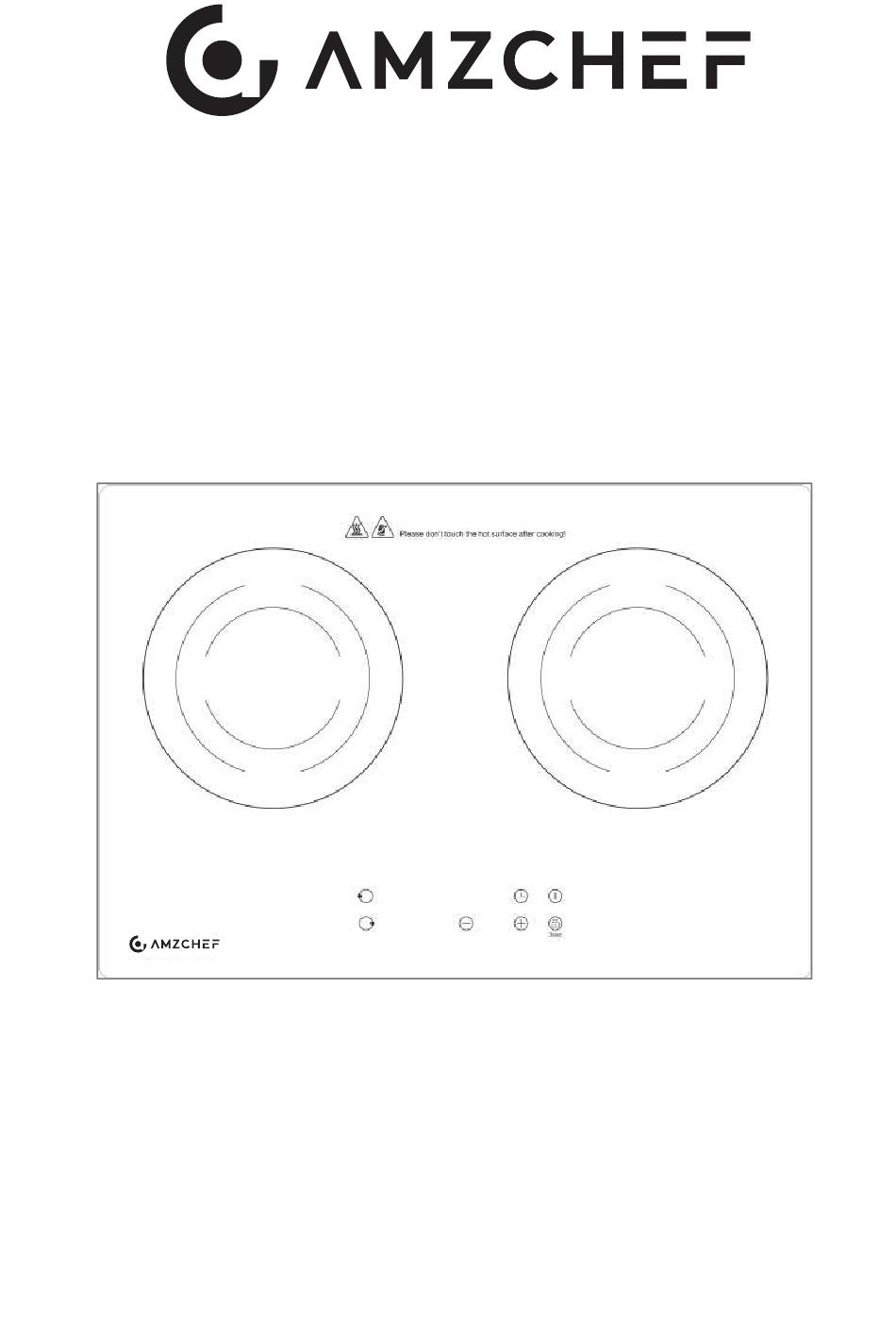

- Page 1 Instruction Manual Induction Cooker Hob BRAND:amzchef MODEL:IDH1800 120V~, 50-60Hz PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Contents Safety Warnings Product Overview Product Information Choosing the right Cookware Using your Induction Hob Cooking Guidelines Heat Settings Care and Cleaning Troubleshooting Technical Specification Installation Warranty... -
Page 3: Safety Warnings
Safety Warnings Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners. ■ This appliance is intended for private domestic use and the household environment only. - Page 4 Risk of burns! CAUTION! HOT SURFACE. ■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch hot surfaces. Keep children at a safe distance. ■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box.
- Page 5 Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.
-
Page 6: Product Overview
Product Overview Top View 1.max. 1800W zone 2.max. 1800W zone 3.Glass plate 4.Control panel Control Panel 1. Left/right zone selection 2. Timer Setting 3. Power/Timer regulation controls 4. Child lock 5. ON/OFF mode level Power(W) 1000 1200 1400 1600 1800 Power Sharing Feature: Power sharing technology is a safety and efficiency feature. -
Page 7: Product Information
Product Information The microcomputer induction cooker hob can meet different kinds of cuisine demands because of electromagnetic induction technology, micro-computerized control and multi- power selection, really the optimal choice for modern families. The induction cooker focus on customer needs and is use-friendly. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life. -
Page 8: Using Your Induction Hob
This cooktop is compatible with magnetic cookwares, such as cast iron, enameled iron,stainless steel, steel,flat-bottom pans/pots. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the induction hob –... -
Page 9: Locking The Controls
the key will flash and show “0”. 4. Select a heating level by touching the “+” or “-” control. • The Initial setting of heating levels is P9. • You can modify the heating setting at any time during cooking. •... -
Page 10: Over Temperature Protection
Touch and hold the key lock control for 3 seconds. The timer indicator will show “Lo”. To unlock the controls 1. Make sure the induction hob is turned on. 2. Touch and hold the key lock control for 3 seconds. 3. -
Page 12: Cooking Guidelines
2. Select a heating zone, set the power level by touching “+” or”-”, and then touch the “Timer” to adjust the time by touching “+” or”-” 3. Select another heating zone, set the power level by touching “+” or”-”, and then touch the “Timer”... -
Page 13: Heat Settings
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be. -
Page 14: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling • When the power to the cooktop 1. Switch the power to the cooktop off. glass (fingerprints, is switched off, there will be no marks, stains left by 2. Apply a cooktop cleaner ‘hot surface’... -
Page 15: Troubleshooting
Troubleshooting Problem Possible causes What to do The cooktop cannot No power. Make sure cooktop Be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician. -
Page 16: Technical Specification
Technical Specification Cooking Hob IDH1800 Cooking Zones 2 Zones Supply Voltage 120V~,50-60Hz Installed Electric Power shared 1800W Product Size L×W×H(mm) 520X360X62 Building-in Dimensions A×B (mm) 500X340 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. - Page 17 Under any circumstances, make sure the induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
