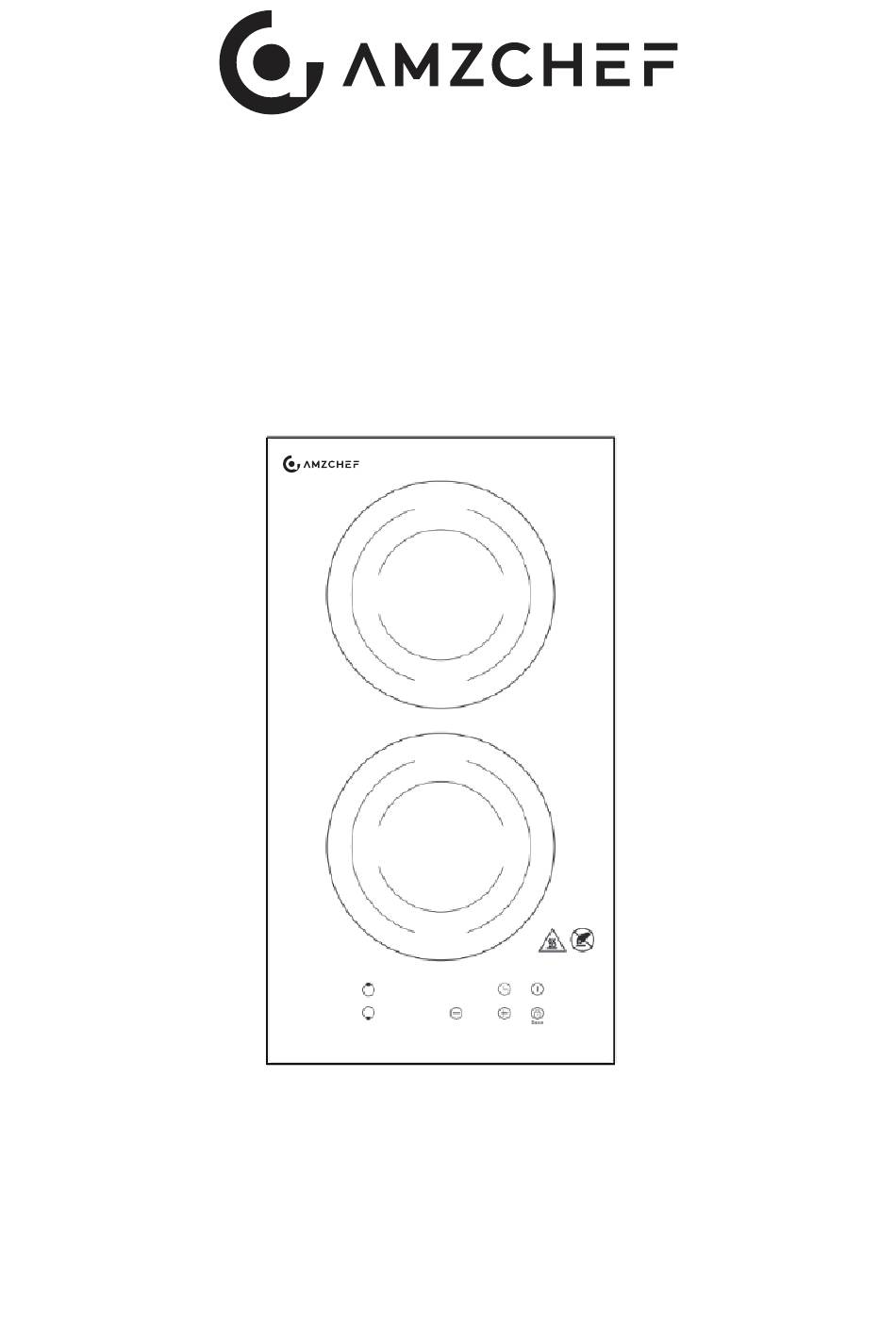

- Page 1 Instruction Manual Induction Cooker Hob BRAND:amzchef MODEL:ID1800 120V~, 50-60Hz 1800W PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Contents Safety Warnings Product Overview Product Information Choosing the right Cookware Using your Induction Hob Cooking Guidelines Heat Settings Care and Cleaning Troubleshooting Technical Specification Installation Warranty... -
Page 3: Safety Warnings
Safety Warnings Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners. ■ This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. - Page 4 Risk of electric shock! ■ Incorrect repairs are dangerous. Repairs may only be carried out by trained engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service. ■...
-
Page 5: Product Overview
Product Overview Top View 1.max. 1800W zone 2.max. 1800W zone 3.Glass plate 4.Control panel Control Panel 1. Upper/lower zone selection 2. Timer Setting 3. Power/Timer regulation controls 4. Child lock 5. ON/OFF mode Level and Power Conversion table level Power(W) 1000 1200 1400... -
Page 6: Product Information
Product Information The microcomputer induction cooker hob can meet different kinds of cuisine demands because of electromagnetic induction technology, micro-computerized control and multi- power selection, really the optimal choice for modern families. The induction cooker focus on customer needs and is use-friendly. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life. -
Page 7: Using Your Induction Hob
This cooktop is compatible with magnetic cookwares, such as cast iron, enameled iron,stainless steel, steel,flat-bottom pans/pots. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the induction hob –... -
Page 8: When You Have Finished Cooking
3. Touching the heating zone selection control, and a indicator next to the key will flash and show “0”. 4. Select a heating level by touching the “+” or “-” control. •The Initial setting of heating levels is P9. •You can modify the heating setting at any time during cooking. •If you don’t choose a heat level within 1 minute, the induction hob will automatically switch off. -
Page 9: Over Temperature Protection
• When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch and hold the key lock control for 3 seconds. The timer indicator will show “Lo”. To unlock the controls 1. Make sure the induction hob is turned on. 2. - Page 10 1. Touching the heating zone selection control that you want to set the timer for. (e.g. zone 1#) 2. Touch timer control, the minder indicator will start flashing and “30” will show in the timer display. 3. Set the time by touching the “-” or “+” control of the timer. Hint: Touch the “-”...
-
Page 11: Cooking Guidelines
(set to 6 minutes) (set to 3 minutes) 2. Select a heating zone, set the power level by touching “+” or”-”, and then touch the “Timer” to adjust the time by touching “+” or”-” 3. Select another heating zone, set the power level by touching “+” or”-”, and then touch the “Timer”... -
Page 12: Heat Settings
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be. -
Page 13: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling • When the power to the cooktop 1. Switch the power to the cooktop off. glass (fingerprints, is switched off, there will be no marks, stains left by 2. Apply a cooktop cleaner ‘hot surface’... -
Page 14: Troubleshooting
Troubleshooting Problem Possible causes What to do No power. The cooktop cannot Make sure cooktop Be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician. -
Page 15: Technical Specification
Technical Specification Cooking Hob ID1800 Cooking Zones 2 Zones Supply Voltage 120V~,50-60Hz Installed Electric Power shared 1800W Product Size L×W×H(mm) 288X520X62 Building-in Dimensions A×B (mm) 270X500 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. - Page 16 Under any circumstances, make sure the induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
