HP Instant On 1830 Installation And Getting Started Manual

HP Instant On 1830 Installation And Getting Started Manual

Hide thumbs Also See for Instant On 1830:

Advertisement

Quick Links

Download this manual

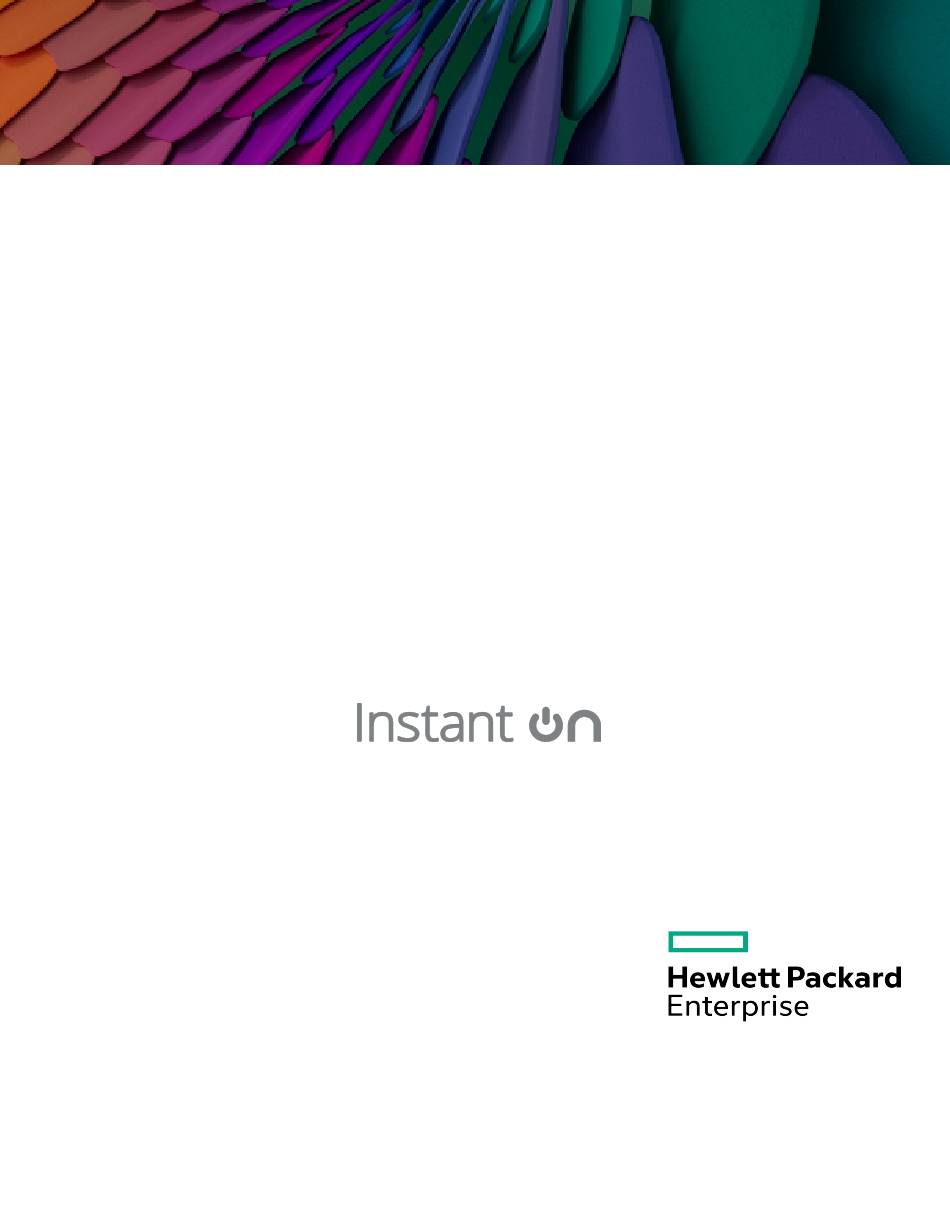

HPE Networking Instant On
1830 Installation and Getting
Started
Published: February 2025
Edition: 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the Instant On 1830 and is the answer not in the manual?

Questions and answers

Related Manuals for HP Instant On 1830

Summary of Contents for HP Instant On 1830

  • Page 1 HPE Networking Instant On 1830 Installation and Getting Started Published: February 2025 Edition: 3...
  • Page 2 Copyright Information © Copyright 2025 Hewlett Packard Enterprise Development LP. Open Source Code This product includes code licensed under certain open source licenses which require source compliance. The corresponding source for these components is available upon request. This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company.

  • Page 3: Table Of Contents

    Basic Troubleshooting Tips Diagnosing with the LEDs Testing the Switch by resetting it Restoring to Factory Defaults Specifications Environmental Specifications Acoustics Safety Standards Cabling and Technology Information Specifications Support Information Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 4: About This Document

    Switch (JL814A) HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) Use with the JL810A HPE Networking Instant On 1830 8G Switch. All other HPE Networking Instant On 1830 switches operate with internal power supplies. Related Publications...

  • Page 5: Overview

    Overview Overview The HPE Networking Instant On 1830 Switch series are designed to meet the needs of small business network environments - simple to setup and manage, secure and reliable. HPE Networking Instant On deployments can be managed through a Mobile App supported on iOS and Android, a cloud portal that is accessible through a web browser, or a local web GUI.
  • Page 6 Item Description Reset pushbutton (recessed) LED Mode pushbutton Figure 3 JL811A Item Description PoE & 1GbE RJ45 ports with Link/Status LED per port 1GbE RJ45 ports with Link/Status LED per port Cloud Status LED Global Status LED UID LED Speed Mode LED PoE Mode LED Reset pushbutton (recessed) LED Mode pushbutton Figure 4 JL812A...
  • Page 7 Figure 7 JL815A Item Description PoE & 1GbE RJ45 ports with Link/Status LED per port 1 GbE RJ45 ports with Link/Status LED per port 1 GbE SFP Ports with Link/Status LED per port Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 8: Network Ports

    Item Description Cloud Status LED Global Status LED UID LED Speed Mode LED PoE Mode LED Reset pushbutton (recessed) LED Mode pushbutton Network Ports Auto-sensing 10/100/1000BASE-T ports: These ports have the “Auto-MDIX” feature, which means that you can use either straight-through or crossover twisted-pair cables to connect any network devices to the switch.
  • Page 9 User experience will be enhanced by minimizing confusion between standards-based PoE from proprietary powering solutions. Gen 1 EA PoE Certified Logo Gen 2 EA PoE Certified Logo Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...
  • Page 10 For more information on EA PoE Certification, visit the Ethernet Alliance website. LEDs The front panel of the switch provides status LEDs for system monitoring. The following table details the functions of the various indicators. State Meaning Global Status On solid (green) The switch has passed self-test and is powered up normally.

  • Page 11: Mode Button

    The 1830 PoE switches have one Mode LED per port. The Mode LED shows either the port speed or the PoE status. In PoE mode, it shows whether the port is configured to provide PoE power. The operation Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 12: Reset Button

    HPE Networking Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) HPE Networking Instant On 1830 24G 2SFP Switch (JL812A) HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) HPE Networking Instant On 1830 48G 4SFP Switch (JL814A) HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) These switches automatically adjust to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz.

  • Page 13: Switch Features

    16 trunks (48-port switches) so you can assign physical ports to a logical trunk group that functions as a single, higher-speed link providing dramatically increased bandwidth. download of new switch software for product bug fixes. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 14: Site Preparation And Switch Installation Precautions

    Note, however, that the preferred position for the fanless HPE Networking Instant On 1830 switches is at the base of the rack or cabinet (for optimal cooling) or below as many of the other products as can be accommodated.

  • Page 15: Prepare The Installation Site

    All HPE Networking Instant On 1830 Switches support table-top mounting. All HPE Networking Instant On 1830 Switches support rack-mounting except JL810A. All HPE Networking Instant On 1830 Switches support wall-mounting with ports facing either up or down. All HPE Networking Instant On 1830 Switches support under-table mounting.

  • Page 16: Installation Space Requirements

    At least 3.8 cm (1 1/2 inches) of space for the power cord and switch cooling. Sides At least 7.6 cm (3 inches) for cooling, except if the switch is installed in an open EIA/TIA rack. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 17: Installation Overview

    This chapter shows how to install the switches. Fan-free Design on some Switch Models The following HPE Networking Instant On 1830 switch models have a fan-free design, making them quiet for office deployments.

  • Page 18: Installation Procedure

    JL810A 4 rubber feet 1 tie strap 3 screws (M4, 16T, 20mm) 3 anchors JL811A Kit number 5400-3784 4 rubber feet 1 tie strap 3 screws (M4, 16T, 20mm) 3 anchors 8 screws (M4, P0.7, 8mm) 4 bolts 2 mounting brackets JL812A, JL813A, JL814A, JL815A Kit number 5300-1491 4 rubber feet...
  • Page 19 Figure 8 Connecting AC/DC Power Adapter 2. For JL810A switches powered by Ethernet LAN Cable, connect the LAN cable on Port 1 from a remote PoE Switch or Power Injector/AC. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...
  • Page 20 Figure 9 Connecting Ethernet Cable with PoE 4. For JL811A, JL812A, JL813A, JL814A, and JL815A, connect the power cord supplied with the switch to the power connector on the back of the switch, and then into a properly grounded electrical outlet. Figure 10 Connect ing Power Cord The 1830 switches do not have a power switch.
  • Page 21 If the ports are connected to active network devices, in default Link/Act Mode, the port LEDs stay on or may be blinking, to indicate port link/activity. In Speed Mode, the port LEDs are on Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 22: Mount The Switch

    JL810A must be mounted upside down. Rack or Cabinet Mounting All switches, except the HPE Networking Instant On 1830 8G Switch (JL810A), can be mounted in a rack. The switches are designed to be mounted in any EIA-standard 19-inch Telco rack or communication equipment cabinet.
  • Page 23 2. Hold the switch with attached brackets in the rack and move it vertically until rack holes line up with the bracket holes, then insert and tighten the four 12-24 screws holding the brackets to the rack. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...
  • Page 24 Figure 12 Securing switch on rack Wall Mounting You can mount all switches on a wall with either the front or rear panel facing up. For safe operation, please read Installation Precautions and Guidelines before mounting the switch. Wall mount the switch with the network ports facing up or down. The switch should be mounted only to a wall or wood surface that is at least 1/2-inch (12.7 mm) plywood or its equivalent.
  • Page 25 2 mm away from the mounting surface to allow the switch to slide onto the screws. Wall anchors are included in the accessory kit for use with plastered brick or concrete walls. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...
  • Page 26 Figure 14 Securing switch to wall 4. For under-table mounting, a third 20-mm M4 tap screw can be placed against one side of the switch to secure it in place. Under-Table Mounting You can mount all switches beneath a table. For safe operation, please read Installation Precautions and Guidelines before mounting the switch.
  • Page 27 Nothing should be placed on top of the switch. Adequate spacing on all sides needs to be maintained for ventilation. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 28: Connect The Network Cables

    5. Connect the Network Cables Connect the network cables, from the network devices or your patch panels, to the fixed RJ-45 ports on the switch or to any SFP transceivers you have installed in the switch. 100–ohm unshielded or shielded twisted pair cable: Category 3, 4, or 5 for 10 Mbps ports Category 5 only for 100 Mbps ports Category 5, 5e, or 6 for 1000 Mbps ports...
  • Page 29 The HPE Aruba Networking SFPs are Class 1 laser devices. Avoid direct eye exposure to the beam coming from the transmit port. Removing the SFPs You should disconnect the network cable from the SFP before removing it from the switch. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...
  • Page 30 To remove the SFPs that have the plastic tab or plastic collar, push the tab or collar toward the switch until you see the SFP release from the switch (you can see it move outward slightly), and then pull it from the slot.

  • Page 31: Initial Configuration

    URL. A landing page displays asking you to choose how to manage the switch. If you choose to proceed using the HPE Networking Instant On Cloud Portal, follow the instructions within the portal's interface. Otherwise, click Connect and follow the steps below. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 32: Using The 192.168.1.1 Ip Address

    9. Click Apply to implement the new password, and then click Save Configuration at the top of the browser configuration screen to save your settings and retain them when the switch is rebooted. See the HPE Networking Instant On 1830 Switch Series Management and Configuration Guide for more switch configuration information.

  • Page 33: Where To Go From Here

    Where to go from here For more information on the local web interface and all the features that can be configured on the 1830 Switch Series, see the HPE Networking Instant On 1830 Switch Series Management and Configuration Guide. For more information on using the HPE Networking Instant On Portal to manage the switch, see the HPE Networking Instant On User Guide.

  • Page 34: Troubleshooting

    2. Refer to the corresponding diagnostic tip on the next few pages. Both Power and Fault are identified by the Global Status LED. See LEDs for more information. Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 35: Diagnostic Tips

    LED Pattern Indicating Problems Diagnostic Tips Power Fault Port LED Off with power cord ➊ plugged in Prolonged On ➋ Blinking† Blinking† ➌ Off with cable connected ➍ * This LED is not important for the diagnosis. † The blinking behavior is an on/off cycle once every 1.6 seconds, approximately. Diagnostic Tips Problem Solution...

  • Page 36: Led Patterns For Poe Troubleshooting

    If you forget the switch IP address or password, you can restore the factory default configuration by pressing the Reset button. To execute the factory default reset on the switch, perform these steps: Procedure Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...
  • Page 37 1. Using a small, thin tool with blunt ends (such as a paper clip), press the Reset button on the front of the switch. 2. Continue to press the Reset button until the UID LED light begins to flash. 3. Release the Reset button. The switch will then complete its self test and begin operating with its configuration restored to the factory default settings.

  • Page 38: Specifications

    JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm). Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 39: Safety

    Noise Emission HPE Networking Instant On 1830 8G Switch (JL810A) Power: 0 dB no fan HPE Networking Instant On 1830 8G 4p Class4 PoE Power: 0 dB 65W Switch (JL811A) no fan HPE Networking Instant On 1830 24G 2SFP Switch...
  • Page 40 500 MHz*km 2 - 550 meters 1000-LX multimode fiber 400 MHz*km 2 - 550 meters 500 MHz*km 2 - 550 meters single mode fiber 2 - 10,000 meters Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...

  • Page 41: Support Information

    Support Information Main Instant On site https://www.arubainstanton.com/ Support https://support.arubainstanton.com/ Instant On social forums and knowledge base https://community.arubainstanton.com/ Security bulletins https://www.arubanetworks.com/support-services/security-bulletins/ End-user license agreement https://www.arubainstanton.com/eula/ Support contact numbers https://www.arubainstanton.com/contact-support/ Aruba Instant On 1830 Installation and Getting Started | Getting Started Guide...
