HP Enterprise Aruba Instant On 1930 Installation And Getting Started Manual

HP Enterprise Aruba Instant On 1930 Installation And Getting Started Manual

Hide thumbs Also See for Enterprise Aruba Instant On 1930:

Advertisement

Quick Links

Download this manual

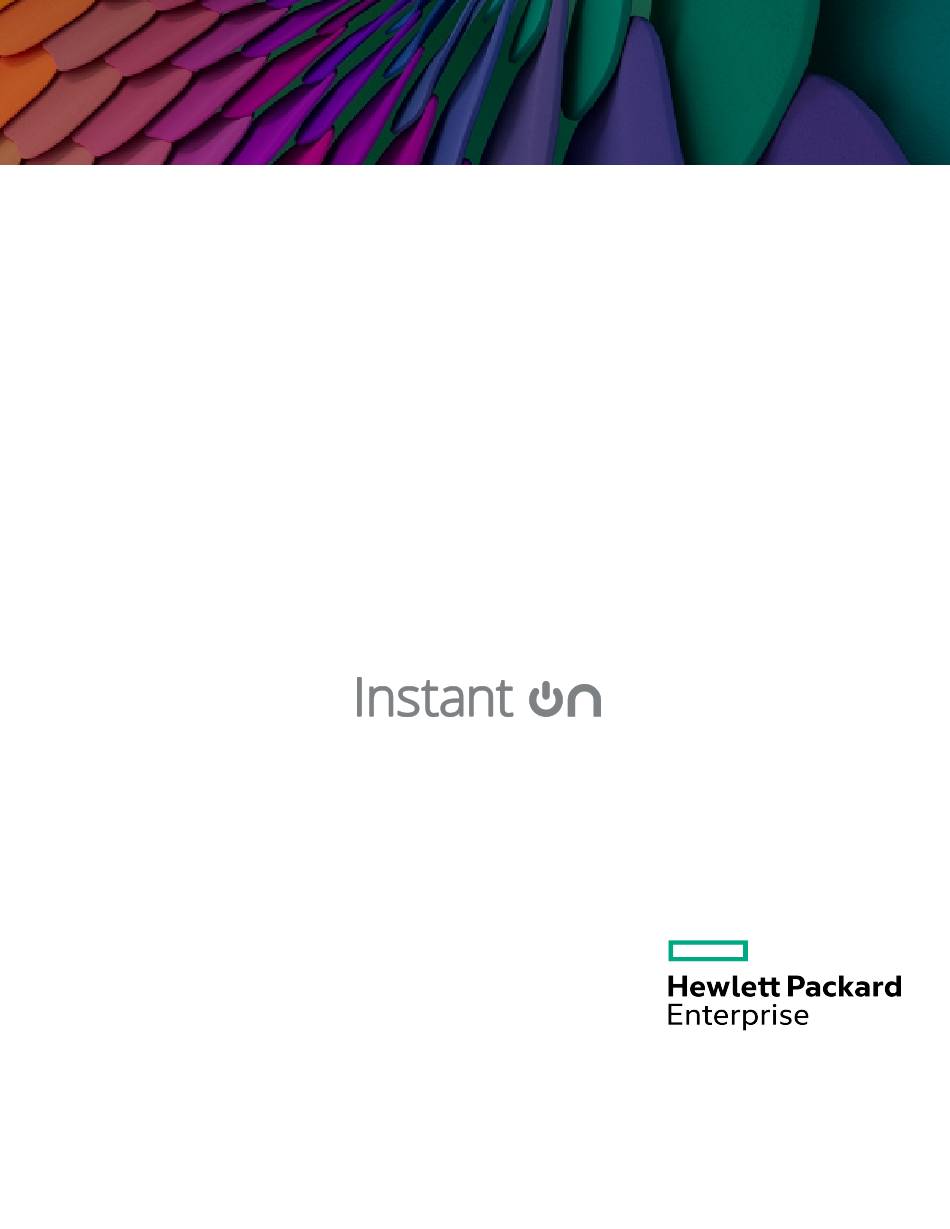

Aruba Instant On 1930
Installation and Getting
Started

Advertisement

loading
Need help?

Need help?

Do you have a question about the Enterprise Aruba Instant On 1930 and is the answer not in the manual?

Questions and answers

Related Manuals for HP Enterprise Aruba Instant On 1930

Summary of Contents for HP Enterprise Aruba Instant On 1930

  • Page 1 Aruba Instant On 1930 Installation and Getting Started...
  • Page 2 Copyright Information © Copyright 2025 Hewlett Packard Enterprise Development LP. Open Source Code This product includes code licensed under certain open source licenses which require source compliance. The corresponding source for these components is available upon request. This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company.

  • Page 3: Table Of Contents

    Contents Contents Contents About this Document Applicable Products Related Publications Overview Switch Hardware Features Switch Features Site Preparation and Switch Installation Precautions Safety Recommendations Installation Precautions and Guidelines Prepare the Installation Site Installation Overview Fan-free Design on some Switch Models Included Parts Installation Procedure Initial Configuration...

  • Page 4: About This Document

    Chapter 1 About this Document About this Document This document is intended for network administrators and support personnel. The web interface pages illustrated in this document are examples and might not match your particular switch or environment. The switch and accessory drawings in this document are for illustration only, and may not match your particular switch and accessory products.

  • Page 5: Overview

    Chapter 2 Overview Overview The HPE Networking Instant On 1930 Switch series are designed to meet the needs of small business network environments - simple to setup and manage, secure and reliable. HPE Networking Instant On deployments can be managed through a Mobile App supported on iOS and Android, a cloud portal that is accessible through a web browser, or a local web GUI.
  • Page 6 Figure 2 JL681A Item Description 1GbE RJ45 ports with Link/Status LED per port 1GbE SFP port with Link/Status LED Cloud Status LED Global Status LED UID LED PoE Mode LED Speed Mode LED Reset pushbutton (recessed) LED Mode pushbutton Figure 3 JL682A Item Description 1GbE RJ45 ports with Link/Status LED per port...
  • Page 7 Item Description Speed Mode LED Reset pushbutton (recessed) LED Mode pushbutton Figure 4 JL683A/B Item Description 1GbE RJ45 ports with Link/Status LED per port 10GbE SFP+ port with Link/Status LED Cloud Status LED Global Status LED UID LED PoE Mode LED Speed Mode LED Reset pushbutton (recessed) LED Mode pushbutton...
  • Page 8 Item Description 10GbE SFP+ port with Link/Status LED Cloud Status LED Global Status LED UID LED PoE Mode LED Speed Mode LED Reset pushbutton (recessed) LED Mode pushbutton Figure 6 JL685A Item Description 1GbE RJ45 ports with Link/Status LED per port 10GbE SFP port with Link/Status LED Cloud Status LED Global Status LED...
  • Page 9 Item Description 1GbE RJ45 ports with Link/Status LED per port 10GbE SFP port with Link/Status LED Cloud Status LED Global Status LED UID LED PoE Mode LED Speed Mode LED Reset pushbutton (recessed) LED Mode pushbutton Network Ports Auto-sensing 10/100/1000BASE-T ports: These ports have the “Auto-MDIX”...
  • Page 10 Transceiver Form- Factor and Connector Speed Technology Cabling SFP Connector 10 Gbps 10000-SR Fiber (multimode OM3/OM4) 10000-LR Fiber (single mode) 10000-CR Copper (fixed) Direct Attach SFP+ only supported on JL682A. JL683A/B, JL684A/B, JL685A, JL686A/B PoE Power 1930 Switch Series PoE Power Delivery Power Over Ethernet (PoE) functionality is supported on certain 1930 models, known as power source equipment (PSE) ports which provide power to connected devices.
  • Page 11 Maximum Maximum Maximum PoE Port Ports Ports 1930 PoE Model PoE Power Count delivering at delivering at 15.4W HPE Networking Instant On 1930 Switch 370W Ports 1 - 24 Series 24G 4SFP+ PoE Class 4 370W Switch HPE Networking Instant On 1930 Switch 370W Ports 1 - 48 Series 48G 4SFP+ PoE Class 4 370W...
  • Page 12 State Meaning Global Status On solid (green) The switch has passed self-test and is powered up normally. (Power, Self- test, Status, Slow flash A fault, fatal system error, or self-test failure has occurred on the switch, Fault) (orange) one of the switch ports, a PSU, or a fan. The LED will flash simultaneously with the faulty component.
  • Page 13 State Meaning Port is disabled, not connected, not receiving link beat (not Linked), or not providing PoE power. Mode On solid (green) Mode (Link/Act) Default mode. No LED indicator - Mode (Spd) and Mode (PoE) not selected. Mode (Spd) On solid green - Speed Mode is selected. Port LEDs indicate port speed. Mode (PoE) On solid green - PoE Mode is selected.

  • Page 14: Switch Features

    Port LEDs LED Mode pushbutton Reset pushbutton (recessed) Reset Button The Reset button (pictured in the preceding illustration) is used to restore Factory Default settings, or reset the switch while it is powered on. Resetting the Switch — Press and release the button. This action clears any temporary error conditions that may have occurred and executes the switch self test.
  • Page 15 8, 24, or 48 auto-sensing 10/100/1000BASE-T RJ-45 ports. 4 SFP/SFP+ for 24G and 48G switch models 2 SFP for 8G models plug-and-play networking—all ports are enabled—just connect the network cables to active network devices and your switched network is operational. IEEE 802.3ab Auto MDI /MDI-X on all twisted-pair ports, meaning that all connections can be made using straight-through twisted-pair cables.

  • Page 16: Site Preparation And Switch Installation Precautions

    Chapter 3 Site Preparation and Switch Installation Precautions Site Preparation and Switch Installation Precautions Safety Recommendations Before installing an HPE Networking Instant On 1930 switch, and to avoid possible bodily injury and equipment damage, carefully read these information sources before installation: START HERE: Setup, Safety, and Regulatory Information for the HPE Networking Instant On 1930 Switch Series (shipped with the switch and also available online.
  • Page 17 All HPE Networking Instant On 1930 Switches support table-top mounting. All HPE Networking Instant On 1930 Switches except JL680A support rack-mounting. All HPE Networking Instant On 1930 Switches support wall-mounting with ports facing either up or down. All HPE Networking Instant On 1930 Switches support under-table mounting. JL681A, JL682A, and JL685A must be mounted top surface up.

  • Page 18: Prepare The Installation Site

    The following HPE Networking Instant On 1930 switch models have a fan-free design, making them quiet for office deployments. HPE Networking Instant On 1930 8G 2SFP Switch (JL680A) HPE Networking Instant On 1930 8G PoE 2SFP Switch (JL681A) HPE Networking Instant On 1930 24G 4SFP+ Switch (JL682A) HPE Networking Instant On 1930 48G 4SFP+ Switch (JL685A) A warmer than normal enclosure is a standard state of operation for a fan-free switch.
  • Page 19 Switch Clearance Requirements Orientation Front At least 7.6 cm (3 inches) of space for the twisted-pair and fiber-optic cabling. Back At least 3.8 cm (1 1/2 inches) of space for the power cord and switch cooling. Sides At least 7.6 cm (3 inches) for cooling, except if the switch is installed in an open EIA/TIA rack. Site Preparation and Switch Installation Precautions |...

  • Page 20: Installation Overview

    Chapter 4 Installation Overview Installation Overview If you have not already done so, carefully read Site Preparation and Switch Installation Precautions. The switches are easy to install. They ship with an accessory kit containing brackets for mounting the switches in a standard 19-inch telco rack or in an equipment cabinet. Included also are rubber feet for securely locating the switch on a horizontal surface.

  • Page 21: Installation Procedure

    JL681A Switches Kit number 5300-1030 four rubber feet two 4.5 in. rack-mounting brackets screw kit (eight 8 mm M4; four 12-24) three wall/table mounting screws/anchors and cable tie JL680A, JL690A Switches Kit number 5300-1031 four rubber feet three wall/table mounting screws/anchors and cable tie For the latest version of documentation for your switch model, visit the HPE Networking Instant On Support site at https://community.arubainstanton.com/.
  • Page 22 2. Verify the Switch Passes Self Test Before mounting the switch, verify it is working properly by plugging it into a power source and confirming that it passes self test. Procedure 1. For JL680A switches, connect the AC/DC adapter’s power cord to the power connector on the back of the switch, and then plug the AC/DC power adapter into a nearby, properly grounded electrical outlet.
  • Page 23 2. Check the LEDs on the switch as described below. Port Link/Act, Speed, and PoE status LEDs Global Status LED Port Link/Act, Speed, and PoE status LEDs Global Status LED When the switch is powered on, it performs a diagnostic self test. The behavior of the LEDs is as follows: During the self test: Initially, all LEDs except Cloud Status LED will turn on and UID LED will flash blue.
  • Page 24 green for link speeds of 1000Mbps or above, and slow-flash-green for link speeds less than 1000Mbps. For PoE switches, in PoE Mode, the port LEDs reflect the earlier defined behavior, depending on the PoE state of the switch. If the ports are not connected to active network devices, the port Link/Act, Spd, and PoE status will be off.
  • Page 25 For safe operation, please read GUID-D7147C7F-2016-0901-0A2B-000000000471 before mounting the switch. The screws supplied with the switch are the correct threading for standard EIA/TIA open 19-inch racks. If you are installing the switch in an equipment cabinet such as a server cabinet, use the clips and screws that came with the cabinet in place of the screws that are supplied with the switch.
  • Page 26 For safe operation, please read GUID-D7147C7F-2016-0901-0A49-0000000004A4 before mounting the switch. Wall mount the switch with the network ports facing up or down. The switch should be mounted only to a wall or wood surface that is at least 1/2-inch (12.7 mm) plywood or its equivalent.
  • Page 27 Wall anchors are included in the accessory kit for use with plastered brick or concrete walls. 3. For under-table mounting, a third 20-mm M4 tap screw can be placed against one side of the switch to secure it in place. Horizontal Surface Mounting All 1930 switches can be mounted on a horizontal surface.
  • Page 28 1. For JL680A switches, connect the AC/DC adapter’s power cord to the power connector on the back of the switch, and then plug the AC/DC power adapter into a nearby, properly grounded electrical outlet. For JL681A, JL682A, JL683A/B, JL684A/B, JL685A, and JL686A/B switches, connect the power cord supplied with the switch to the power connector on the back of the switch, and then into a properly grounded electrical outlet.
  • Page 29 100–ohm unshielded or shielded twisted pair cable: Category 3, 4, or 5 for 10 Mbps ports Category 5 only for 100 Mbps ports Category 5, 5e, or 6 for 1000 Mbps ports Maximum distance: 100 meters When a network cable from an active network device is connected to the port, the port LEDs for that port should go on.
  • Page 30 HPE Netwo- HPE Netwo- HPE Netwo- HPE Netwo- HPE Netwo- HPE Netwo- rking rking HPE Netwo- rking Instant rking rking rking Instant On Instant On rking On 1930 Instant On Instant On Instant On 1930 24G 1930 24G Instant On 48G PoE 1930 8G 1930 8G 1930 24G PoE Class 4 PoE Class 4 1930 48G...
  • Page 31 HPE Netwo- HPE Netwo- HPE Netwo- HPE Netwo- HPE Netwo- HPE Netwo- rking rking HPE Netwo- rking Instant rking rking rking Instant On Instant On rking On 1930 Instant On Instant On Instant On 1930 24G 1930 24G Instant On 48G PoE 1930 8G 1930 8G 1930 24G PoE Class 4 PoE Class 4 1930 48G...
  • Page 32 You should disconnect the network cable from the SFP before removing it from the switch. To remove the SFPs that have the plastic tab or plastic collar, push the tab or collar toward the switch until you see the SFP release from the switch (you can see it move outward slightly), and then pull it from the slot.

  • Page 33: Initial Configuration

    Chapter 5 Initial Configuration Initial Configuration The 1930 Switch Series can be managed in one of two ways: Through a Web-browser interface that you can access from any PC or workstation connected to the switch. Through the HPE Networking Instant On Cloud Portal. To access the Web interface, you must have the switch’s Internet Protocol (IP) address.

  • Page 34: Using The 192.168.1.1 Ip Address

    6. Enter the default username “admin” and click Login to start a switch Web-browser interface session. By default, there is no password. 7. To configure a password on the switch Web interface, click Setup Network > User Management and enter the Current Password. Define a New Password and reenter it in the Confirm New Password field.

  • Page 35: Where To Go From Here

    1. Connect a PC directly to any of the switch’s network ports using a standard Ethernet cable. 2. Configure the PC’s IP Address and Subnet Mask to allow it to communicate with the switch through your PC’s Web browser. 3. Click Use the following IP address, and then, in the IP address and Subnet mask fields, type the IP address settings: a.

  • Page 36: Troubleshooting

    Chapter 6 Troubleshooting Troubleshooting Troubleshooting Overview This section describes how to troubleshoot the switch. For more information, see HPE Networking Instant On 1930 8G/24G/48G Switch Series Management and Configuration Guide. This chapter describes the following: basic troubleshooting tips – Basic Troubleshooting Tips diagnosing with the LEDs –...
  • Page 37 LED Pattern Indicating Problems Diagnostic Tips Power Fault Port LED Off with power cord ➊ plugged in Prolonged On ➋ Blinking† Blinking† ➌ Off with cable connected ➍ * This LED is not important for the diagnosis. † The blinking behavior is an on/off cycle once every 1.6 seconds, approximately. Diagnostic Tips Problem Solution...

  • Page 38: Led Patterns For Poe Troubleshooting

    LED Patterns for PoE Troubleshooting Press the LED Mode button to put the switch into PoE mode and the port Mode LEDs will show which ports are experiencing the problem. The following tables identify the specific problems that are shown by the LEDs.
  • Page 39 2. Continue to press the Reset button until the UID LED light begins to flash. 3. Release the Reset button. The switch will then complete its self test and begin operating with its configuration restored to the factory default settings. After completing this procedure, there will be no password, the IP address will be returned to the default 192.168.1.1, and all configuration settings will be returned to factory defaults.

  • Page 40: Specifications

    Chapter 7 Specifications Specifications Environmental Specifications Table 1: Environmental Specifications for all 1930 Switch Models Requirement Value Operating temperature 32°F to 104°F (0°C to 40°C) Operating relative humidity 15% to 95% Non-operating temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft Storage relative humidity 15% to 95% Max operating altitude...

  • Page 41: Acoustics

    Table 2: 1930 Switch Dimensions and Weights Switch Dimensions (L x W x H) Weight HPE Networking Instant On 1930 8G 2SFP Switch 6.28" x 10" x 1.73" 2.55 lb (JL680A) (15.95 x 25.4 x 4.39 cm) (1.16 kg) HPE Networking Instant On 1930 8G PoE Class 4 2SFP 10"...

  • Page 42: Standards

    Switch Model Noise Emission HPE Networking Instant On 1930 24G PoE Class 4 LWAd = 3.7 Bel, LpAm (Bystander) = 23 dB 4SFP/SFP+ 370W Switch (JL684B) HPE Networking Instant On 1930 48G 4SFP/SFP+ Fanless Switch (JL685A) HPE Networking Instant On 1930 48G PoE Class 4 LWAd = 6.1 Bel, LpAm (Bystander) = 43 dB 4SFP/SFP+ 370W Switch (JL686A) HPE Networking Instant On 1930 48G PoE Class 4...
  • Page 43 Cable Type OperationMode Description Multimode fiber 62.5/125 μm or 50/125 μm (core/cladding) diameter, low metal content, graded index fiber-optic cables, complying with theITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a standards respectively.* Single mode 9/125 μm (core/cladding) diameter, low metal content fiber-optic fiber cables, complying with the ITU-T G.652 and ISO/IEC 793-2 Type B1 standards.

  • Page 44: Support Information

    Chapter 8 Support Information Support Information Main Instant On site https://www.arubainstanton.com/ Support https://support.arubainstanton.com/ Instant On social forums and knowledge base https://community.arubainstanton.com/ Security bulletins https://www.arubanetworks.com/support-services/security-bulletins/ End-user license agreement https://www.arubainstanton.com/eula/ Support contact numbers https://www.arubainstanton.com/contact-support/ HPE Networking Instant On 1930 Installation and Getting Started | Getting Started Guide...
