PLANAR ANTENNA
FOR WIRELESS COMMUNICATION

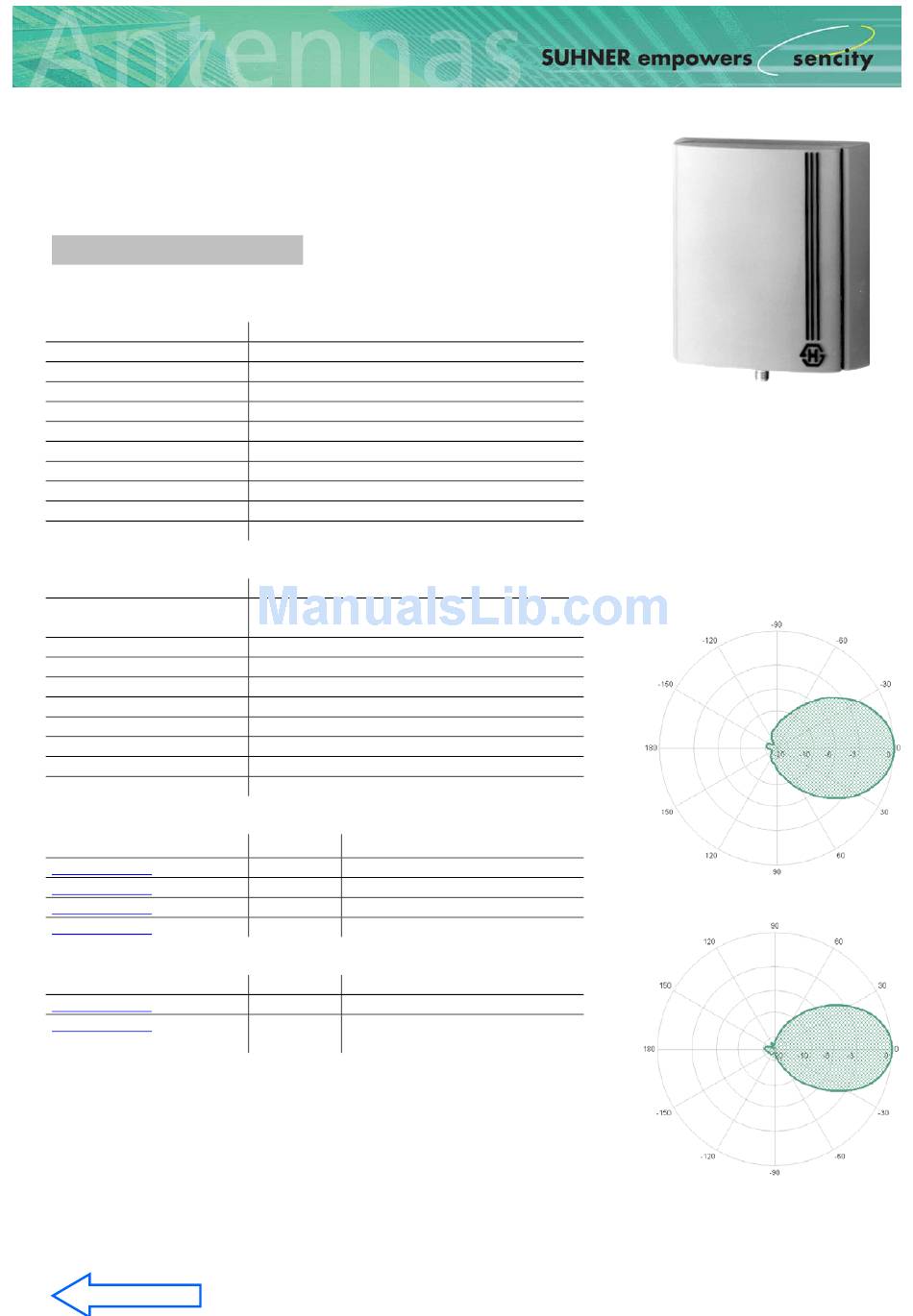

SPA 2400/75/9/0/V
Technical Data

Electrical Properties

Frequency range
Impedance
VSWR
Polarization
Gain
3 dB beamwidth horizontal
3 dB beamwidth vertical
Downtilt
Front to back ratio
Max. power

Mechanical Properties

Dimensions
Weight
Housing material
Radome material
Radome color
Mounting bracket color
Operating temperature range
Storage temperature range
Windload

Available Types

1324.17.0006
1324.17.0007
1324.19.0002
1324.26.0001

Mounting Hardware

9091.99.0029
9091.99.0080
Wall mounting material included.
Back to Main Menu
2300 - 2500 MHz
50 W
1.5
linear, vertical
8.5 dBi
75°
60°
0°
20 dB
75 W (CW) at 25°C
101 x 95 x 32 mm
(3.98" x 3.74" x 1.26")
0.11 kg (0.24 lbs.)
ASA and aluminium
ASA
RAL 7035 (light-grey)
RAL 7042 (dark-grey)
- 40°C to + 80°C
- 40°C to + 80°C
15 N at 160km/h (100mph)
Article no.
22652578
N female pictail (0.6m)
22652579
N female pictail (1.83m)
22649580
SMA female
22651187
TNC female
Article no.
22649576
mast mounting accessory
22652651
mast mounting and side/down-tilt
accessory
Radiation Pattern
horizontal
vertical
