SUHNER

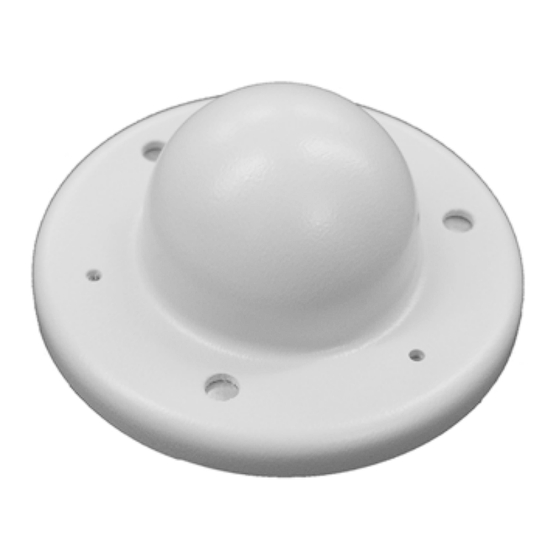

OMNI ANTENNA
FOR WIRELESS COMMUNICATION
SPA 2400/360/4/20/V
Technical Data
Electrical Properties
Frequency range
Impedance
VSWR
Polarization
Gain
3 dB beamwidth horizontal
3 dB beamwidth vertical
Downtilt
Max. power
Mechanical Properties
Dimensions
Weight
Housing material
Radome material
Radome color
Operating temperature range
Storage temperature range
Windload
Available Types
1324.17.0026
1324.19.0035
Mounting Hardware
Wall mounting material included.
Back to Main Menu
2400 - 2500 MHz
50 W
1.5
linear, vertical
4.0 dBi
360°
25°
20°
75 W (CW) at 25°C
Ø 99 x 45 mm
(Ø 3.90" x 1.77")
0.3 kg (0.66 lbs.)
Aluminium painted grey
ASA
RAL 7035 (light-grey)
- 40°C to + 80°C
- 40°C to + 80°C
10 N at 160km/h (100mph)
Article no.
23004161
N female
23009880
SMA female
Radiation Pattern
horizontal
vertical
