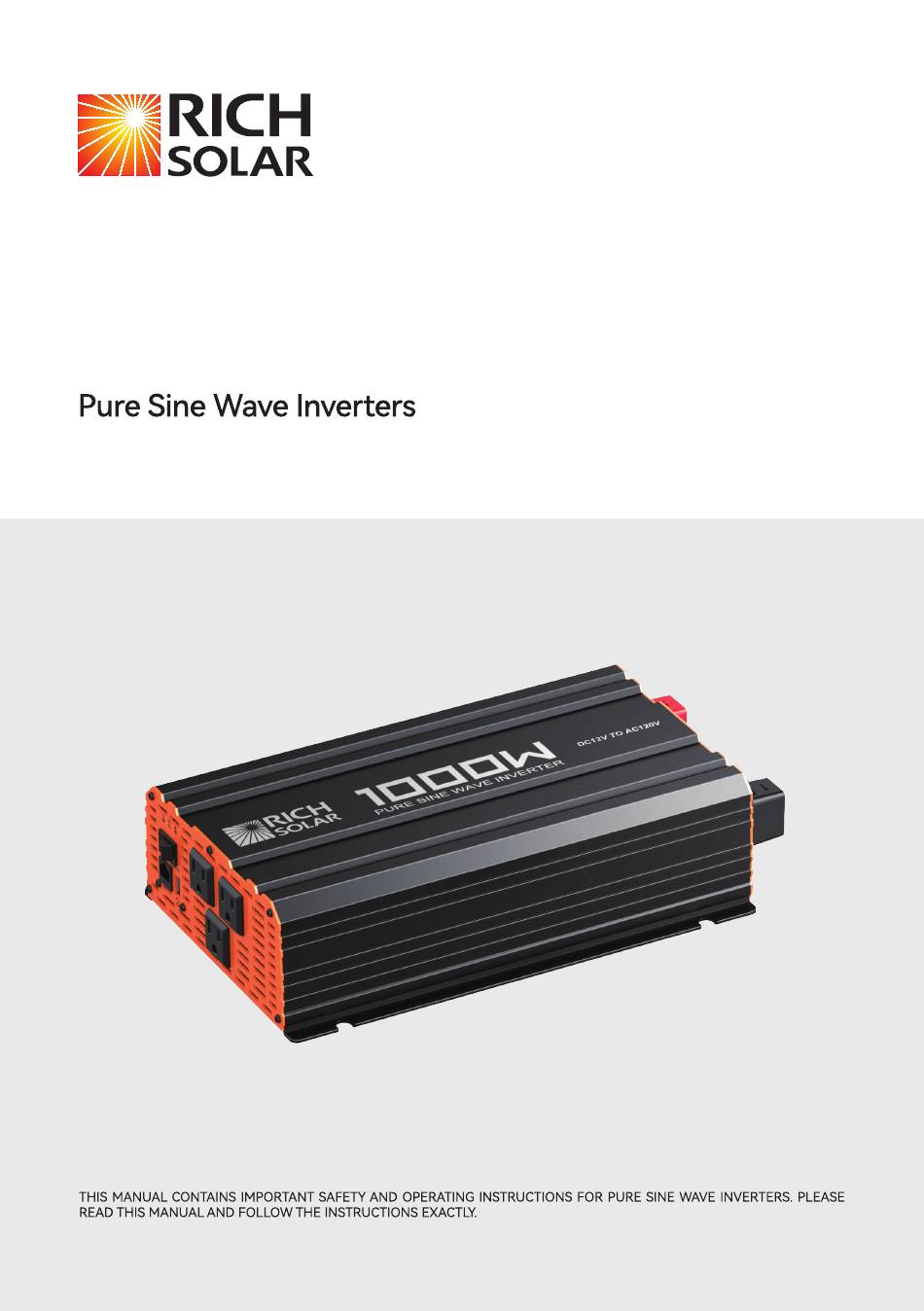

- Page 1 User Manual 1000 WATT MODEL: RS-V1P12...
-
Page 2: Table Of Contents
CONTENT Thank You Safety Instructions Warning Disposal/Recycling of inverter Front Panel Rear Panel Connecting the Inverter Troubleshooting Important Safety Information... -
Page 3: Thank You
User’s Manual—Read before using this equipment. Thank you for purchasing the RICHSOLAR power inverter. The inverter is a compact and highly portable power inverter, the leader in the field of high frequency inverter design. From the 12V DC outlet in your vehicle or boat, or directly from a dedicated 12V DC battery, or the solar power bank, the inverter will ef- household AC products, such as TVs, com-... -
Page 4: Safety Instructions
Safety Instructions These advanced safety features are built into the inverter. Electronic overload protection with automatic shutdown. • Built-in internal backup DC fuse provides added safety. • Low battery voltage protection with automatic shutdown. • Over temperature protection with automatic shutdown. •... - Page 5 Model RS-V1P12 Continuous Power 1000W Input Voltage 12V DC Output Voltage 120V AC Peak Surge 2000W >88% Frequency 60Hz Total Harmonic Distortion(THD) <3% No Load Current Draw <1.0A Battery Low Alarm 10.5V±0.5V DC Battery Low Shutdown 10.0V±0.5V DC Over Voltage Shutdown 16.5V±0.5V DC...
-
Page 6: Warning
Warning A Inverter output can be lethal. lmproper use of this inverter may re- sult in property damage, personal injury or loss of life. Keep the inverter away from any direct heat source or combustible materials. • Keep well ventilated-this device generates heat. •... -
Page 7: Front Panel
Front Panel Ground Fault LED Power LED Fault LED 2.1A USB Port AC Outlets ON/OFF/Remote Remote ON/OFF Switch Switch Connection ON/OFF Switch-This switch controls AC output of the inverter. • Power LED(Green)-When this green LED is lit, the inverter is operating normally. •... -
Page 8: Rear Panel
Audible Alarm(internal to the inverter)-When the Audible Alarm makes a buzzing • sound, the inverter senses a low battery condition. The user should reduce the AC load, charge the battery, and check the DC cable for excessive losses. Remote Switch Connection. •... -
Page 9: Remote On/Off Control
REMOTE ON/OFF CONTROL. Optional wired remote control sold separately. lnsert wired remote plug into Remote Switch Connection port. Set ON/OFF switch to “remote” position. LOAD CONSIDERATIONS. The startup load of an appliance is a major factor of whether this inverter can pow- er it. -
Page 10: Configuring The Battery Bank
CONFIGURING THE BATTERY BANK. To determine the minimum battery ampere-hour rating that you will need to op- erate appliances from the inverter and any Dc appliances powered by the battery bank, followthese steps. The following example applies to 12V systems only-for 24V systems, the same principles apply, the actual calculation will vary depending on the inverter rated input voltage. -
Page 11: Connecting The Inverter
NOTE: It is important that for any inverter installation to battery protection fuses. Battery fuses are added to the positive (+) battery cable as close as possible to the battery bank’s positive terminal. The fuse amperage rating must be sized to allow simultaneous operation of all the AC appliances to be powered, plus 20 percent safety factor. - Page 12 3. Install the fuse in the Positive (red) cable. 4. Make sure the Power Switch located on the front panel of the inverter is in the Off position. 5. Locate the ground lug terminal on the inverter. Connect an insulated 10 gauge copper wire to the terminal.
- Page 13 ble alarm may also sound a short “chirp”. This is also normal. the appliance into outlet on the front panel of the inverter. 14. Turm the inverter on. 15. Turn the appliance on. The appliance should begin working. 16. Observe the LED indicators and the digital display for normal operation. Note: lf an extension cord is used frorm the inverter to the appliance, limit the ex- tension cord length to 100 feet or less.
-
Page 14: Troubleshooting
Troubleshooting PROBLEM: Low or No Output Voltage-Fault LED Lit. Reason Solution Poor contacl with battery, inverter Clean terminals thoroughly. terminals. Reinstall and righten. PROBLEM: Inverter Auto Shut Down-Fault LED Lit. Reason Solution Battery voltage is below rated value. Charge or replace battery. Allow inverter to cool. - Page 15 PROBLEM: Continuous Buzzing Sound. Reason Solution Input voltage is below rated value. Keep input voltage above rated value. Poor or weak battery condition. Recharge or replace battery. lnspect terminals and tighten all Poor or loose cable connection. connections. lnadequate power being delivered Use heavier gauge DC cables.
- Page 16 lmportant Safety information Incorrect installation or misuse of the inverter may result in danger to the user or hazardous conditions. We urge you to pay special attention to all CAUTION and WARNING statements. CAUTION statements identify conditions or practices that may result in damage to other equipment.
- Page 17 CAUTION! Do not connect live AC power to the inverters AC outlets. The inverter will be • damaged even if it is switched OFF. Do no connect any AC load, which has its neutral conductor connected to • ground, to the inverter. Do not expose the inverter to temperatures exceeding 104°F(40°C).
- Page 18 1-800-831-9889...
