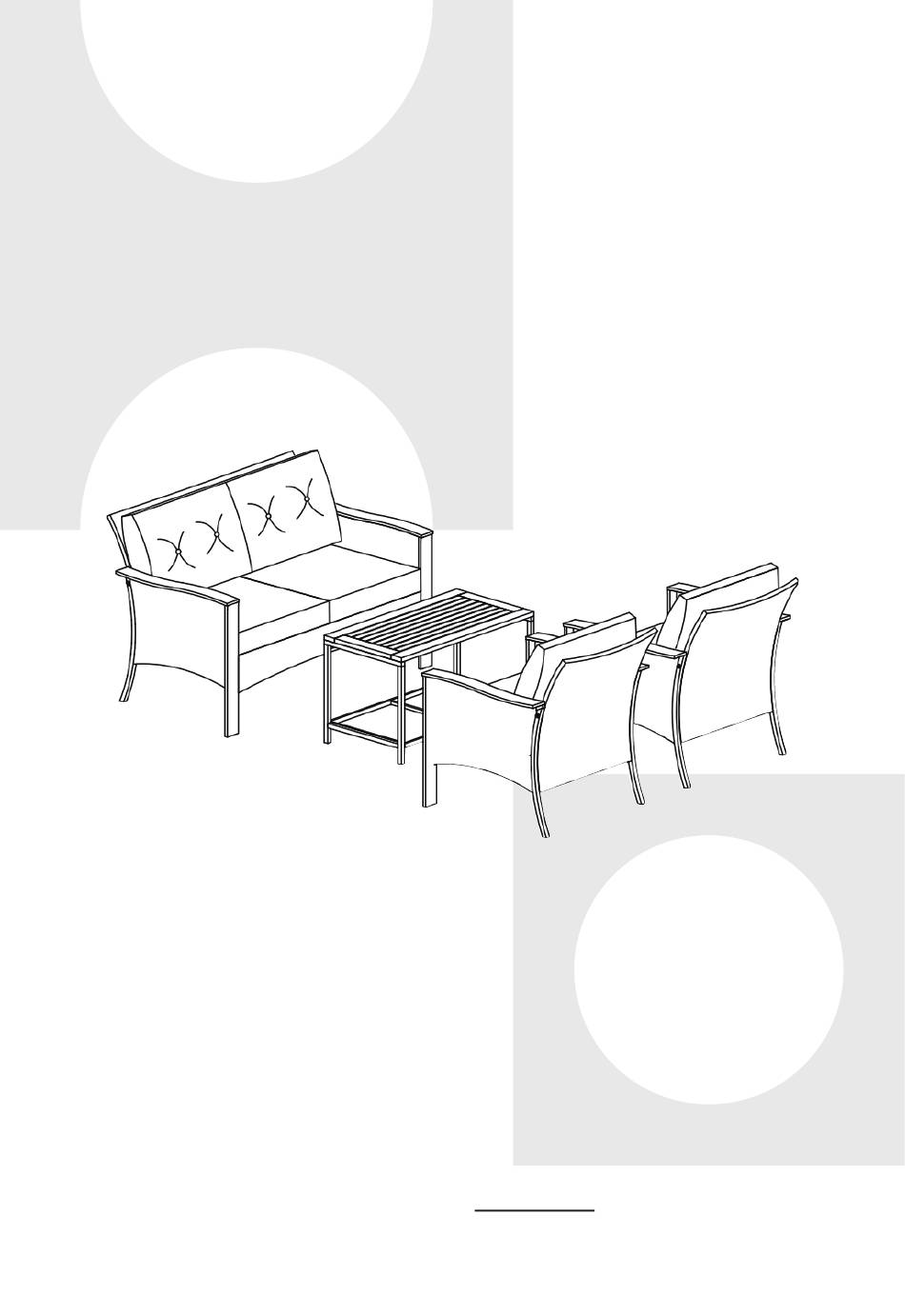

- Page 1 4PCS WOODEN ARM SOFA SET HW71628 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 4 Notice: 1. 50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric drill. 2. Place the item on a flat ground to adjust and make sure it remains stable. 3. Tighten up all screws with tools gradually. 4.
- Page 5 Part & Hardware List Right frame Left frame Seat frame A x3 B x3 C x2 Back frame Bench seat frame Bench back frame D x2 E x1 F x1 Seat cushion Back cushion Table leg frame H x4 I x2 G x4...
- Page 6 Table bottom frame Wooden table top Bolt M6x40mm 1 x16 J x1 K x1 Bolt Bolt Bolt M6x35mm M6x25mm M6x15mm 2 x8 3 x16 4 x4 M6x1 Washers Screw Screw M6x25mm M6x15mm 5 x44 6 x4 7 x4 Allen key M4 8 x2...
- Page 7 ( 2x Chair assembly) Connect Back frame (D) to Seat frame (C) with Bolt (2) & Washer (5) Connect part from Step 1 to Right arm (A) with Bolt (1), Bolt (2), Bolt (3) & Washers (5)
- Page 8 Connect part from Step2 to Left arm (B) with Bolt (1), Bolt (2), Bolt (3) & Washers (5) Put on Seat cushion (G) and Back cushion (H) to complete single chair...
- Page 9 ( Bench assembly) Connect Bench back frame (F) to Bench seat frame (E) with Bolt (1) & Washer (5) Connect part from Step 5 to Right arm (A) with Bolt (1), Bolt (2), Bolt (3) & Washers (5)
- Page 10 Connect part from Step 6 to Left arm (B) with Bolt (1), Bolt (2), Bolt (3) & Washers (5) Put on Seat cushion (G) and Back cushion (H) to complete bench...
- Page 11 (Table assembly) Connect table leg frame (I) to Table bottom frame (J) with Bolt (3), Bolt (4) & Washers (5)
- Page 12 Connect part from step 9 to Wooden table top (K) with Screw (6), Screw ( 7) Complete the table...
- Page 13 FINISHED...
- Page 14 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 15 USA office: Fontana AUS office: Truganina GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom If you're having difficulty, our friendly USA:cs.us@costway.com AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com...
