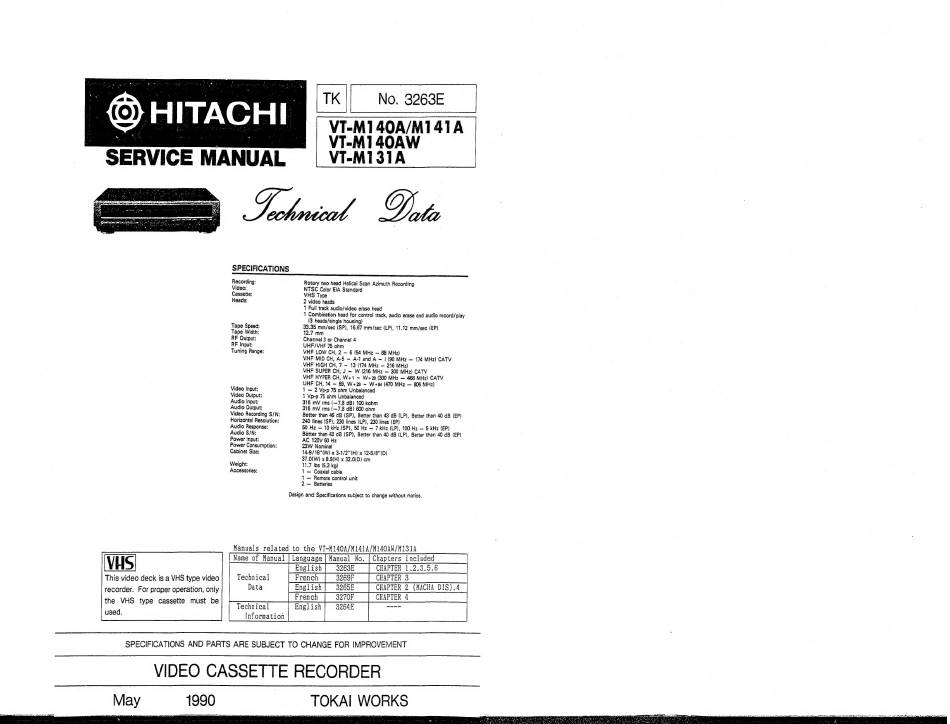

Hitachi VT-M140A Service Manual

SPECIFICATIONS
Recording:
Video:
Cassette:
Heads;
Tape Speed:
Tape Width:
RF Output:
RF Input:
Tuning Range:
Video Input:
Video Output:
Audio Input:
Audio Output:
Video Recording S/N:
Horizontal Resolution:
Audio Response:
Audio S/N:
Power Input:
Power Consumption:
Cabinet Size:
Weight:
Accessories:
TK No. 3263E
VT-M140A/M141A
VT-M1 40AW
VTI-MI31A
lial Gok
Rotary two head Helical Scan Azimuth Recording
NTSC Color EIA Standard
VHS Type
2 video heads
1 Full track audio/video erase head
1 Combination head for control track, audio erase and audio record/ play
{3 heads/single housing)
33.35 mm/sec (SP), 16.67 mm/sec (LP}, 11.12 mm/sec (EP)
12.7 mm
Channel 3 or Channel 4
UHF/VHF 75 ohm
VHF LOW CH, 2 ~ 6 (54 MHz — 88 MHz)
VHF MID CH, A-5 ~ A-1 and A ~ | (90 MHz — 174 MHz) CATV
VHF HIGH CH, 7 ~ 13 (174 MHz — 216 MHz)
VHF SUPER CH, J ~ W (216 MHz ~ 300 MHz} CATV
VHF HYPER CH, W+1 ~ W-+28 (300 MHz — 468 MHz) CATV
UHF CH, 14 ~ 69, W+29 ~ W+e4 (470 MHz — 806 MHz)
1 — 2 Vp-p 75 ohm Unbalanced
1 Vp-p 75 ohm Unbalanced
316 mV tms (~7.8 dB) 100 kohm
316 mV rms (~7.8 dB) 600 ohm
Better than 46 dB (SP), Better than 43 dB (LP), Better than 40 dB (EP)
240 lines (SP), 230 lines (LP), 230 lines (EP)
50 Hz — 10 kHz (SP), 50 Hz — 7 kHz (LP), 100 Hz — 6 kHz (EP)
Better than 43 dB (SP), Better than 40 dB (LP), Better than 40 dB (EP)
AC 120V 60 Hz
23W Nominal
14-9716" (W) x 3-1/2'(H) x 12-5/8"(D)
37.0{W) x 8,9(H) x 32.0(D} em
11.7 Ibs (5.3 kg)
1 — Coaxial cable
1 — Remote control unit
2 — Batteries
Design and Specifications subject to change without notice.
Manuals related to the VI-M140A/M141A/M140AW/M131A
VHS
This video deck is a VHS type video
recorder. For proper operation, only
the VHS type cassette must be
used.
Technical
Data
| Name of Manual | Language |
Technical English 3264E oe
Information
Chapters included
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
VIDEO CASSETTE RECORDER
1990
May
a mr
»
TOKAI WORKS
