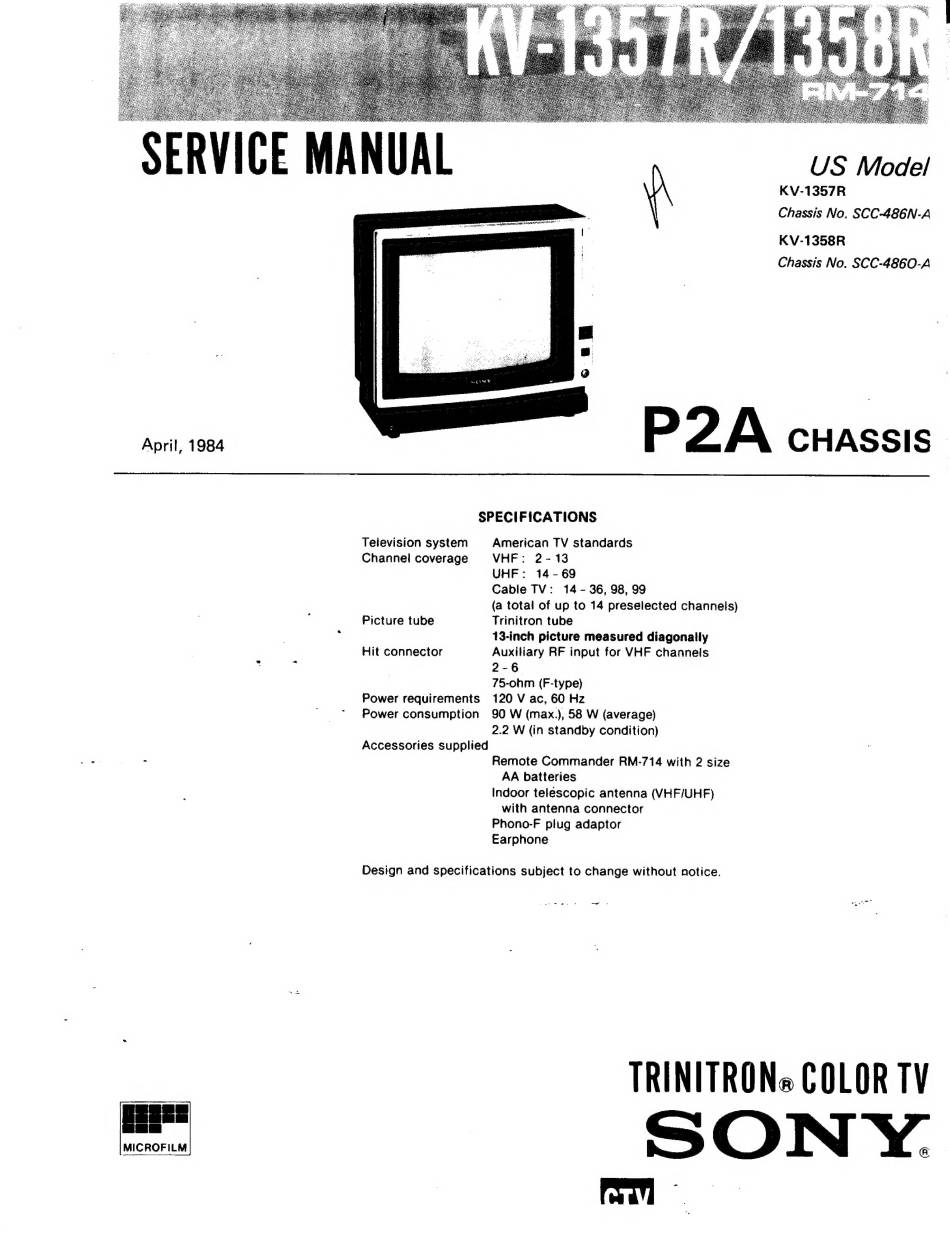

Sony TRINITRON KV-1357R Service Manual

MICROFILM
SERVICE MAN
April, 1984
Television system
Channel coverage
Picture tube
Hit connector
Power requirements
Power consumption
Accessories supplied
SPECIFICATIONS
American TV standards
VHF: 2-13
UHF: 14-69
Cable TV: 14 - 36, 98, 99
(a total of up to 14 preselected channels)
Trinitron tube
13-inch picture measured diagonally
Auxiliary RF input for VHF channels
2-6
75-ohm (F-type)
120 V ac, 60 Hz
90 W (max.), 58 W (average)
2.2 W (in standby condition)
Remote Commander RM-714 with 2 size
AA batteries
Indoor telescopic antenna (VHF/UHF)
with antenna connector
Phono-F plug adaptor
Earphone
Design and specifications subject to change without notice.
US Model
KV-1357R
Chassis No. SCC-486N-A
KV-1358R
Chassis No. SCC-4860-A
P2A CHASSIS
TRINITRON» COLOR TV
SONY.
