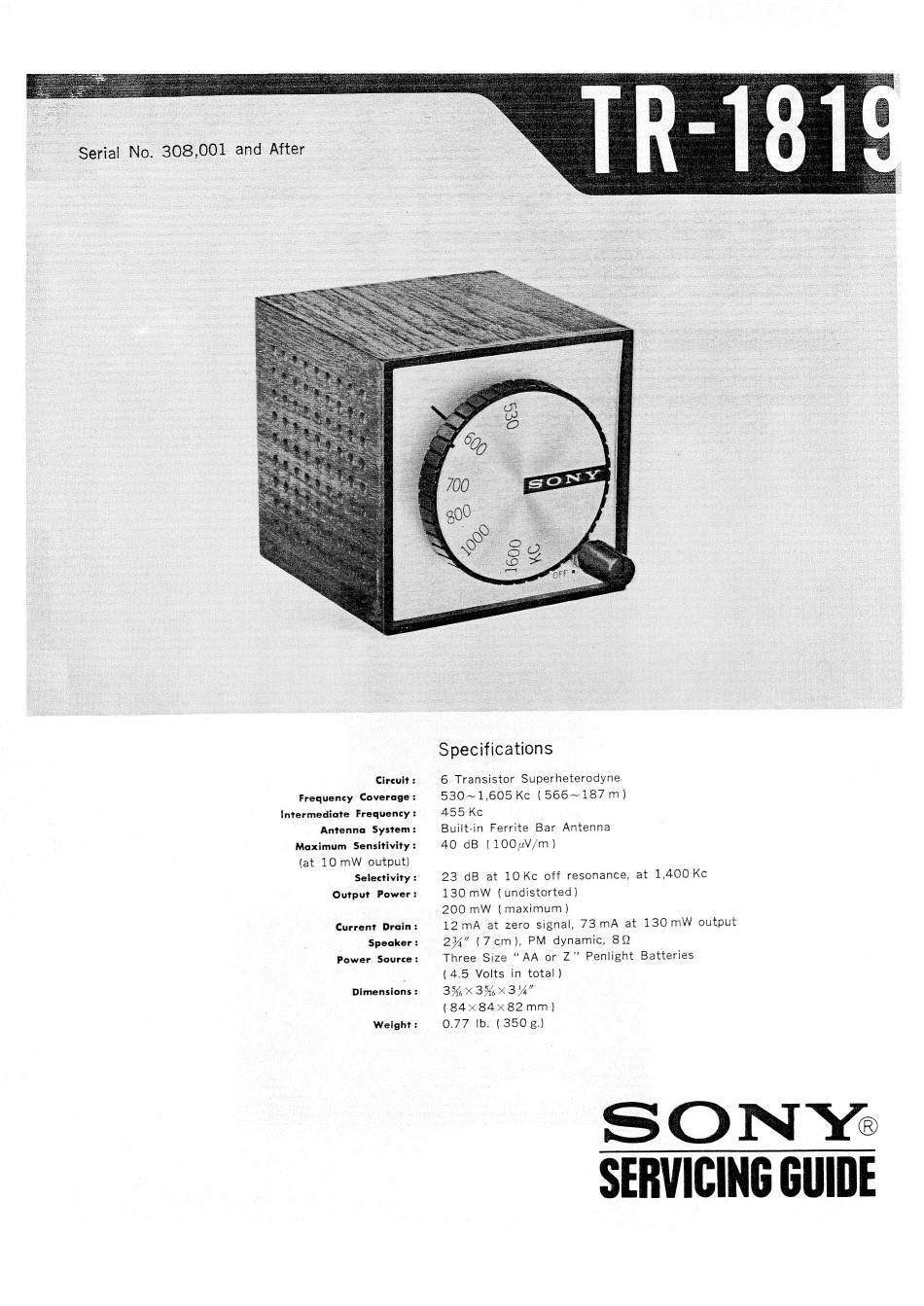

Sony TR-1819 Service Manual

Circuit :
Frequency Coverage :
Intermediate Frequency
Antenna System:
e6
Maximum Sensitivity
(at 10 mW output)
Selectivity
Output Power
Current Drain
Speaker
oa
Power Source
.
Dimensions
es
Weight:
Specifications
6 Transistor Superheterodyne
530~1,605 Ke (566~18/7m)
455 Ke
Built-in Ferrite Bar Antenna
40 dB {(100zuV/m )
200 mW (maximum )
Three Size "AA or Z" Penlight Batteries
(4.5 Volts in total )
33x 356xX3%"
{84x 84x 82mm)
0:77-1bs (350 g.)
SERVICING GUIDE
