Circuit
Frequency
Coverage :
Intermediate Frequency :
Antenna
System :
Maximum
Sensitivity
(at 10mW
output)
Selectivity :
Output Power:
Current
Drain :
Speaker :
Power Source :
Dimensions :
Weight :

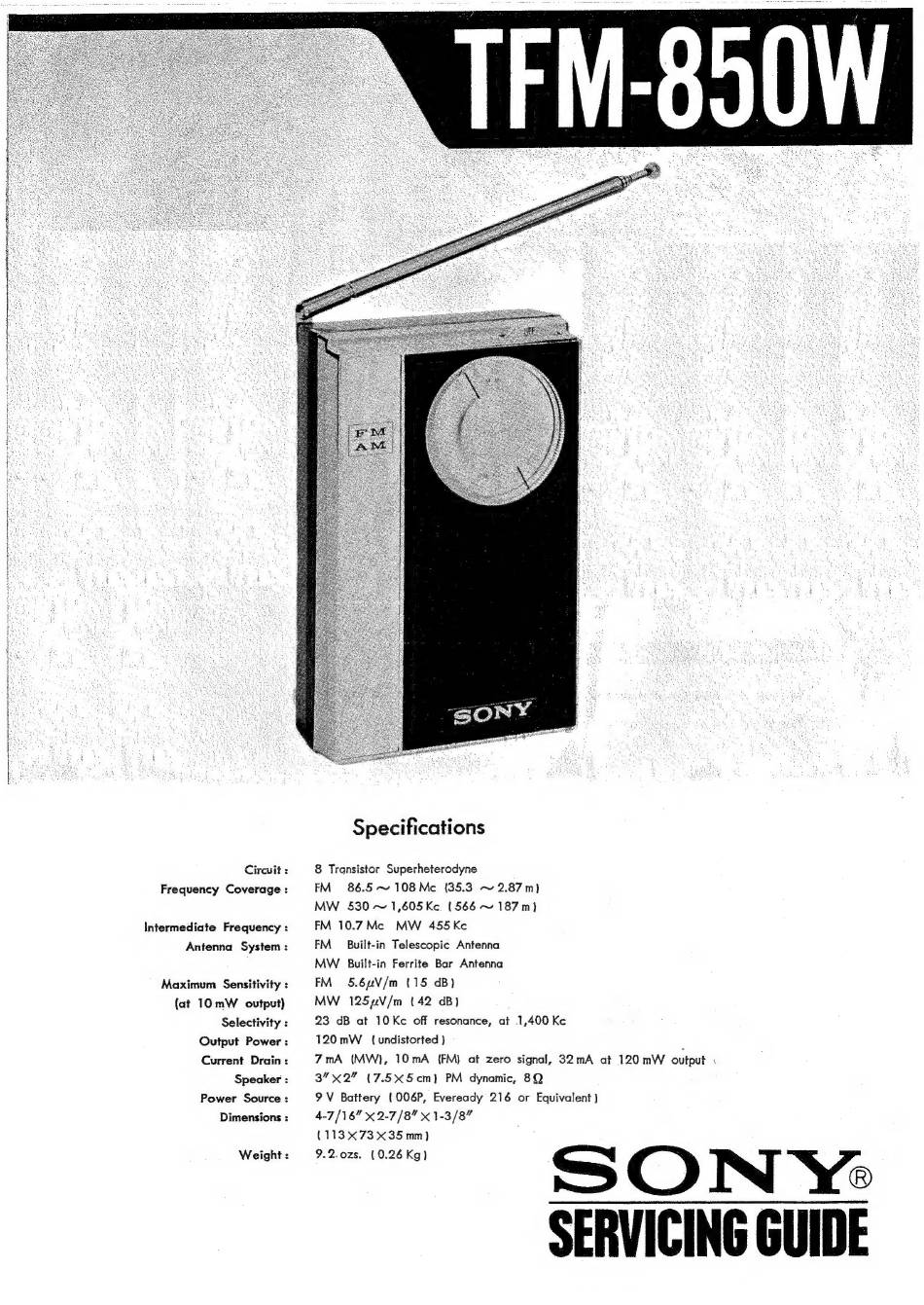

Specifications
8 Transistor Superheterodyne
FM
86.5 ~ 108Me
(35.3
~ 2.87 m)
MW
530 ~ 1,605 Ke (566 ~ 187m}
FM
10.7 Mc
MW
455 Ke
FM
Built-in Telescopic Antenna
MW
Built-in Ferrite Bar Antenna
FM
5.6u4V/m (15 dB)
MW
125uV/m
(42 cB)
23 dB at 10Ke
off resonance,
at 1,400 Ke
120 mW
(undistorted )
7 mA (MW), 10mA (EM) at zero signal, 32mA at 120 mW output :
3"
2" (7.5x5cm)}
PM dynamic, 8Q
9V Battery {(006P, Eveready 216 or Equivalent }
4-716" X2-7/8" X 1-3/8"
(113
X73 X35 mm}
9.2.0zs.
(0.26 Kg)
®
SERVICING GUIDE
