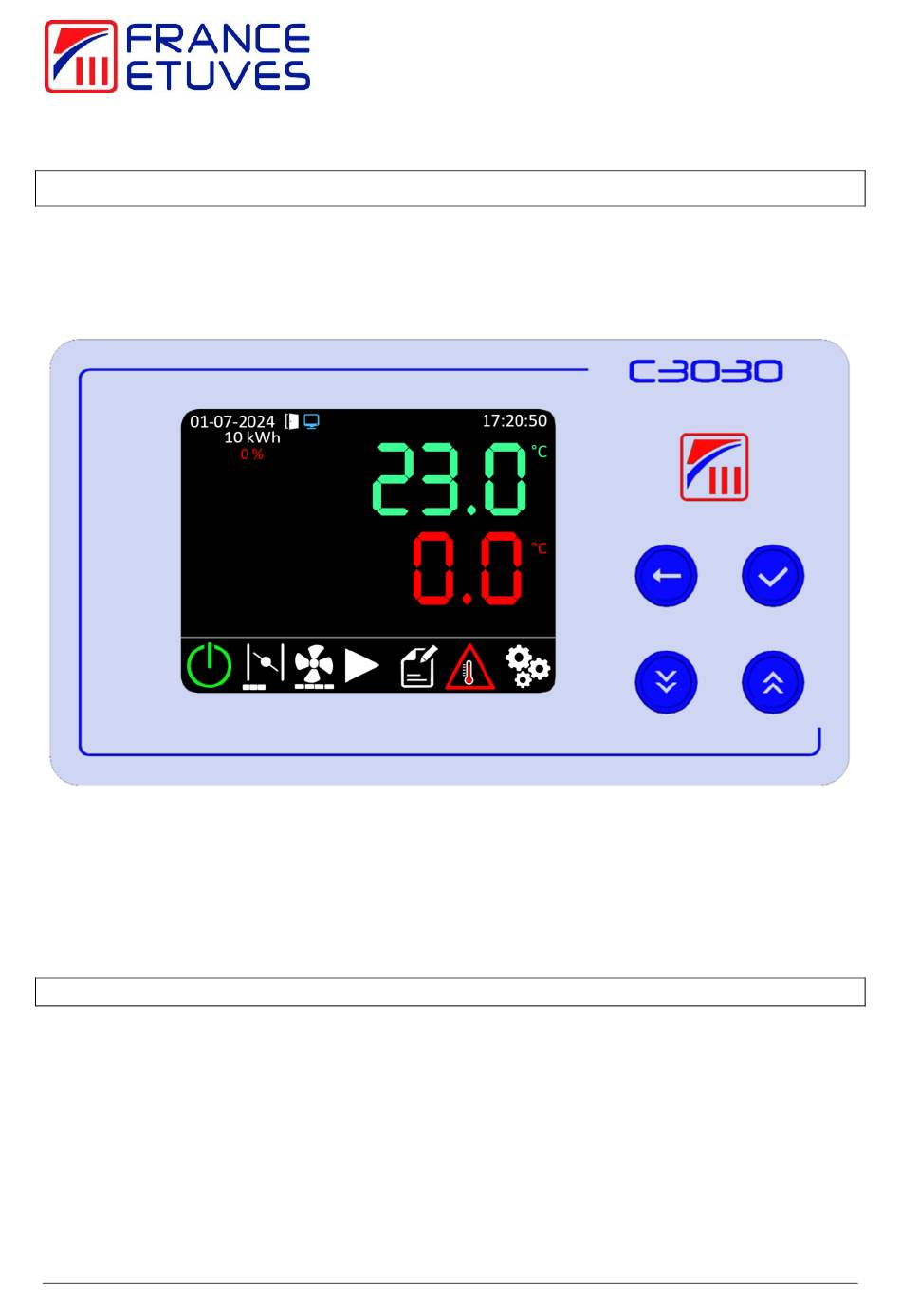

- Page 1 Temperature controller C3030 Original instructions READ THIS MANUAL BEFORE SWITCHING ON THE DEVICE Rev 2 FRANCE-ETUVES 65/67 rue Auguste Meunier 77500 Chelles (FRANCE)
- Page 2 Thank you for choosing a France Etuves product, we hope it will bring you complete satisfaction C3030-EN-2024-10 Page 2 of 56...
-
Page 3: Table Of Contents
8. Controller settings ............................32 8.1 Settings parameters description ......................32 8.2 Defining the parameters ......................... 33 8.2.1: PID regulation ..........................33 8.2.2 Temperature correction: ........................34 8.2.3 Temperature coefficient (for XFE range) ..................38 C3030-EN-2024-10 Page 3 of 56... - Page 4 10 Troubleshooting ............................51 10.1 General safety instructions ........................51 10.2 Failures displayed ..........................51 10.2.1. Electronic thermostat failures ....................... 51 10.2.2. Other failures ..........................52 10.3 Breakdowns ............................53 11 Contacts et links ............................54 C3030-EN-2024-10 Page 4 of 56...
-
Page 5: Introduction
Any intervention must be realized with oven at room temperature Any intervention must be realized by a right skilled engineer. Engineers and users must be provided with the appropriate safety equipment. C3030-EN-2024-10 Page 5 of 56... -
Page 6: Temperature Controller Description
1.2 Temperature controller description This manual is intended for use with the C3030 controller. - Ventilated ovens: Model: XUE; XUELT; XUEHT ; XBE; XL; XXL, XDH ; XTOP ;XHT ;SP. - Vacuum ovens: Model: XFE. Objet Description Graphic display : Displays the measured temperature, the set point temperature and other running parameters. -
Page 7: Graphic Display Presentation
Door open symbol: appears when the door is opened. Oven’s chamber measured temperature. Set Point temperature Power consumed by oven since it was put into service. Heating power (% of the total oven’s power). If no heating, the following icon is not displayed. C3030-EN-2024-10 Page 7 of 56... - Page 8 Vacuum ovens Measured vacuum level in mbar The measured vacuum level is displayed under the heating power. Set point vacuum level. “Vacuum control” / “Closed” / “Atmospheric pressure” See &5.2. Vacuum regulation (XFE) C3030-EN-2024-10 Page 8 of 56...
- Page 9 Stop the timer program Depending on the action you made, the following messages can appear : : Program stop must be validated. If a delayed start has been set : : Wait before starting the program C3030-EN-2024-10 Page 9 of 56...
- Page 10 Ventilated ovens Vacuum ovens If the weekly timer is active and in the working period, the icon disappears and the icon flashes green. If outside of the defined working period, the icon will flash red. C3030-EN-2024-10 Page 10 of 56...
- Page 11 Item Description Information on the C3030 firmware version Serial number of the oven Model of the oven The IP address of the oven Maximum temperature that the oven can reach. In°C Type of ventilation motor.
-
Page 12: On / Off
2. On / Off 2.1. Start-up When the power is turned on, the C3030 puts the oven back in the state before it is turned on and back to the state before it was turned off. If the oven was on standby, you would see the screen saver below:... -
Page 13: Electronic Thermostat For Protection Against Overheating
This offset is used for the whole operating range of the oven. The C3030 controller allows for XUE; XUELT; XBE; XFE range a DIN 12 880 compliant thermostat. The thermostat is equipped with a thermal limiter (TB) which interrupts heating when the temperature exceeds the maximum permitted temperature for protection class 1, according to DIN 12 880. -
Page 14: Thermal Limiter (Tb)
Example of TB mode trigger: Pressing a key on the regulator will stop the audible alarm on the regulator. But the heating cannot be resumed even if the temperature has fallen below the trigger value. C3030-EN-2024-10 Page 14 of 56... -
Page 15: Electronic Protection Thermostat Function In Tww Mode (Automatic Reset)
Press any key to disable the audible alarm. When the failure disappear, the heating can restart and all failure indications also disappear. TWW protection working principle: Temperature in Celsius Thermostat set point Controller set point Measured temperature Regulation Thermostat Time Normal running failure take-over C3030-EN-2024-10 Page 15 of 56... -
Page 16: Electronic Protection Thermostat Function In Twb Mode (Manual Reset)
TWB trigger example: Press any key to stop the audible alarm. But the oven heating can restart only after a manual reset. Even if the measured temperature has gone under the thermostat trigger temperature. C3030-EN-2024-10 Page 16 of 56... -
Page 17: Twb Mode Electronic Thermostat Reset
Press the key to return to the main display. TWB mode thermostat working principle: Temperature In Celsius Electronic thermostat set Controller point set point Measured temperature Regulation After Thermostat Time Normal running failure manual take-over reset C3030-EN-2024-10 Page 17 of 56... -
Page 18: Overheating Protection Thermostat And Sdt Settings
3°C Active : OFF Alarm:NO Press the key to return to the main display. Temperature set : Adjust the « TemperatureMax » parameter with key. Confirm with the key to proceed to the next parameter. C3030-EN-2024-10 Page 18 of 56... -
Page 19: Alarm Tracker
4. Alarm tracker The C3030 also allows to monitor the difference between the measured temperature and the set point temperature with the SDT function: Set point Deviation Tracking. It’s activated after the temperature has reached the setpoint plus or minus the tolerance. If the gap between the measured temperature and the setpoint is over the tolerance set, an alarm will be triggered to warn the user his oven is not heating at the wanted temperature. -
Page 20: Setpoint Deviation Tracking (Sdt) System Working
6 : The SDT monitoring is disabled when the temperature set point is changed. 7 : The SDT monitoring is enabled anew when the measured temperature reaches the tolerance defined around the new set point temperature. C3030-EN-2024-10 Page 20 of 56... -
Page 21: Setting Up Sdt Tolerance
SDT Tolerance : Adjust the « SDT Tolerance » parameter with key. Confirm with the key to proceed to the next parameter If you don’t want to use the SDT monitoring, set the tolerance to ‘0’ °C. C3030-EN-2024-10 Page 21 of 56... -
Page 22: Regulation
Adjust the set point temperature (in Degree Celsius) with key. Set point value is automatically memorized. It is advised to set to ‘0°C’ the temperature set point, to make the oven cool down before switch it off. C3030-EN-2024-10 Page 22 of 56... -
Page 23: Vacuum Regulation (Xfe)
« Vacuum control » : The vacuum control is active, the setpoint vacuum level is displayed in red on the screen and editable, the C3030 acts on the vacuum and the air inlet solenoid valve to bring back the vacuum level at the setpoint. -
Page 24: Timer Program
Each step consists of a temperature ramp, A target duration defining the temperature target holding time and a temperature ramp in Degree Celsius per minute. A cycle contains all the defined steps. The C3030 controller allows to repeat the cycle and to delay its start. 6.1 Timer program structure... -
Page 25: Timer Program Creation
First define the hour duration with the key. Confirm with the key to proceed to the minute duration setting. Define the minute duration with key. Confirm with the key to proceed to the next parameter C3030-EN-2024-10 Page 25 of 56... -
Page 26: Number Of Program Iteration Setting
If you wish to decrease the oven temperature between 2 iterations, a new cooling step with a lower set point than the first step must be defined, in order to allow the oven to cool down. C3030-EN-2024-10 Page 26 of 56... -
Page 27: Guaranteed Soak Band Settings
The 2°C factory set is suitable for most cases. Guaranteed Soak Band : Define the number of loops with the key. Confirm with the key to proceed to the next parameter Guaranteed Soak Band working principle: C3030-EN-2024-10 Page 27 of 56... -
Page 28: Delayed Start Setting
#1 step: Increasing temperature to 100°C with a 3°C/min ramp, then during stabilization for 1h30 #2 step: Increasing temperature to 200°C with a 5°C/min ramp, then during stabilization for 2h. End: At the end of the program, the temperature set point is automatically set to 0°C. C3030-EN-2024-10 Page 28 of 56... -
Page 29: Starting A Program Clock
Example for an immediate start: Example for a delayed start: The delayed start of the program is displayed by the indication on the main display. The remaining time before starting is displayed next to the icon. C3030-EN-2024-10 Page 29 of 56... -
Page 30: Stopping The Timer Program
Once the timer program is stopped, the temperature set point is automatically set to 0°C. 6.5 Power failure controller reaction When the oven is switched on again, the timer program will automatically restart at the running step when power failure occurred. C3030-EN-2024-10 Page 30 of 56... -
Page 31: Weekly Timer (Option)
: the Monday switch-off hour. Repeat the operation to define the operating hour of each day of the week. If you don’t want to run the oven on a day, let the hour settings on “00:00”. C3030-EN-2024-10 Page 31 of 56... -
Page 32: Start Weekly Timer
Derivative time Seconds Degree Celsius Temp offset temperature Degree Celsius Offset Offset applied to the 1 temperature Degree Celsius offset temperature Offset applied to the 2 Degree Celsius temperature 2020-05-19 Date YYYY-MM-DD 15:44:32 Time HH:MM:SS C3030-EN-2024-10 Page 32 of 56... -
Page 33: Defining The Parameters
The parameters are the Proportional band (P), the Reset time (I) and the Derivative time (D). “Settings” display access : Press several times the key to scroll the menu icons until the icon is selected Press the key to enter the settings display. C3030-EN-2024-10 Page 33 of 56... -
Page 34: Temperature Correction
The offsets values could only be adjusted between -3.0°C and +3.0°C. The regulation chain has been factory tested and calibrated. We advise you to calibrate and test your oven at least once a year. C3030-EN-2024-10 Page 34 of 56... - Page 35 Case n°1 : Temp.1 : ---.- and Temp.2 : ---.- : no correction applied to the measured value C3030 Trend C3030-EN-2024-10 Page 35 of 56...
- Page 36 Case n°2 : Temp.1 : 50.0°C and Temp.2 : ---.- The first offset is applied to the whole operating range of the oven. C3030 Trend Case n° 3 : Temp.1 : 50.0°C and Temp.2 : 150.0°C : The 2 offsets are applied according the following schematic :...
- Page 37 Now the temperature displayed by the controller and the reference probe must be the same. Second offset setting : Repeat the operations described above with different temperature. Set the second “Offset” parameter to the newly calculated value. C3030-EN-2024-10 Page 37 of 56...
-
Page 38: Temperature Coefficient (For Xfe Range)
The temperature coefficient function provides an estimation of the temperature in the loading tray center from the measurement made on the oven’s surface. The calculated temperature is the product of the measured temperature by the coefficient. Working principle : C3030-EN-2024-10 Page 38 of 56... -
Page 39: Date And Time
The date is entered in the Year / Month / Day form ; the time in the Hour : Minute : Seconds form. 8.2.7 RS 485 connection The C3030 controller can be remote-controlled with a Modbus connection described in detail below in § 9.1 Modbus protocol The parameters of this link are : The baud rate, the parity bit activation and the Modbus controller address. -
Page 40: Beep
The “Stop heating and fan when the door is open” parameter allows to enable or disable heating and internal fan shut-off once the door is open on XUE/XUELT/XBE range. When the door is open, the icon appears on the main screen. C3030-EN-2024-10 Page 40 of 56... -
Page 41: Vacuum Setup (Xfe)
For example, for a 3mbar tolerance and a set point of 300mbar, the measured vacuum level must be situated between 297mbar and 303mbar. C3030-EN-2024-10 Page 41 of 56... -
Page 42: Program End Alarm
This parameter determines the interval (in seconds) to send data to the CLOUD server (PS: For a value of “0s” the C3030 does not send data) 8.2.14 Ramp rate This parameter is used in simple regulation mode. See paragraph 5.1. -
Page 43: Fan Stop At The End Of Program
To reduce power consumption, the “Fan Stop when program end” parameter allows you to turn off the ventilation at the end of the program. PS: The heater is turned off and the fan continues to run if the temperature is above 80°C. Adjust this parameter with keys. C3030-EN-2024-10 Page 43 of 56... -
Page 44: Automatic Cooling And Proportional Cold Band. (Depending On Options)
These parameters are applicable only if the C3030 controls air renewal. - If the option “Auto cold” is enabled, the C3030 will use air renewal to cool the oven. - The PB Cold parameter is the proportional band dedicated to cooling that adjusts the air renewal opening according to the difference between the measured value and the set point. -
Page 45: Remote Oven Control From A
9. Remote oven control from a P.C. The C3030 controller allows a remote control with a Modbus protocol on a RS485 connection. (see § 8.2.7 its setting). 9.1 Pinout RS485 communication is possible using a SUB-D9 connector located back of the oven. It’s pinout it as follows:... -
Page 46: Modbus Protocol
Byte 2 Function : 06 - Writing Byte 3 Variable address (see paragraph 9.3) Byte 4 Byte 5 Values to write in the variable Byte 6 Byte 7 Cyclic Redundancy Check (calculated) CRC16 : Byte 8 C3030-EN-2024-10 Page 46 of 56... -
Page 47: Controller-Returned Data Frame
CRC16 : Byte n The data frame sent back by the controller in case of writing, is a copy of the received data frame In case of error the controller returns an error code (contact service) C3030-EN-2024-10 Page 47 of 56... -
Page 48: List Of Available Parameters Via Modbus Communication
01 :XUE 02 :XUP 03 :XUELT 04 :XB 05 :XL 06 :XXL 07 :XAS 08 :XFL 09 :XFE 0A :XBR 0B :XUEHT 0C :XBE 0D :XDH 0E :XTOP 0F :XFP 10 :XHT 11 :XM 12 :XBELT 13 :SP C3030-EN-2024-10 Page 48 of 56... - Page 49 °C Heating current (pour XU oven) In decimal of Amps Vacuum measure 0 to 1000 (mBar) Vacuum setpoint 0 to 1000 (mBar) Intensity in the fan port Current value of the brewing motor in amps C3030-EN-2024-10 Page 49 of 56...
-
Page 50: France-Étuves Remote Control Software
In minutes 0 Stop 1 Start Program command 2 Pause 3 Delayed start 9.4. France-étuves remote control software A remote control software for a Windows OS computer is available for downloading on this website: www.france-étuves.com C3030-EN-2024-10 Page 50 of 56... -
Page 51: Troubleshooting
The gap between the temperature set point. regulator’s and the thermostat’s temperature (See §3.4 set point is too small. If the failure remains, contact the The electronic thermostat in TWB after sales team. mode triggered C3030-EN-2024-10 Page 51 of 56... -
Page 52: Other Failures
Communication failure between Check the wiring between the the temperature controller and the electronic cards. thermostat card. Contact the after sales team. * The operation must be realized by a trained, skilled and qualified technician C3030-EN-2024-10 Page 52 of 56... -
Page 53: Breakdowns
Change the setting of the weekly don’t increase the temperature inactive. timer or disable. in the oven See §7. Weekly timer (option) Pictogram displayed * The operation must be realized by a trained, skilled and qualified technician. C3030-EN-2024-10 Page 53 of 56... -
Page 54: Contacts Et Links
11 Contacts et links Service Contact www.france-etuves.com/store Ordering parts +33 (0)1 64 21 30 60 sav@france-etuves.com www.france-etuves.com/sav-support After Sale Services +33 (0)1 64 21 30 60 sav@france-etuves.com www.france-etuves.com/contact Sales department +33 (0)1 64 21 30 60 sales@france-etuves.com C3030-EN-2024-10 Page 54 of 56... - Page 55 C3030-EN-2024-10 Page 55 of 56...
- Page 56 FRANCE ETUVES 65/67 rue Auguste Meunier 77500 Chelles – FRANCE Phone : +33 1 64 21 30 60 Fax : +33 1 64 21 30 86 Website: www.france-etuves.com...
