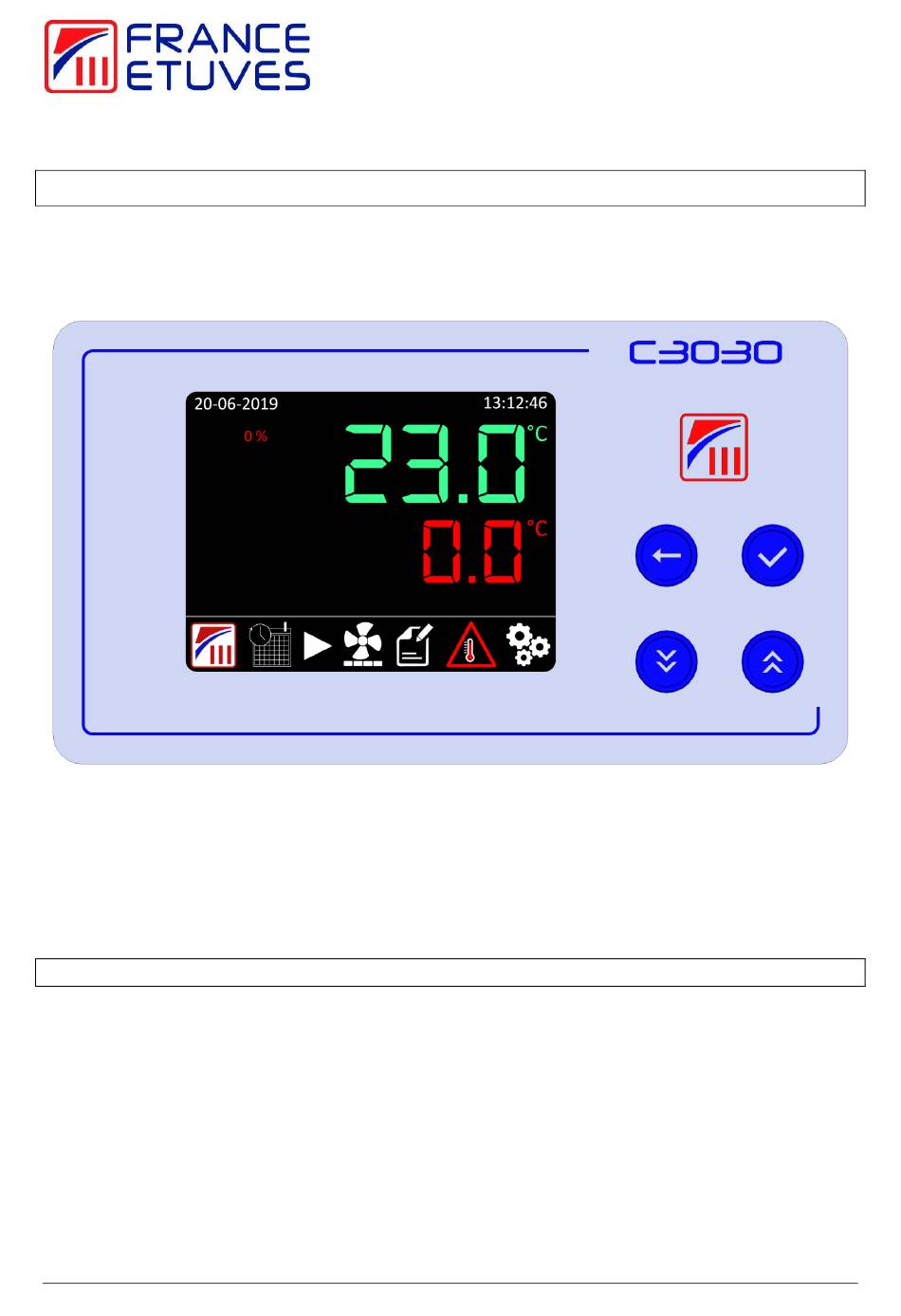

- Page 1 Temperature controller C3030 Original instructions READ THIS MANUAL BEFORE SWITCHING ON THE DEVICE Rev 2 FRANCE-ETUVES 65/67 rue Auguste Meunier 77500 Chelles (FRANCE)
- Page 2 Thank you for choosing a France Etuves product, we hope it will bring you complete satisfaction C3030 - 2021-09 Page 2 of 44...
-
Page 3: Table Of Contents
6.2.5 Temperature coefficient function working ..................33 6.2.6 Date and time ..........................34 6.2.7 RS 485 connection : ........................34 6.2.8 Password ............................35 6.2.9 Beep ..............................35 6.2.10 Heating and fan stop when door is open ..................36 C3030 - 2021-09 Page 3 of 44... - Page 4 7.3. France-étuves remote control software ....................40 8 Troubleshooting ............................41 8.1 General safety instructions ........................41 8.2 Failures displayed ..........................41 8.2.1. Electronic thermostat failures ......................41 8.2.2. Other failures ..........................42 8.3 Breakdowns ............................43 C3030 - 2021-09 Page 4 of 44...
-
Page 5: Introduction
Any intervention must be realized with oven at room temperature Any intervention must be realized by a right skilled engineer. Engineers and users must be provided with the appropriate safety equipment. C3030 - 2021-09 Page 5 of 44... -

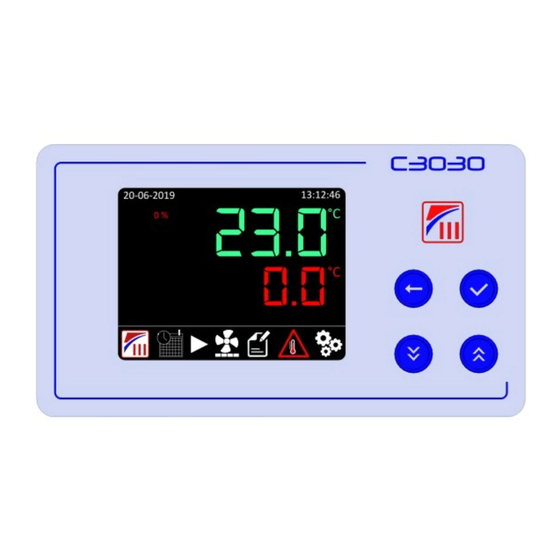

Page 6: Temperature Controller Description
Allows to enter in the selected icon display or increase / decrease the internal fan speed if the fan icon is selected. In a display with editable parameters : Allows to adjust the value of the selected parameter. C3030 - 2021-09 Page 6 of 44... -
Page 7: Graphic Display Presentation
Heating power (% of the total oven’s power). If no heating, the following icon is not displayed. Going to an information display (software version, oven type, maximal oven temperature) Weekly timer setting Start the program C3030 - 2021-09 Page 7 of 44... - Page 8 Measured vacuum level in mbar The measured vacuum level is displayed under the heating power. If the weekly timer is active and out of the working set period, the icon disappears and the icon appears blinking. C3030 - 2021-09 Page 8 of 44...
- Page 9 Depending on the action you made, the following messages can appear : : Program paused : Program stop must be validated. : The program is finished If a delayed start has been set : : Wait before starting the program C3030 - 2021-09 Page 9 of 44...
-
Page 10: Electronic Thermostat For Protection Against Overheating
This offset is used for the whole operating range of the oven. The C3030 controller allows for XUE ; XUELT ; XBE ; XFE range a DIN 12 880 compliant thermostat. The electronic thermostat can be used in 2 different ways TWW mode: with automatic reset (3.1. - Page 11 Objet Description SDT parameters Temperature gap allowed for the SDT, in Celsius. Set to 0°C, SDT tracking disabled SDT activation status indication. SDT status indication C3030 - 2021-09 Page 11 of 44...
-
Page 12: Electronic Protection Thermostat Function In Tww Mode (Automatic Reset)
Press any key to disable the audible alarm. When the failure disappear, the heating can restart and all failure indications also disappear. TWW protection working principle: Temperature in Celsius Thermostat set point Controller set point Measured temperature Regulation Thermostat Time Normal running failure take-over C3030 - 2021-09 Page 12 of 44... -
Page 13: Electronic Protection Thermostat Function In Twb Mode (Manual Reset)
« Alarm Reset » button is selected. Press the key to reset the thermostat. The “Alarm Reset” disappears thermostat is reset. Press the key to return to the main display. C3030 - 2021-09 Page 13 of 44... -
Page 14: Setpoint Deviation Tracking (Sdt) System Working
“SDT” indication: The red display and the “SDT” indication disappear when the measured temperature value goes back within the tolerance. C3030 - 2021-09 Page 14 of 44... -
Page 15: Overheating Protection Thermostat And Sdt Settings
Iheat: 5.9 A define it in TWW (automatic reset) or TWB (manual reset) mode. Confirm with the key to proceed to the Setpoint Deviation Tracking next parameter. Tolerance ± 3°C Active : OFF Alarm:NO C3030 - 2021-09 Page 15 of 44... - Page 16 Adjust the « SDT Tolerance » parameter with key. Confirm with the key to proceed to the next parameter If you don’t want to use the SDT monitoring, set the tolerance to ‘0’ °C. C3030 - 2021-09 Page 16 of 44...
-
Page 17: Manual Regulation
Adjust the set point temperature (in Degree Celsius) with key. Set point value is automatically memorized. It is advised to set to ‘0°C’ the temperature set point, to make the oven cool down before switch it off. C3030 - 2021-09 Page 17 of 44... -
Page 18: Program
Degree Celsius per minute can also be defined for each step. A cycle contains all the defined steps. The C3030 controller allows to repeat the cycle and to delay its start. 4.1 Program structure... -
Page 19: Program Creation
Confirm with the key to procced to the minute duration setting. Define the minute duration with key. Confirm with the key to proceed to the next parameter The first step is now defined. C3030 - 2021-09 Page 19 of 44... -
Page 20: Number Of Program Iteration Setting
Program example with repetition and cooling between 2 cycles: Cooling time to reach the 2nd step temperature set point before starting a new heating cycle Temperature in Celsius 3°/min 1h30 3°/min 1h30 3°/min 1h30 Time C3030 - 2021-09 Page 20 of 44... -
Page 21: Guaranteed Soak Band Settings
Guaranteed Soak Band working principle : Guaranteed Soak Band Temperature (Set to 2°C) in Celsius Set Point Measured temperature Time Temperature increase to Program end Level duration 200 °C countdown from 198°C 3°C/mn 1h30 C3030 - 2021-09 Page 21 of 44... -
Page 22: Delayed Start Setting
Press the key to return to the main display. 4.2.6 Program example Settings : Execution: Temperature in Celsius 5°/min 1h30 3°/min 1h30 Duration Delayed start #1 Step #2 Step C3030 - 2021-09 Page 22 of 44... -
Page 23: Starting A Program
Press the key to start the program Confirmation : A indication appears. Confirm by pressing the key to start the program. Otherwise press the key to cancel Example for an immediate start : C3030 - 2021-09 Page 23 of 44... -
Page 24: Program Pause
A running program can be paused at any time. The current parameters will be kept until the program restarts. To pause a running program: Press the key to select Press the key to pause the program. C3030 - 2021-09 Page 24 of 44... -
Page 25: Stopping The Program
Confirm the end of the program by pressing any key of the controller. 4.7 Power failure controller reaction When the oven is switched on again, the program will automatically restart at the running step when power failure occurred. C3030 - 2021-09 Page 25 of 44... -
Page 26: Weekly Timer (Option)
Once all the operation hour set, the « start » word will be selected. Press the key to run the weekly timer. Then the oven will only run during the set operating hours. While waiting, the icon will appear blinking. C3030 - 2021-09 Page 26 of 44... -
Page 27: Controller Settings
DATE time Time HH:MM:SS Transmission speed : (1200, 2400, 4800, 9600, Baud 19200, 38400, 43000, Bauds 19200 57600, 76800, 115200, 128000, 230400, 256000, 460600, 921600) Parity Parity No – Even-Odd Address Modbus controllers address C3030 - 2021-09 Page 27 of 44... - Page 28 1-255 Group Parameter Description Unit Settings page password Beep emission when pressing the controller keys. Fan and heating cut when opening the door. C3030 - 2021-09 Page 28 of 44...
-
Page 29: Defining The Parameters
Confirm with the key to proceed to the next parameter Reset time setting : To change the Reset time, adjust the parameter with the key. Confirm with the key to proceed to the next parameter C3030 - 2021-09 Page 29 of 44... -
Page 30: Temperature Correction
The regulation chain has been factory tested and calibrated. We advise you to calibrate and test your oven at least once a year. Case n°1 : Temp.1 : ---.- and Temp.2 : ---.- : no correction applied to the measured value C3030 Trend C3030 - 2021-09 Page 30 of 44... - Page 31 50°C with the key. Confirm with the key to proceed to the next parameter Adjust the first “Offset” parameter to 0.0°C with key. Confirm with the key to proceed to the next parameter C3030 - 2021-09 Page 31 of 44...
- Page 32 Now the temperature displayed by the controller and the reference probe must be the same. Second offset setting : Repeat the operations described above with different temperature. Set the second “Offset” parameter to the newly calculated value. C3030 - 2021-09 Page 32 of 44...
-
Page 33: Temperature Coefficient (For Xfe Range)
The temperature coefficient function provides an estimation of the temperature in the loading tray center from the measurement made on the oven’s surface. The calculated temperature is the product of the measured temperature by the coefficient. Working principle : C3030 - 2021-09 Page 33 of 44... -
Page 34: Date And Time
The date is entered in the Year / Month / Day form ; the time in the Hour : Minute : Seconds form. 6.2.7 RS 485 connection : The C3030 controller can be remote-controlled with a Modbus connection described in detail below in § 6.1 Modbus protocol The parameters of this link are : The baud rate, the parity bit activation and the Modbus controller address. -
Page 35: Password
This parameter allows definition of a password in order to access the controller settings (default value : ‘10’). 6.2.9 Beep The “Beep” parameter allows to enable or disable a beep emission when pressing the controller keys. C3030 - 2021-09 Page 35 of 44... -
Page 36: Heating And Fan Stop When Door Is Open
The “Stop heating and fan when the door is open” parameter allows to enable or disable heating and internal fan shut-off once the door is open on XUE/XUELT/XBE range. When the door is open, the icon appears on the main screen. C3030 - 2021-09 Page 36 of 44... -
Page 37: Remote Oven Control From A
7. Remote oven control from a P.C. The C3030 controller allows a remote control with a Modbus protocol on a RS485 connection. (see § 5.2.7 RS485 connection for its setting). 7.1. Modbus protocol 7.1.1 Data frame to send to the controller Below, the layout of the data frame to send to the controller if you want to read data. -
Page 38: Controller-Returned Data Frame
0 First start 1 Ramp in progress Program status 2 Dwell in progress 3 Ramp paused 4 Dwell paused Target duration left In minutes Time before delayed start left In minutes C3030 - 2021-09 Page 38 of 44... - Page 39 (disabled) 0 to 1000 (mBar) Step 1 ramp In decimal of Degree Celsius per minute Step 1 temperature set point In decimal of Degree Celsius Step 1 target duration In minutes C3030 - 2021-09 Page 39 of 44...
-
Page 40: France-Étuves Remote Control Software
0 Stop 1 Start Program command 2 Pause 3 Delayed start 7.3. France-étuves remote control software A remote control software for a Windows OS computer is available for downloading on this website : www.france-étuves.com C3030 - 2021-09 Page 40 of 44... -
Page 41: Troubleshooting
Tracking) monitoring triggered §2.6 Overheating protection thermostat and SDT settings) SDT too small or sudden temperature change in the oven (door open If the failure remains, contact the while heating) after sales team. C3030 - 2021-09 Page 41 of 44... -
Page 42: Other Failures
Communication failure between Check the wiring between the the regulator and the thermostat electronic cards. card. Contact the after sales team. * The operation must be realized by a trained, skilled and qualified technician C3030 - 2021-09 Page 42 of 44... -
Page 43: Breakdowns
Change battery displays an inconsistent time, discharged. controller. no longer saving the Contact the after sales team. configured parameters. * The operation must be realized by a trained, skilled and qualified technician. C3030 - 2021-09 Page 43 of 44... - Page 44 FRANCE ETUVES 65/67 rue Auguste Meunier 77500 Chelles – FRANCE Phone : +33 1 64 21 30 60 Fax : +33 1 64 21 30 86 Website : www.france-etuves.com...
