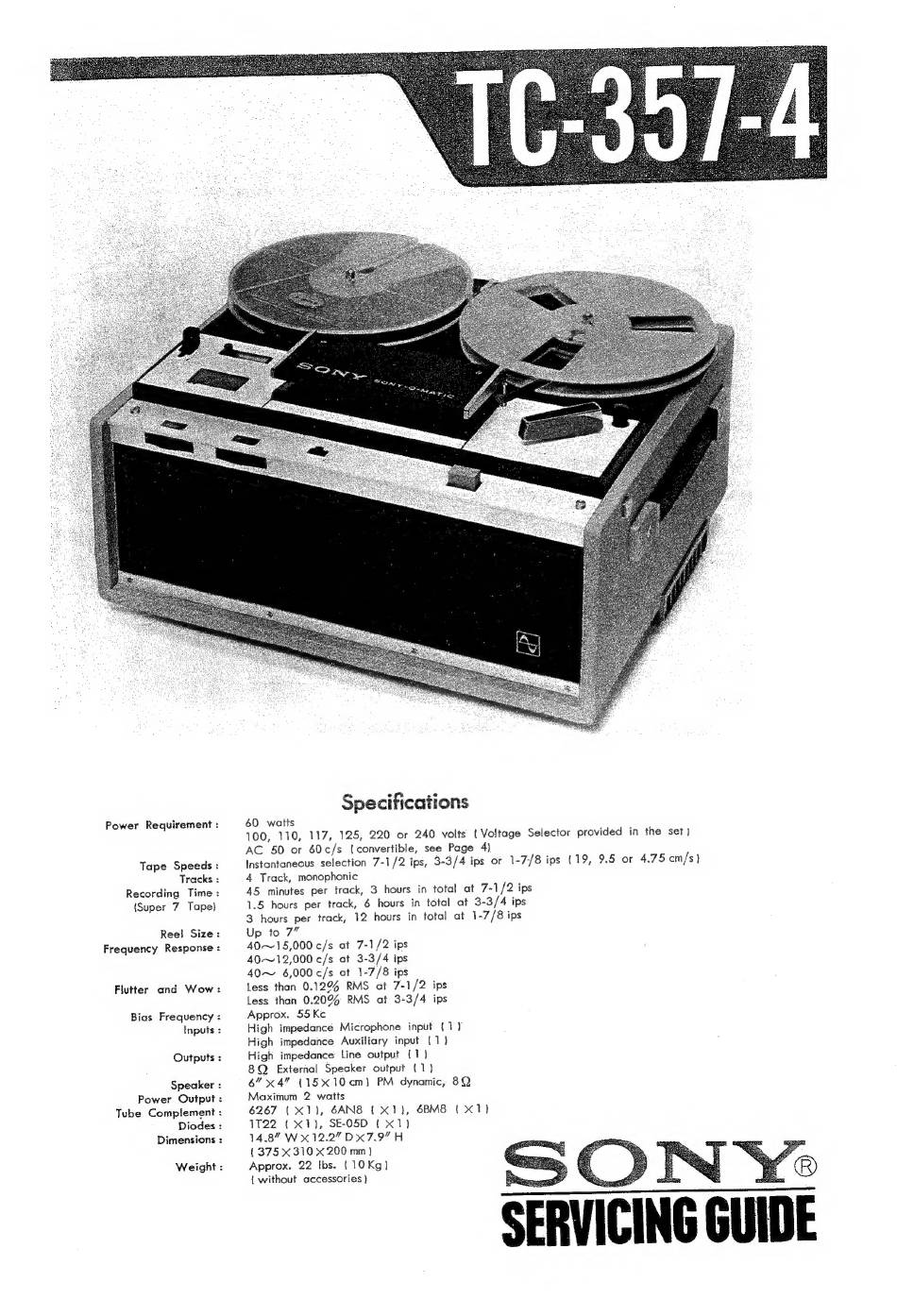

Sony TC-357-4 Servicing Manual

Power Requirement :
Tape Speeds:
Tracks :
Recording Time:
(Super 7 Tape)
Reel Size:
Frequency Response :
Flutter and Wow:
Bias Frequency :
Inputs :
Outputs :
Speaker :
Power Output:
Tube Complement :
Diodes :
Dimensions :
Weight :
"n *
Specifications
60 watts
4 Track, monophonic
Up to 7"
40~15,000 c/s at 7-1/2 ips
40~12,000 c/s at 3-3/4 ips
40~ 6,000c/s at 1-7/8 ips
Less than 0.1294 RMS at 7-1/2 ips
Less than 0.209% RMS at 3-3/4 ips
Approx. 55 Ke
High impedance Microphone input (1)
High impedance Auxiliary input (1 }
High impedance Line output (1)
8Q External Speaker output {1}
6" x4" (15X 10cm) PM dynamic, 8Q
Maximum 2 watts
6267 (X1), 6AN8 { X1}, 6BM8 ( X1)
1T22 ( X1), SE-OS5D ( X1)
14.8" WX 12.2" DX7.9% H
(375 X 310 X 200 mm }
Approx. 22 Ibs. | 10Kg)
{ without accessories }
