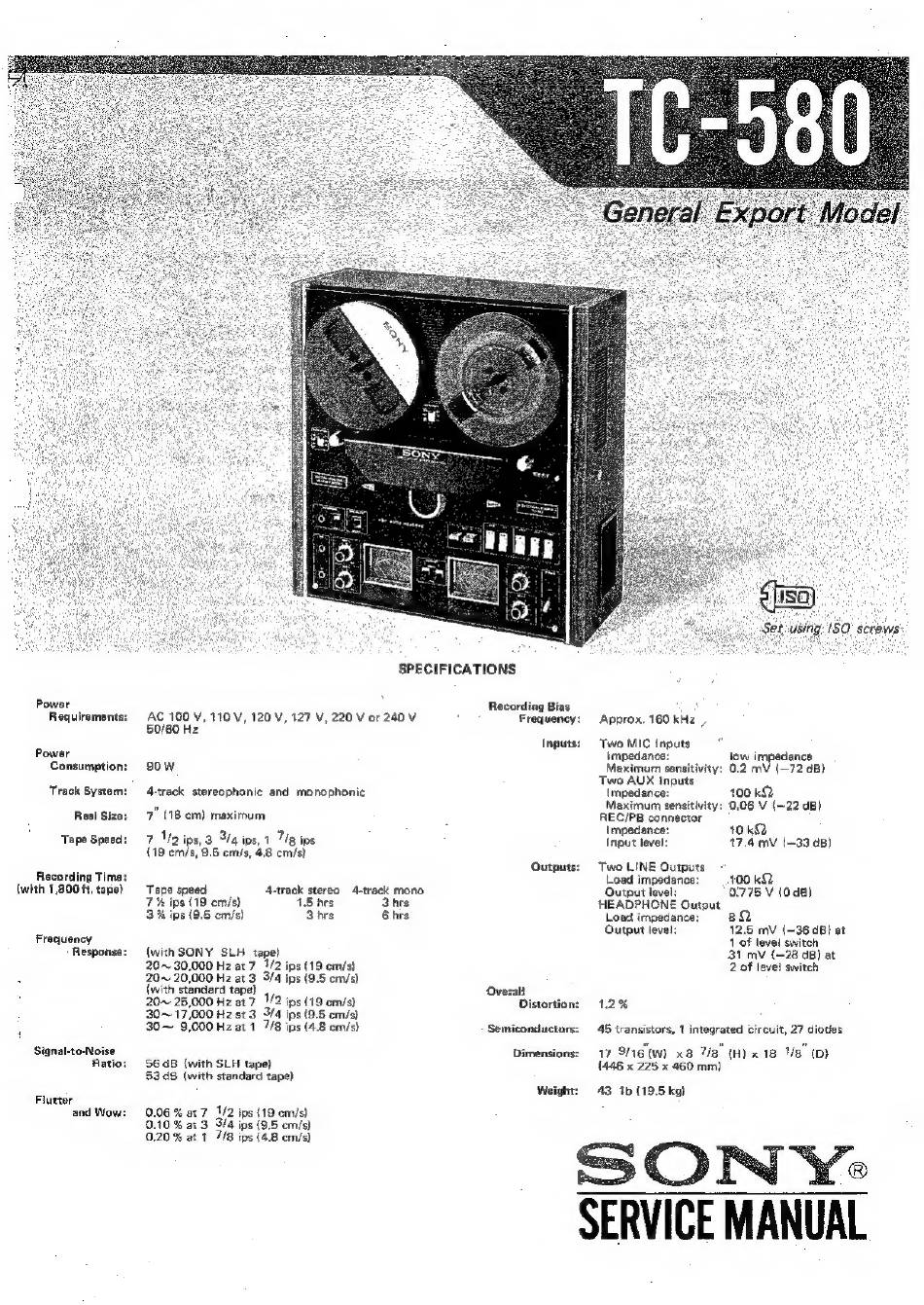

Sony TC-580 Service Manual

Power
Requirements:
Power
Consumption:
Track System:
Reel Size;
Tape Speed:
Recording Time:
(with 1,800 ft, tape)
Frequency
Responsa:
Signal-to-Noise
Ratio:
Flutter
and Wow:
AC 160 V, 110 V, 120 V, 127 V, 220 V or 240 V
50/60 Hz
90W
4-track stereophonic and monophonic
7" (18 em) maximum
7/2 ips, 3 344 ips, 1 7/8 ins
{19 cm/s, 9.6 cm/s, 4,8 cm/s)
Tape speed
7 % ips (19 em/s} 1.5 bes
3% ips (9.5 cm/s) Shrs
(with SONY SLH tape}
20~ 30,000 Hz at 7 1/2 ips (19 cm/s)
20~ 20,000 Hz at 3 3/4 ips (9.5 cm/s}
(with standard tape)
20~ 25,000 Hz at 71/2 ips (19 emis}
30~ 17,000 Hz at 3 3/4 ips (9.5 cm/s}
30~ 9,000 Hz at 1 7/8 ips (4.8 cm/s}
56 dB (with SLH tape}
53 d8 (with standard tape)
0.06 % at 7 1/2 ips (19 om/s}
0.10 % at 3. 3/4 ips (9.5 cm/s)
0.20% at 1 7/8 ips (4.8 cm/s}
SPECIFICATIONS
4-track stereo 4-track mono
3hrs
6 hrs
Recording Bias
Frequency:
Inputs:
Outputs:
'Overalt
Distortion:
Semiconductors:
Dimensions:
Weight:
Approx. 160 kHz ,
Two MIC inputs .
impedance:
Maximum sensitivity:
Two AUX inputs
impedance:
Maximum sensitivity:
REC/PB connector
Impedance:
Input level:
Two LINE Outputs
Load impedance:
Output level:
HEADPHONE Output
Load impedance:
Output level:
1.2%
low impedance
0.2 mV (—72 cB}
100 kQ,
0.06 V (~22 dB)
10kQ
17.4 mV (33 dB)
100 k&2
0:775 V (0 d8)
BQ
12.6 mV (-36 dB) at
1 of level switch
31 mV {28 dB) at
2 of level switch
45 transistors, 1 integrated circuit, 27 diodes
17 ew) x8 Ve
(446 x 225 x 460 mm)
43 tb (19.5 kg}
(H} x18 1/8" (0)
ON Ye
SERVICE MANUAL
