SMC Networks BR24Q - annexe 1 Quick Installation Manual page 2

rt
and Router
Using The Installation CD
SMCBR24Q SMCBR24Q SMCBR24Q SMCBR24Q
Installation CD
Installation CD Installation CD
Hardware Installation
When you have completed the network setup outlined in the previous section, put the
SMC Installation and Documentation CD into your CD-ROM drive.
For initial setup, it is recommended that you use the Install Wizard on the computer
Hardware Installation
that was originally connected to your Broadband Internet connection.
NOTE: The EZ Installation CD only works on a Windows-based computer. If you are
using any other operating system, please configure the SMCBR24Q router through the
web-based interface. See the User Guide for further detail.
The Installation CD should auto-run to display the splash screen below. If it does not,
browse the contents of your CD-ROM drive, double click on the Router icon.

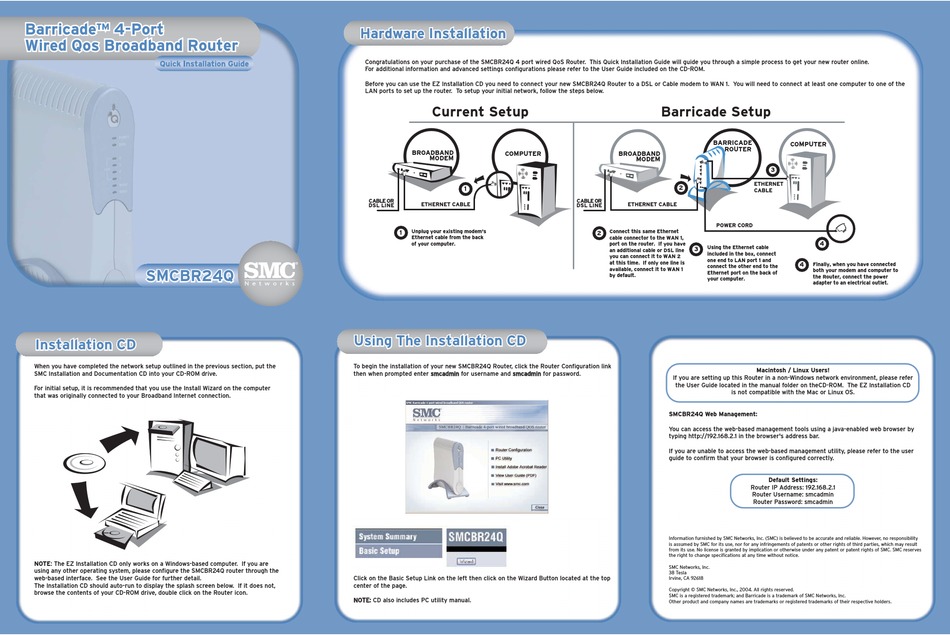

Congratulations on your purchase of the SMCBR24Q 4 port wired QoS Router. This Quick Installation Guide will guide you through a simple process to get your new router online.
For additional information and advanced settings configurations please refer to the User Guide included on the CD-ROM.
Before you can use the EZ Installation CD you need to connect your new SMCBR24Q Router to a DSL or Cable modem to WAN 1. You will need to connect at least one computer to one of the
LAN ports to set up the router. To setup your initial network, follow the steps below.
Using The Installation CD
Barricade™ 4-Port
CABLE OR
DSL LINE
QoS Broadband Router
Barricade™ 4-Port
QoS Broadband Router
Using The Installation CD Using The Installation CD
To begin the installation of your new SMCBR24Q Router, click the Router Configuration link
then when prompted enter s s m m c c a a d d m m i i n n for username and s s m m c c a a d d m m i i n n for password.
Installation CD
Click on the Basic Setup Link on the left then click on the Wizard Button located at the top
center of the page.
Hardware Installation
N N O O T T E E : : CD also includes PC utility manual.
Current Setup
BROADBAND
COMPUTER
MODEM
1
CABLE OR
ETHERNET CABLE
DSL LINE
Unplug your existing modem's
1
Ethernet cable from the back
of your computer.
SMCBR24Q
SMCBR24Q
Barricade™ 4-Port
QoS Broadband Router
Barricade Setup
BARRICADE
ROUTER
BROADBAND
MODEM
3
ETHERNET
2
CABLE
ETHERNET CABLE
POWER CORD
Connect this same Ethernet
2
cable connector to the WAN 1,
port on the router. If you have
Using the Ethernet cable
3
an additional cable or DSL line
included in the box, connect
you can connect it to WAN 2
one end to LAN port 1 and
at this time. If only one line is
connect the other end to the
available, connect it to WAN 1
Ethernet port on the back of
by default.
your computer.
Macintosh / Linux Users!
If you are setting up this Router in a non-Windows network environment, please refer
the User Guide located in the manual folder on theCD-ROM. The EZ Installation CD
is not compatible with the Mac or Linux OS.
SMCBR24Q Web Management:
You can access the web-based management tools using a java-enabled web browser by
typing http://192.168.2.1 in the browser's address bar.
If you are unable to access the web-based management utility, please refer to the user
guide to confirm that your browser is configured correctly.
Default Settings:
Router IP Address: 192.168.2.1
Router Username: smcadmin
Router Password: smcadmin
Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility
is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties, which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves
the right to change specifications at any time without notice.
SMC Networks, Inc.
38 Tesla
Irvine, CA 92618
Copyright © SMC Networks, Inc., 2004. All rights reserved.
SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc.
Other product and company names are trademarks or registered trademarks of their respective holders
SMCBR24Q
U
COMPUTER
Installation CD
4
4 Finally, when you have connected
both your modem and computer to
the Router, connect the power Hardware Insta
adapter to an electrical outlet.
.
