INSTRUCTION MANUAL
Special tips:
1.Before installation and operation, please read this instruction manual carefully.
2.Please save this manual for future reference.
3.Product may vary slightly from the item pictures due to model upgrades.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARATHON and is the answer not in the manual?

Questions and answers

Summary of Contents for Trax MARATHON

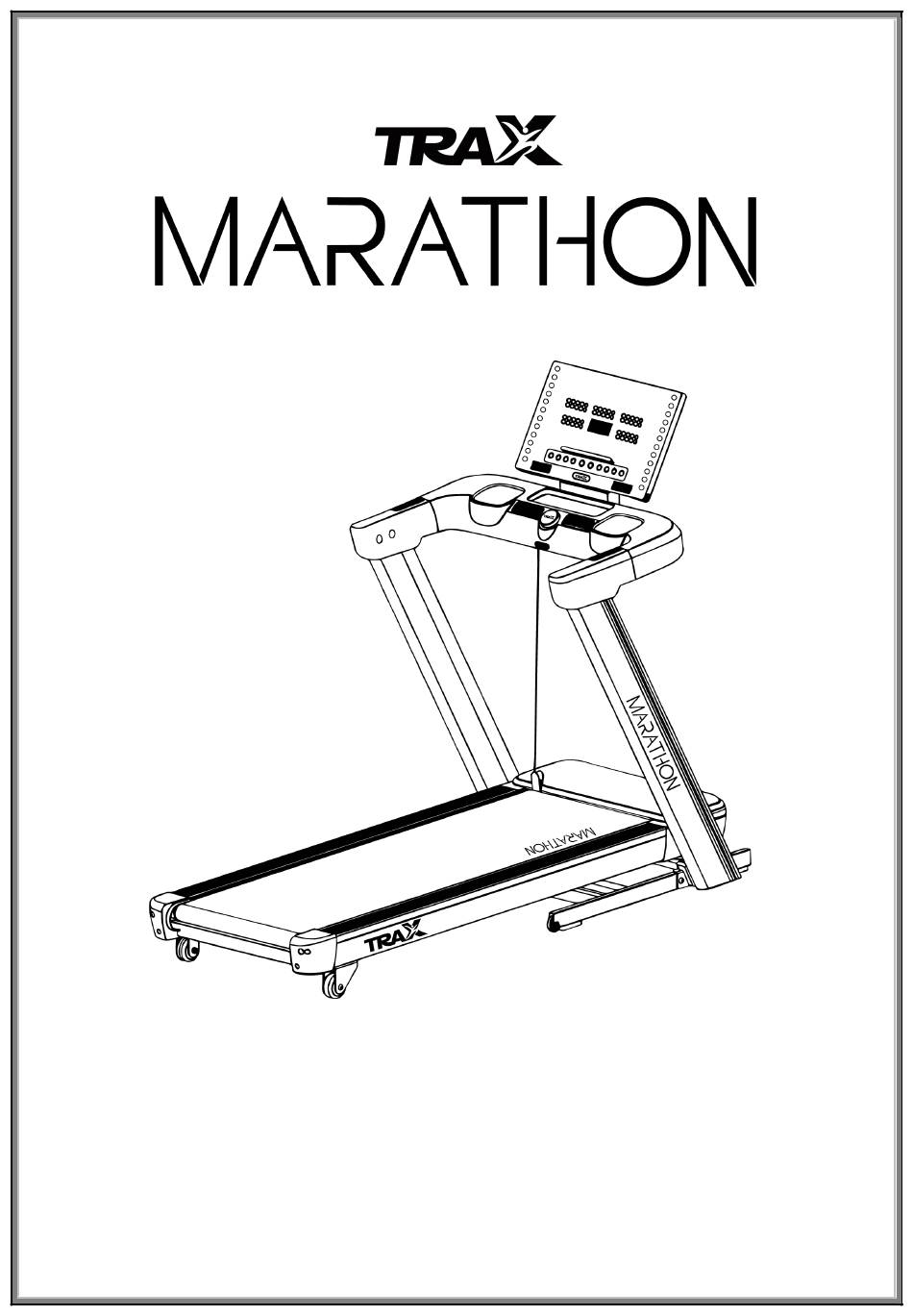

  • Page 1 INSTRUCTION MANUAL Special tips: 1.Before installation and operation, please read this instruction manual carefully. 2.Please save this manual for future reference. 3.Product may vary slightly from the item pictures due to model upgrades.
  • Page 2: Table Of Contents

    Index Electrical Safety Instruction ................... 1 Important Safety Instruction ...................2 Important Operating Instructions ................... 3 Assembly Parts and Tools Required ................4 Assemble the Treadmill ....................5-8 How to Fold&Unfold ....................9-11 How to Move ........................ 12 Important Electrical Information ..................13 Operation Guide ......................
  • Page 3: Electrical Safety Instruction

    Electrical Safety Instruction When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER –To reduce the risk of electrical shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –To reduce the risk of burns, fire, electric shock, or injury to persons: 1.
  • Page 4: Important Safety Instruction

    Important Safety Instruction To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
  • Page 5: Important Operating Instructions

    Important Operating Instructions 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. 4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray from walking in the center of the belt.
  • Page 6: Assembly Parts And Tools Required

    Assembly Parts and Tools Required Please check carefully if all items inside the packaging box are complete and in good condition. If anything is missing or damaged, please contact customer service!
  • Page 7: Assemble The Treadmill

    Assemble the Treadmill STEP 1 Fix the left upright tube (C) to the bottom frame and secure it firmly with below bolts and tool. STEP 2 Connect the signal wire pins of E1-lower&E2. Fix the right upright tube (B) to the bottom frame and secure firmly with below bolts and tool. Attention: Do not pinch the wire during fix of all bolts.
  • Page 8 STEP 3 Connect signal wire pins of E1-upper&E3. Fix the handle bar set (D) to both left&right upright tubes,and secure with below bolts and tool. Attention: Do not pinch the wire during fix of all bolts. STEP 4 Connect signal wire pins of E4&E5. Fix the console set (I) to the handle bar set and secure it firmly with below bolts and tool.
  • Page 9 STEP 5 Fix console back cover (E) to the console set (I) , and secure it firmly with below bolts and tool. STEP 6 Insert 4pcs of caps (J) into the left right handle bars.
  • Page 10 STEP 7 Fix left and right upright tube covers(L&K) to the frame with below way. STEP 8 Insert the safety key (F) into the socket of the console, and also attach the clip of the safety pulling rope to your clothing before every time running. Assemble complete! Please put the safety key to where the children are not easy to get when treadmill is not in use.
  • Page 11: How To Fold&Unfold

    How to Fold & Unfold This is a power folding treadmill, fold & unfold is controlled by button located on right side of console set. (No.2 FOLD/UNFOLD button) Unfold the treadmill: Attention: Before unfolding, please make sure that there are no people, pets or objects are under the running deck to avoid possible injuries may caused by crushing.
  • Page 12 Fold the treadmill: Attention: Before folding, please make sure that there are no people, pets or objects are placed on the running deck. When the machine is under unfolded state, and you want to fold the treadmill, press No.2 FOLD/UNFOLD button for folding. -During the process of folding, the console will show “FOLDING”.
  • Page 13 Lubrication of folding mechanism: 1. This machine is a power folding mechanism, the slight folding/unfolding sound that may occur during the process of folding/unfolding is normal, please rest assured to use it. 2. If the treadmill has been used for a long time, and the folding/unfolding process is accompanied with abnormal noise, it means that the rotation shaft may need to be lubricated.
  • Page 14: How To Move

    How to Move...
  • Page 15: Important Electrical Information

    Important Electrical Information WARNING: This treadmill requires a right power source in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any incorrect power source could cause significant damage to the equipment and or user. GROUNDING METHODS: This product must be grounded.
  • Page 16: Window Display

    Operation Guide Window Display : Display current distance. : Displays the time elapsed. Display starts at 0:00.When time elapsed reaches the maximum, the machine will stop. : Displays steps that the user has walked. TIME/ STEPS share the same window, and will show in turn every 5 seconds. : Display the consumed calories.
  • Page 17 Console Button Function :Adjust the volume of Bluetooth audio. Short press to increase the volume. Long press to decrease the volume. 2. MODE: Press this button to choose among time count down, distance count down, and calories count down. Press “START/PAUSE” button to get started. 2.1 TIME COUNT DOWN Under standby mode, press MODE button till TIME window shows default value.
  • Page 18 5. INCLINE (-3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 10): Slope quick button. Press these buttons to choose desired slope quickly. : Press this button to start or pause, after pause, press this button again to restart. START/ PAUSE 7.
  • Page 19 SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE SPEED SLOPE 11.2 User Self-setting Programs -Under standby mode, press “PROG.” button till the window shows U1, U2, U3, U4, or U5. -Select any user, press “SPEED-”...
  • Page 20 11.3 Heart Rate Control Programs To use this program, you will need a Bluetooth wireless wearable device to test heart rate value, we will suggest a Bluetooth chest belt for more accurate test. Please read manual part of “How to connect with wireless wearable devices to read heart rate” , and connect your Bluetooth wireless wearable device with treadmill first before start HP programs.
  • Page 21 11.4 Body Fat Test A. Under standby mode, press “PROG.” button till the window shows FAT, set F-1 sex with “SPEED-” “SPEED+” buttons or “INCLINE-” “INCLINE+” B. Press “MODE” button to confirm and enter into the setting of F-2(Age), F-3(Height), and F-4(Weight).
  • Page 22: Bluetooth Audio

    Bluetooth Audio: Enable the Bluetooth of your device, search for the Bluetooth name start with “MARATHON-A” for connection, display the audio of your device from the speaker of the machine. You can adjust the volume of the machine from your device volume control button, or you can adjust the volume of the machine from the volume control button of the treadmill.
  • Page 23 Lubrication Remind Function: This machine has lubrication remind function. After every total running distance of 187 mile (300km), your treadmill needs to be maintained with oil. The system will remind with sound for every 10 seconds, and window will show “OIL”. This means that your treadmill needs to be lubricated with oil.
  • Page 24: Troubleshooting

    Troubleshooting Problem Possible Cause Suggested Action Not plugged in Plug cord into outlet Treadmill will not start Safety Key not inserted and Insert Safety Key the window shows “---- ----” Running belt tension not Tighten the adjustment bolts on Running belt not centered correct on the left or right the left and right side of the rear sides of the running board...
  • Page 25 Check motor wires to see if the motor is well connected. If the The motor wire is not well wires have been punctured or connected or the motor is damaged or loose, you will need damaged. to replace or re-fix the wires. If the problem is not rectified, E06-E09 you may need to replace the...
  • Page 26: Maintenance & Care

    Maintenance & Care General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the running board and belt.
  • Page 27: Lubricating The Treadmill

    Lubricating the Treadmill IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the running board and belt be inspected regularly.
  • Page 28: Exploded Drawing

    Exploded Drawing...
  • Page 30: Parts List

    Parts List Part No. Description Remarks Part No. Description Remarks Bottom Frame Foot Pad Main Frame Handle Bar Foam-R Lifting Assembly Handle Bar Foam-L Rotating Assembly Bearing Wheel Right Upright Tube Side Rail Console Assembly Left Upright Tube Blockage Console Assembly Side Rail Top Foam Handle Bar Assembly Running Board Foam...
  • Page 31 Part No. Description Remarks Part No. Description Remarks PCB&Control Board Connection Wire-Middle PCB&Control Board Knob Set Connection Wire-Lower PCB&Control Board Incline/Speed Quick Connection Wire-Upper Button Board PCB Control Board Key Board Connection Wire Display Board Display Board Connection Wire Motor USB Socket Lifting Motor Folding Switch Set...
  • Page 32 3040200375 V1.0...
