Profire Energy PF2200 UI CARD Replacement Manual

PF2200 UI CARD
REPLACEMENT GUIDE
WARNING
• Explosion Hazard. Do not disconnect while
the circuit is live or unless the area is free of
ignitible concentrations.
• Explosion Hazard. Do not remove or replace
fuses unless power has been disconnected or
the area is free of ignitible concentrations.
OVERVIEW
This document contains step-by-step instructions to replace the Profire PF2200 UI Card.

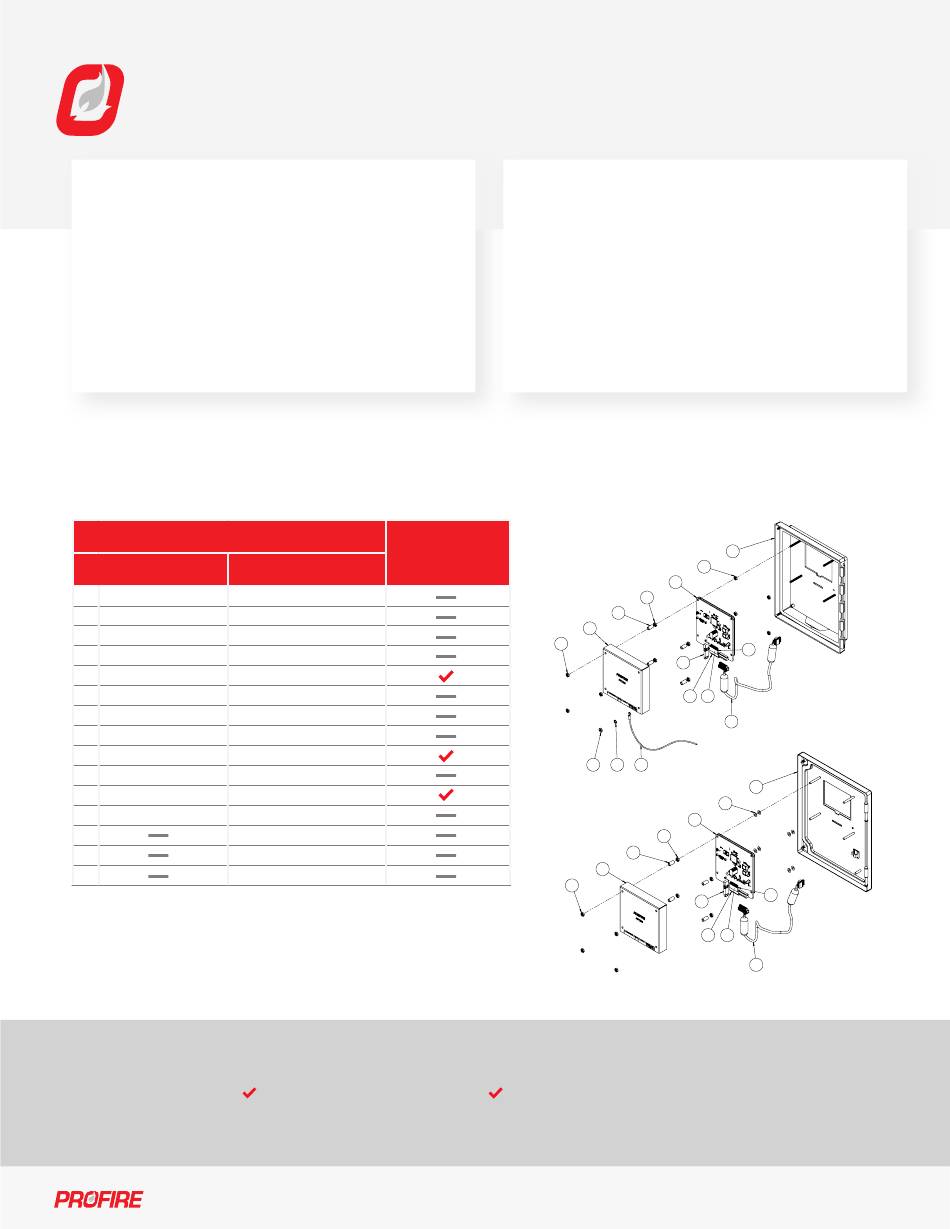

COMPONENTS
METAL DOOR POLYCARBONATE DOOR
A
4 x Serrated Locknuts 3 x Serrated Locknuts
B
1 x UI Cover 1 x UI Cover
C 4 x White Nylon Spacers 4 x White Nylon Spacers
D 4 x Serrated Locknuts 4 x Serrated Locknuts
E 1 x UI Card 1 x UI Card
F 8 x Flat Washer 4 x Serrated Locknuts
G 1 x Enclosure Door 1 x Enclosure Door
H 1 x PFN Cable 1 x PFN Cable
I 1 x USB Flash Drive 1 x USB Flash Drive
J 1 x Keypad Ribbon Cable 1 x Keypad Ribbon Cable
K 1 x Keypad Cable Sticker 1 x Keypad Cable Sticker
L 1 x Keypad Cable Spacer 1 x Keypad Cable Spacer
M 1 x Hex-Nut for ground wire
N
1 x Internal-Tooth Lock Washer
O
1 x Ground Wire
BEFORE YOU GO TO SITE
WWW.PROFIREENERGY.COM | 855.PRO.FIRE | SUPPORT@PROFIREENERGY.COM
INCLUDED WITH
REPLACEMENT CARD
Check that all components listed in the table
are present in the box and that you have
any others that you may need to complete
the repair.
AVERTISSEMENT
• Risque d'Explosion. Ne pas débrancher
pendant que le circuit est sous tension ou à
moins que l'emplacement ne soit exempt de
concentrations inflammables.
• Risque d'Explosion. Ne pas retirer ni remplac-
er les fusibles ni à moins que l'alimentation
n'ait été coupée ou que l'emplacement ne
soit exempt de concentrations inflammables.
Polycarbonate Door
E
D
C
B
A
I
J
M N O
Metal Door
E
D
C
B
A
Ensure that the included USB stick is loaded
with the desired firmware version, in the
event that a firmware update is required
after installing the new UI Card.
G
F
L
K
H
G
F
L
I
J
K
H
DOC-001123 v1.3 WEB
