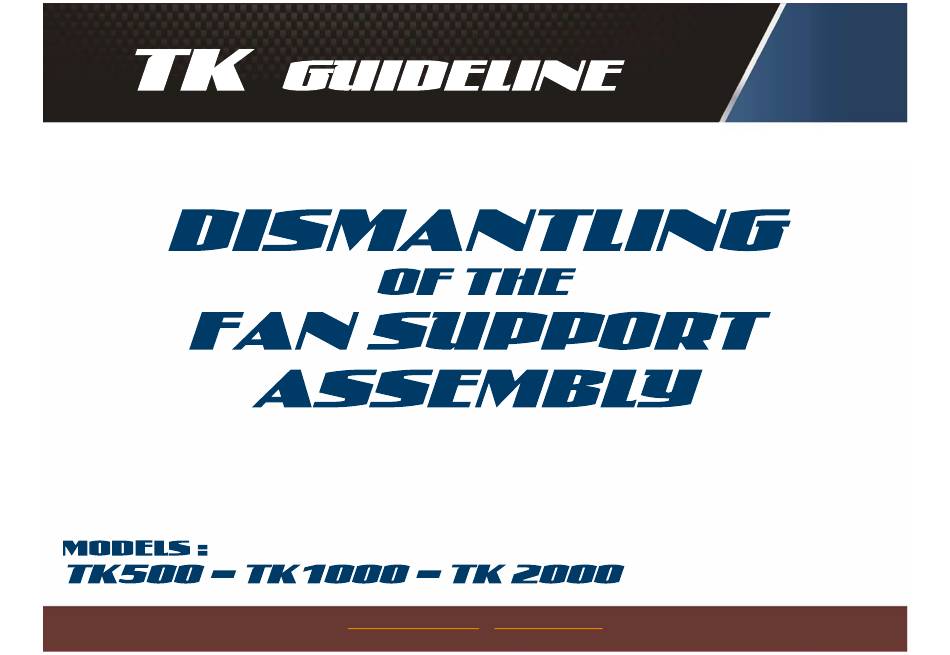

- Page 1 www.tecoonline.com www.tecous.com...
- Page 2 WARNING! Installation may be carried out only by qualified persons. If this are not performed properly, they can cause electric shock, burns and fires EQUIPMENT Big Crosshead Screwdriver INITIAL STEP Turn OFF the chiller and let it OFF for twenty minutes before proceeding Disconnect the chiller from power supply Never touch internal parts or dismount chiller when it is connected...
- Page 3 Remove the conveyor from the top part of the chiller. You can see the metal black grid and the red fan support. www.tecoonline.com www.tecous.com...
- Page 4 Remove the air filter grid and air filter from their position. www.tecoonline.com www.tecous.com...
- Page 5 Using the screw-driver, remove the 4 INOX screws indicated in the picture here below. www.tecoonline.com www.tecous.com...
- Page 6 Remove the red fan support lifting it up from the bottom edge. Leave it on the metal cover, as you can see in the picture. www.tecoonline.com www.tecous.com...
- Page 7 To place back the fan support assembly, in first reconnect all connectors. Then take the fan support and fix it at the bottom part of chiller. Attention: the front panel side must be insert in the aluminum profile! www.tecoonline.com www.tecous.com...
- Page 8 Rebuild the top part of the chiller following the indicated sequence: 4 INOX screw (fix the fan support on the metal cover) Conveyor Air filter Air filter grid www.tecoonline.com www.tecous.com...
