THOMSON 21MG15ET User Manual

THOMSON 21MG15ET User Manual

4/3 format
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

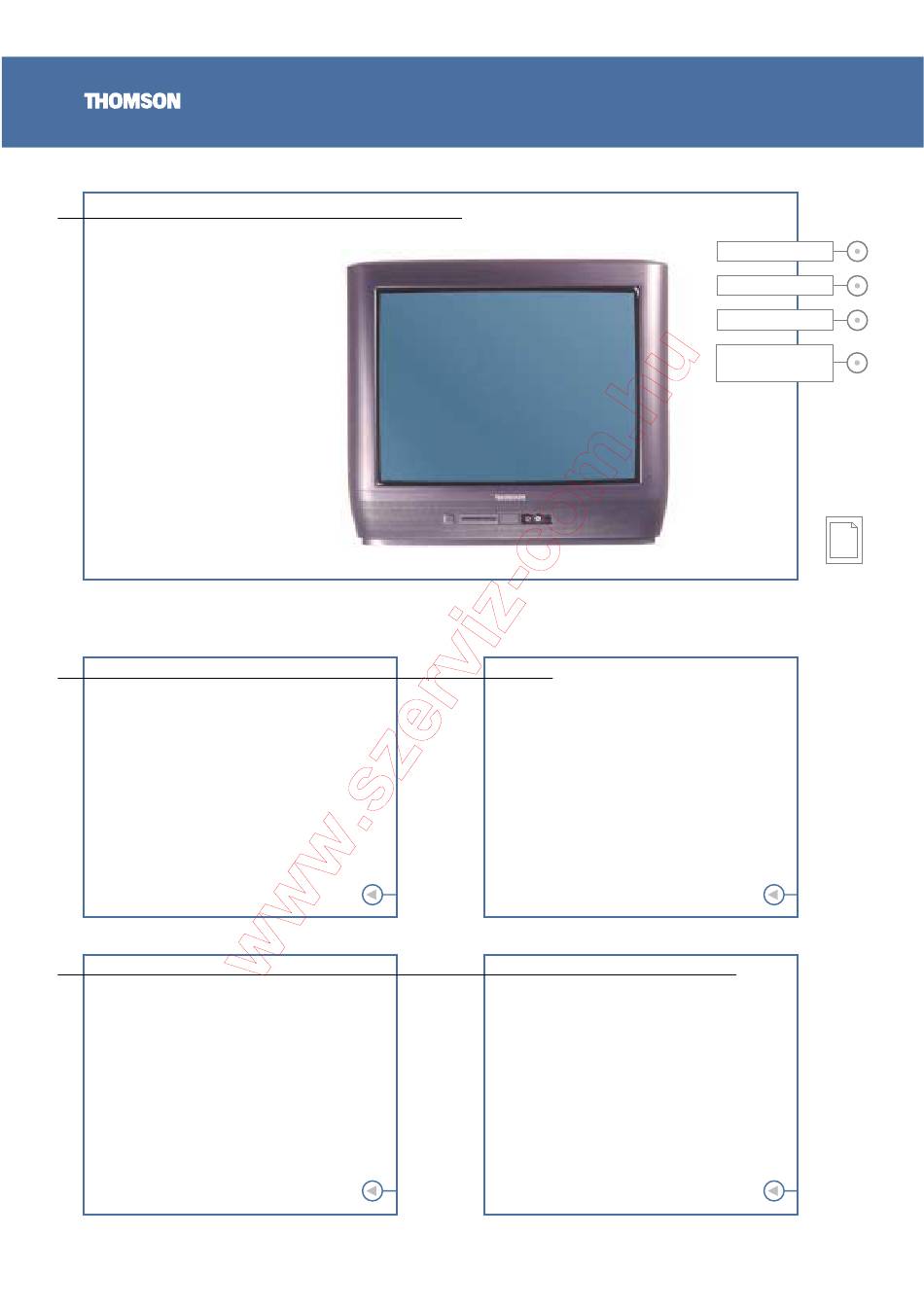

21MG15ET
television set 4/3 format
Chassis code TX807C
50 Hz technology
21 inches - 4/3 format
Black Matrix processing
METAL mask
Mono sound
6 W
Built-in Teletext
Standard : PAL / SECAM
NTSC via SCART connector
Norms : BGIDKK'
NAVILIGHT system
21 inches tube - 4/3 format
Black Matrix processing for optimal contrast
METAL mask
Total tube size : 21 inches diagonal
Picture size : 18 inches diagonal
S-VHS
Standard : PAL / SECAM / NTSC via Video
Norms : BGIDKK'
Fastext/Videotext : 1 page
special features
Automatically switches to standby mode
when no signal is present after 5 minutes
Child lock
NAVILIGHT system
Memorize up to 99 channels + 1 AV channel
Frequency synthesis tuner
Compatible with cable networks
8 MHz hyperband
RCT100 remote control
sound
Mono sound
Power : 6 W music
1 speaker medium
connectors / general remarks
1 antenna connector
Front or side :Headphone jack (3,5 mm)
cinches in : 1 Audio/1 Video
Rear :1 SCART connector
Power supply : 190 - 264 V; 50/60 Hz
Consumption : 50 W/h - in stand-by mode 4 W/h
Weight : 22 kg
Dimensions (W x H x D) : 526 x 467 x 475 mm
sound
special features
connectors /
general remarks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21MG15ET and is the answer not in the manual?

Questions and answers

Related Manuals for THOMSON 21MG15ET

Summary of Contents for THOMSON 21MG15ET

  • Page 1 21MG15ET television set 4/3 format image Chassis code TX807C 50 Hz technology sound 21 inches - 4/3 format special features Black Matrix processing METAL mask connectors / general remarks Mono sound Built-in Teletext Standard : PAL / SECAM NTSC via SCART connector...

  • Page 3: About This Manual

    In the following cases, we recommend that About this manual you pull out the mains connector: During a thunderstorm. In such a case, it This manual is common to several TV is advisable that you also disconnect the TV models. Therefore, the model you bought set from the aerial socket.
  • Page 4 Set-up Batteries (LR 06-AA) insertion differs To set up your TV set, follow the instructions according to the type of your remote control. on this page before you continue with the channel set-up procedure described on page 1. Put the batteries in the remote control unit. Please respect the environment and prevailing regulations.
  • Page 5 Remote Controls: Models 2100 and 100 Press the TV key to operate your TV set (model 2100 only). Switching the TV set on standby. - Personal Adjustments ( - Timer ( Info - Display of channel, stand-by time / list - Selection of the sound type text (Sound 1, Sound 2, Sound 3) in...
  • Page 6 Remote Controls: Models 311 - 312 - 313 - 314 Switching the TV set on standby. - Videotext keys. - Personal Adjustments ( - Timer ( - Display of channel, stand-by time - Selection of the sound type (Sound 1, Sound 2, Sound 3) in Dual, Nicam and AV( Directional keys Up/Down, Left/Right for selection and...

  • Page 7: Automatic Channel Setup

    carried out either through channels (CH/CC) About the TV set or through frequencies (MHz). • Select the type of wished-for set-up through Prior to enjoying your TV set, you'll have to the directional Left/Right keys. set it up, i.e. to find and store the channels, The set-up carried out through Frequency which may be received in your area.

  • Page 8: Manual Channel Set-Up

    used for videotext: Manual Channel Set-up 1: Western Europe 2: Eastern Europe With the manual set-up 3: Greek, Turkish 1. Display the menu by pressing a number of 4: Arab times on the remote control menu key: - twice for the mono TV sets. 10.

  • Page 9: Daily Use

    How to programme a switch-off? Daily use Press on the Green key, then using the Left/Right keys, adjust on the screen the How to switch on the set? wished-for duration before the switching-off With the On/Off-button fitted on the set. of the TV set (by intervals of 10 minutes up When the red LED is lit, the TV set has to 4 hours).

  • Page 10: Access Control

    The Videotext Access control You may want to programme an access code How to use Videotext? to the TV set. (If included) Press the key text to display the Summary To active the lock: (page 100). - Press a number of times on the menu key to Calling up a page display the window: Enter the 3 digits of the number (e.g.
  • Page 11 Connections The scart cable (1) The scart cable allows you to connect a VCR or camcorder (VHS, 8 mm,S-VHS or Hi-8), a Canal + decoder, a video game machine or devices supplying a RGB signal. You may also connect a digital decoder cable/earth/satellite, an analog satellite receiver or a DVD player.

  • Page 12: Video Recorder Keys

    (model 2100 only) To control your VCR Programming the remote control unit to control a video recorder. 1 - Press the VCR key. 2 - Hold the MENU key down and type one of the 3-digit codes corresponding to the brand of your VCR (see table on the following page).
  • Page 13 124,125,126,127,128,129 PANASONIC 108,109,162 PHILIPS 161,162,163,164,165,166 RADIOLA 161,162,163,164,165,166 SABA 101,102,112,153,155,156,157,158 SAMSUNG SANYO 119,120,121 SCHNEIDER 161,162,163,164,165,166 SHARP 131,132 SONY 115,116,117,118 TELEAVIA 101,112,156,155,102 TELEFUNKEN 101,102,112,156,155,159 THOMSON 101,102,112,154,156,157,158 TOSHIBA 110,111,114 TX807C / CS / GB - BEI / RDG - Le 05 01 2000...
  • Page 14 LIST OF ABBREVIATIONS - LISTE DES ABREVIATIONS - ABKÜRZUNGEN LISTA DELLE ABBREVIAZIONI - LISTA DE ABREVIACIONES BEAM CURRENT LIMITING INFORMATION BLACK_I BLACK CURRENT INPUT B / B’ BLUE SIGNAL TO VIDEO AMPLIFIER CVBS COMPOSITE VIDEO BASE BAND SIGNAL DEGAUSS DEGAUSS SIGNAL DEG-COIL DEGAUSS COIL FAULT...
  • Page 15 INTEGRATED CIRCUITS AND TRANSISTORS OUTLINE - CIRCUITS INTEGRES ET TRANSISTORS INTEGRIERTE SCHALTUNGEN UND TRANSISTOREN - CIRCUITI INTEGRATI TRANSISTOR CIRCUITOS INTEGRADOS Y TRANSISTORES STV5348D MSP3415D-P0 TDA8842 TMP47P1637VN STV8225 TDA9351N2 SAA5281ZP/E TDA9367N1 TDA 7267 STV8130 TDA9302H TDA7253 ST24W04 MC7805/ACT BC 337 TDA 9320H M22W04 TDA7263 78L09...
  • Page 16 EACEM - SECTION CODES COMMON PICTURE-RELATED DEFECT CODES ANTENNA SECTION LCD SECTION SIGNAL PROCESSING (ANALOG) LAMP/FLASH SECTION MECHANICAL ELECTRICAL BATTERY CHARGE VIDEO PROCESSING/ANALOG WORN OUT (OR GENERAL MECHANICAL DEFECT) DEFECTIVE ELECTRICAL COMPONENT/MODULE CLOCK/TIMER SECTION VIDEO PROCESSING/DIGITAL MISOPERATING BURNT, ARCING, MISSING PIXELS COLOUR PROCESSING/ANALOG VIEWFINDER DIRTY, CLOGGED...
  • Page 17 INTEGRATED CIRCUITS BLOCK DIAGRAMS - SYNOPTIQUES INTERNES DES CIRCUITS INTEGRES - INTEGRIERTE SCHALTUNGEN BLOCKSCHALTBILDER - SCHEMA A BLOCCHI DEL CIRCUITI INTEGRATI - VISTA INTERNA DE LOS CIRCUITOS INTEGRADOS TDA9351N1 MICROPROCESSOR MSP 3415D DEEMPHASIS MULTISTANDARD SOUND PROCESSOR SOUND TRAP TUNER AGC +3,3V XT AL_OUT XT AL_IN...
  • Page 18 LOCATION OF CONTROLS - EMPLACEMENT DES REGLAGES - SERVICE LAGEPLAN - POSIZIONE REGULATORI DI SERVIZIO - SITUACIÓN DE LOS AJUSTES BJ005 BJ006 BQ012 GK001 SK004 SK003 SK001 SK002 GE001 BV004 BR001 SP005 BS002 BS001 BS003 BP020 DP004 BP002 LP002 BP001 DP003 BP074 DP002...
  • Page 19 ADJUSTMENTS - REGLAGES - EINSTELLUNGEN - REGOLAZIONE - AJUSTES SERVICE-MODE SERVICE-MODE Der Service-Mode wird für den Geräteabgleich benötigt. Alle Einstellungen Tube V Cut-off erfolgen mit der Fernbedienung (bis auf Fokuseinstellung und Il Service-Mode è necessario per l’allineamento dell’apparecchio. Tutte le Peak white pattern 10"...
  • Page 20 ALIGNMENT PROCEDURE - PROCESSUS DE REGLAGES - ABGLEICH - VISUALIZZAZIONE DEL VALORE DI REGOLAZIONE - PROCEDIMIENTO DE ALINEACION SET-UP LINES GEOMETRY LINES* VIDEO LINES IF LINES VIDEO PROCESSOR LINES 0-0F 0-FF ID 00.07 0-3F 0-0F 0-0F 0-3F BLORS* 0-0F SYN0 0-FF INIT 0-3F...
  • Page 21 VHF / UHF TUNER CTT5010 CH29 RH11 RH12 CH07 TUA6010X IH70 TH01 CH14 CH20 S595TR DH02 100P 0.75P LH10 CH04 DH05 BB535 DH06 LH05 LH06 LH08 LH04 LH01 LH02 100P BB535 BB535 RH14 CH13 CH21 LH09 100P CH24 LH11 DH03 RH15 CH12 RH06...
  • Page 22 COMPLETE PCB DIAGRAM - SCHEMA PLATINE PRINCIPALE EQUIPEE - SCHALTUNG LEITERPLATTE KPL - SCHEMA PIASTRA COMPLETA - ESQUEMA PLATINA EQUIPADA DEG.COIL RP002 TP071 CP050 18R0 BCR185 8.5 (0.5) BP002 PF_MUTE (AP) RP072 -3.2 12.9 (0.5) CP003 10K0 (-1.7) 3.2 (0) TP070 68N0 BC846B...
  • Page 23 COMPLETE PCB DIAGRAM - SCHEMA PLATINE PRINCIPALE EQUIPEE - SCHALTUNG LEITERPLATTE KPL - SCHEMA PIASTRA COMPLETA - ESQUEMA PLATINA EQUIPADA TX807 C - Mono JV020 CR021 CR020 MAIN JV150 100P0 100P0 RR026 JV100 BR002 27R0 RR019 CR009 RR020 RR021 DR001 +8VOS +8VOS +8VOS...
  • Page 24 VIDEO AMPLIFIER BOARD - PLATINE AMPLIFICATEURS VIDEO - VIDEOVERSTÄRKERPLATTE - PIASTRA AMPLIFICATORE VIDEO - PLATINA AMPLIFICADOR VIDEO CRT 80000.00 - CRT 80001.00 COMPONENT SIDE - CÖTE COMPOSANTS - BESTÜCKUNGSSEITE - LATO COMPONENTI - LADO COMPONENTES FOCUS CRTGND BB003 BB004 BL002 BL002A 173.5 RB001...
  • Page 25 VIDEO AMPLIFIER BOARD - PLATINE AMPLIFICATEURS VIDEO - VIDEOVERSTÄRKERPLATTE - PLATINA AMPLIFICADOR VIDEO - PIASTRA AMPLIFICATORE VIDEO CRT 80000.00 - CRT 80001.00 COMPONENT SIDE - CÖTE COMPOSANTS - BESTÜCKUNGSSEITE - LATO COMPONENTI - LADO COMPONENTES RB001 IB001 CB004 CB003 RB071 RB031 RB004 RB072...
