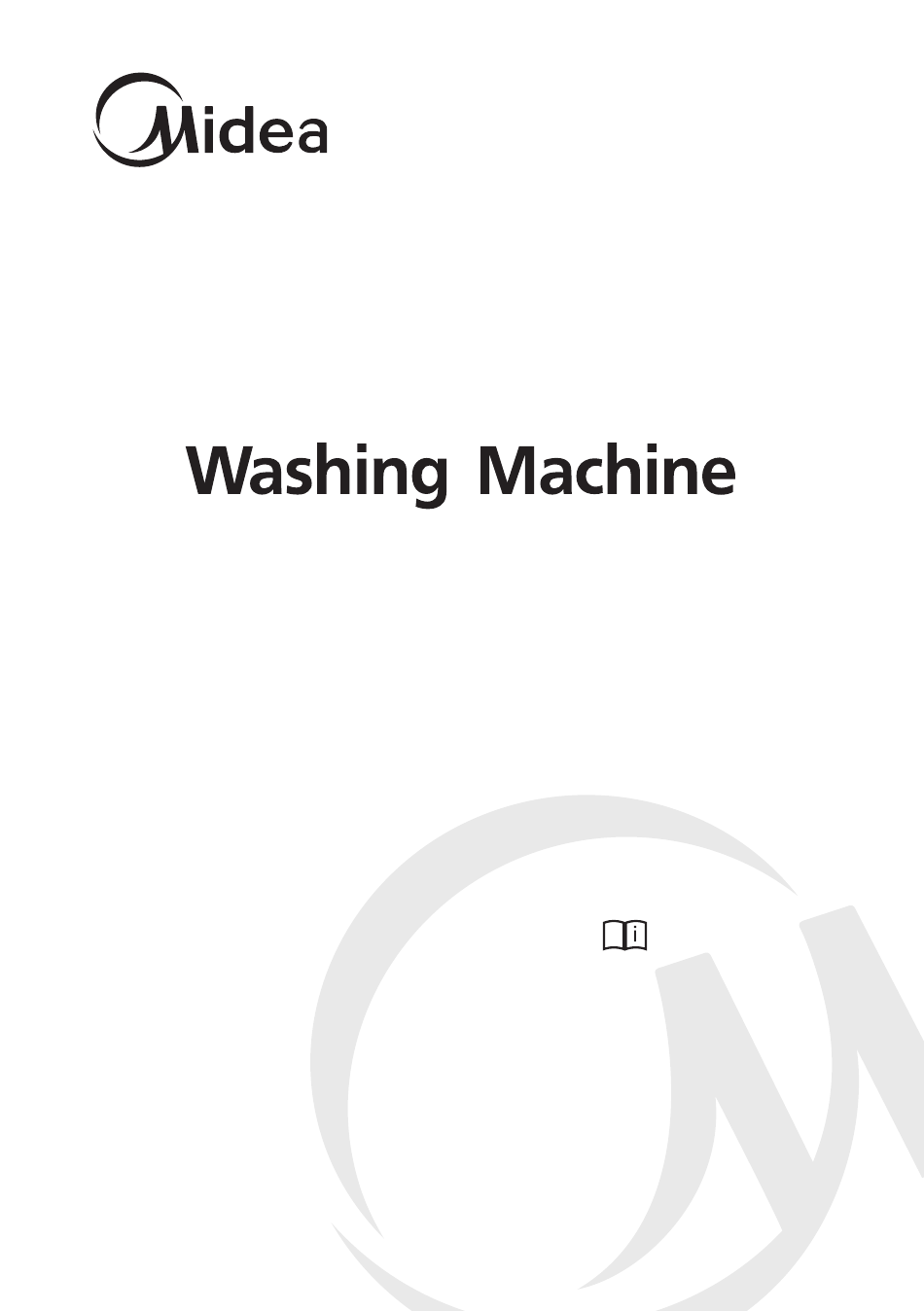

OWNER'S MANUAL
MFG10W80B/W-ES
Read This Manual
Read all instructions and explanations for the
installation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
Advertisement
Table of Contents
Related Manuals for Midea MFG10W80B-ES
Summary of Contents for Midea MFG10W80B-ES
- Page 1 OWNER’S MANUAL MFG10W80B/W-ES Read This Manual Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programmes............Option..............MAINTENANCES Cleaning and Care ..........Trouble Shooting ............ Technical Specifications ......... Product Fiche ............Built-in installation .......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. ！... - Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Installation
SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost. -
Page 6: Water Connections
SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. ！ Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off. -
Page 7: Operation And Maintenance
SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE •Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing. •Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. -
Page 8: Intended Use
SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. - Page 9 SAFETY INSTRUCTIONS Packaging/Old appliance This marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material resources.To return your used device, please use the collection systems or contact the retailer where the product was purchased.
-
Page 10: Installation
INSTALLATION Product Description Detergent Drawer Control Panel Power Plug Door Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Supply hose Supply hose hot Drain hose support Owner’s manual hole plug cold water... -
Page 11: Installation Area
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •... -
Page 12: Levelling The Washing Machine
INSTALLATION Remove transport bolts ！ Warning! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts cover caps. -
Page 13: Drain Hose
INSTALLATION Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. -
Page 14: Operation
OPERATION Quick Start Caution! • Before washing, please make sure the washing machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. -
Page 15: Before Washing
OPERATION 1. Before Washing earth terminal Main wash Softener Prewash Close door Plug in Open tap Load Add detergent Note! • Detergent need to be added in compartment I if the pre-wash function is selected. 2. Washing Select programme Select function or Power On Press remain default... -
Page 16: Before Each Washing
OPERATION Before Each Washing • The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 17: Detergent Dispenser
OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "compartment I “after selecting pre-wash function. Programme Programme Baby Care Quick 15 Wool Rapid 45 Delicate 20℃... -
Page 18: Detergent Recommendation
OPERATION Detergent Recommendation Recommended washing Washing Wash cycles Type of laundry and textile detergent temp. Heavy-duty detergent with White laundry made from bleaching agents and 40 60 Cotton, ECO 40-60, Intensive boil-proof cotton or linen optical brighteners Coloured laundry made Colour detergent without Intensive, Cotton,ECO 40-60, 20/30/... -
Page 19: Control Panel
OPERATION Control Panel 1 1 1 Note! • The chart is for reference only, Please refer to real product as standard. Power Start/Pause Product is on/off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. -
Page 20: Programmes
OPERATION Programmes Washing/Drying Load Programme Display Time (H) (kg) 1400 Quick 15 0:15 Rapid 45 0:45 20℃ 1:01 Jeans 1:45 Eco 40-60 3:35 Intensive 3:48 Rinse&Spin 0:20 Spin Only 0:12 Baby Care 1:43 Wool 1:07 Delicate 0:50 Mixed 1:20 Synthetic 3:18 Sports 1:11... - Page 21 OPERATION Programmes • The above data is for reference only, and the data may change due to different actual use conditions. • The valves given for programmes other than the ECO 40-60 programme are indicative only. • Concerning to EN 60456:2016 With (EU)No.1061/2010, The EU energy efficiency class is: A+++ Energy test program: Intensive;...
- Page 22 OPERATION 1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
- Page 23 OPERATION Programmes Programmes are available according to the laundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Rapid 45' Washing few and not very dirty clothes quickly. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
- Page 24 OPERATION Option Default Default spin speed in rpm Temp.(℃) 1200 1400 Quick 15 Cold Delay Extra Rapid 45 Delay Wash Rinse Extra 1000 1000 Delay 20℃ Rinse Extra 1000 1000 Delay Jeans Wash Rinse 1200 1400 Eco 40-60 Delay Delay Intensive Extra Delay...
- Page 25 OPERATION Delay Set the Delay function: 1. Select a programme 2.Press the Delay button to choose the time(the delaying time is 0-24 H.) Start/Pause 3.Press [ ] to commence the delay operation Delay Setting time Start On/Off Choose the Programme Cancel the Delay function: Press the [Delay] button until the display be 0H.It should be pressed before starting the programme.
- Page 26 OPERATION Child Lock To avoid mis operation by children. Temp. Speed Press [Temp.] and [Speed] On/Off Start/Pause 3 sec. till buzzer beep. Caution! • Press the two button 3sec. also to be released the function. • The “Child Lock” will lock all buttons except [On/Off]. •...
-
Page 27: Maintenance
MAINTENANCE Cleaning and Care ！ Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. -
Page 28: Cleaning The Inlet Filter
MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine. -
Page 29: Cleaning The Drain Pump Filter
MAINTENANCE Cleaning the Drain Pump Filter ！ Warning! • Be careful of the hot water! Allow detergent solution to cool down. • • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. -
Page 30: Trouble Shooting
MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck. -
Page 31: Customer Service
MAINTENANCE Customer service Spare part for your appliance are available for a minimum of 10 years. In case of questions please contact our customer service at: Warning! ！ Risk of electric shock • Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger.Only authorised specialists are allowed to carry out this repair work. - Page 33 MAINTENANCE 1) The actual energy consumption will depend on how the appliance is used. 2) The actual water consumption will depend on how the appliance is used and on the hardness of the water. 3) Delivery of the spare parts within 15 working days after having received the order. Product Data Sheet concerning (EU) 2019/2014 The product data sheet for your appliance can be found online.
-
Page 34: Built-In Installation
MAINTENANCE Built-in installation Appendix Self-tapping Self-tapping Hinges Counter magnet Spacer Fixed position screws screws paper (ST4*12) (M5*12) Tool Screw driver Automatic driver Ruler Pencil Install Steps 600mm 580mm 825mm 152.5mm Overview The door is open from left to right The door is open from right to left Preparation and assembly of the door... - Page 35 MAINTENANCE Position Paper Make the mark on the door Position Paper Position Paper Left Open Right Open Fixed position paper on the door. 35mm Drill hole on the door...
- Page 36 MAINTENANCE Installation the hinges and spacer Installation the counter magnet Installation the door ！ Warning! • When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are placed in either of the two recesses on the back of the appliance. This will help to prevent the hoses from becoming kinked or trapped.
- Page 37 Opciones...
- Page 61 MFG10W80B/W-ES...
