Pure Design Fitness PR4 Rower Owner's Manual

Hide thumbs

Advertisement

Table of Contents

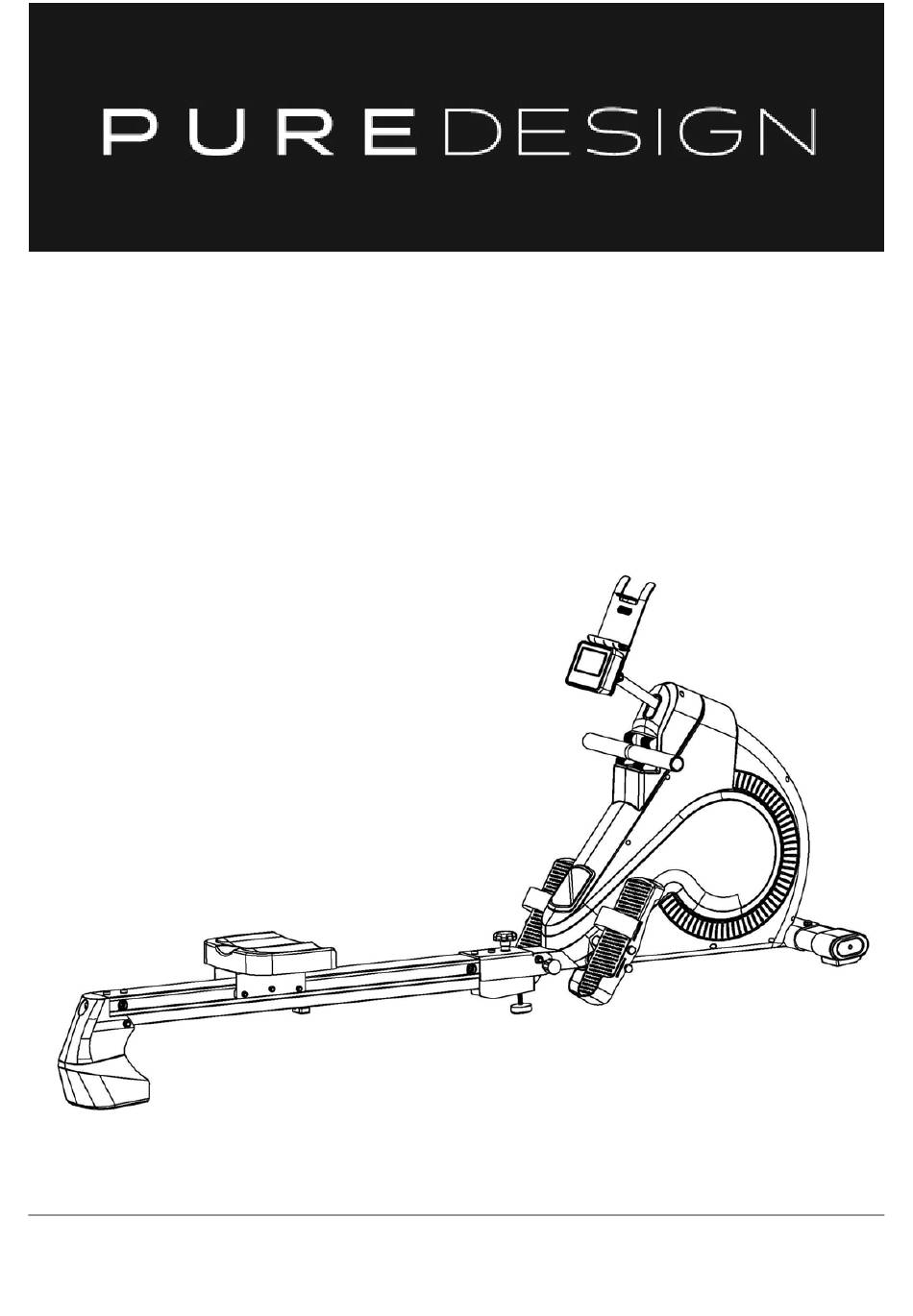

PURE DESIGN
PR4 Rower
OWNER'S MANUAL
IMPORTANT !
Please read all instructions carefully before using this product.
Retain this manual for future reference.
The specifications of this product may vary slightly from the illustrations and are subject to
change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR4 Rower and is the answer not in the manual?

Questions and answers

Related Manuals for Pure Design Fitness PR4 Rower

Summary of Contents for Pure Design Fitness PR4 Rower

  • Page 1 PURE DESIGN PR4 Rower OWNER’S MANUAL IMPORTANT ! Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are subject to change without notice.

  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE Note the following precaution before assembling or operating the machine 1、 Assemble the machine exactly as the descriptions in the instruction manual. 2、 Check all the screws, nuts and other connections before using the machine for the first time and ensure that the trainer is in the safe condition.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 5: Parts List

    NOTE: Most of the listed assembly hardware has been packaged separately, but some hardware items have been preinstalled in the identified assembly parts. In these instances, simply remove and reinstall the hardware as assembly is required. Please reference the individual assembly steps and make note of all preinstalled hardware. PARTS LIST Description Description...

  • Page 6: Assembly Instruction

    Nut M10*1 Console Flywheel square neck bolt M8X74 Belt Screw ST4.2X18 Rope Hole Plug Chain cover crash pad 1 89L/R rubber cushion IPAD holder Screw M5*25 Console bracket Axle Alloy bushing Tension belt Receiver sealing ring Adaptor Holder Nylon nut M6 ASSEMBLY INSTRUCTION Attention: Please follow these assembly instructions step by step to assemble this magnetic rowing...
  • Page 7 Step 2: A: Fix the Connected U-shape plate (11) onto the guide rail (6) well with the Screw (12)and flat washer (5). B: Connect the wire of Receiver (46) with Sensor extended wire (37), then fix the Connected U-shape plate (11) and the main frame (1) with outer hex bolt (8), flat washer (9), nylon nut (10) and spring knob (14) as shown.
  • Page 8 Step 4: A: Lock the tail boom (24) to the guide rail (6) with inner hex bolt (22), nylon nut (10), inner hex bolt (23) and flat washer (5). B: Fix the limiting base (15) to the guide rail (6) with axle for limiting base (16), flat washer (17) and cross screw (18).
  • Page 9 NOTE: When you don’t use this item, in order to put away better you can fold it like the following picture shown. When you do this please take care of your hands. A: Take out the knob (32) in the anticlockwise direction from the products. And put the knob and washer (13) together.
  • Page 10 METER INSTRUCTIONAL MANUAL As soon as the computer is connected with power supply, an acoustic signal sounds and all of the displays are shown on LCD for 2 seconds. If no button are pressed and the pedals have not been moved for approx. 4 minutes, the computer will switch to power saving mode.
  • Page 11 * If only a “P” is shown instead of pulse value, it is impossible to measure the HR. Wear the chest belt properly so that computer can detect your hear rate. Starting exercise immediately (MANUAL) Then MANUAL-->PROGRAM-->H.R.C.-->RACE-->USER is flashing with 1Hz. Press UP and DOWN to choose MANUAL and confirm by pressing ENTER.
  • Page 12 -You can adjust the level of resistance on the paddles while rowing by pressing UP and DOWN keys. The newly set level value will be shown in the profile(default value is Level 1). -Program profiles: -Press START/STOP to end exercising. All exercising value will remain.
  • Page 13 Training with competition mode (RACE) In this program, you can enjoy rowing just like an competition, while your rival is the computer. -Press UP & DOWN to select RACE and press ENTER to confirm. -Press UP & DOWN to set SPM confirm by pressing ENTER. -Press UP and DOWN to select desired rowing METERS and confirm by ENTER.
  • Page 14 As soon as one of the set values reach the preset Target, the computer will alarm with Bi-bi sound and stop. -You can adjust the level of resistance on the paddles while rowing by pressing UP and DOWN keys. The newly set level value will be shown in the profile(default value is Level 1).
  • Page 15 WaterRower 72 South Street Rydalmere NSW 2116 Phone: (02) 9898 1405 Email: dispatch@waterrower.com.au...
